Aavik SD-288 Streamer / DAC
The Aavik SD-288 series embodies our relentless commitment to sonic authenticity, bridging high-precision digital conversion with intuitive, user-centric design. By uniting streaming and DAC functionality within a single, elegant form, these units ensure that every nuance of the musical signal is preserved and presented with clarity and depth.

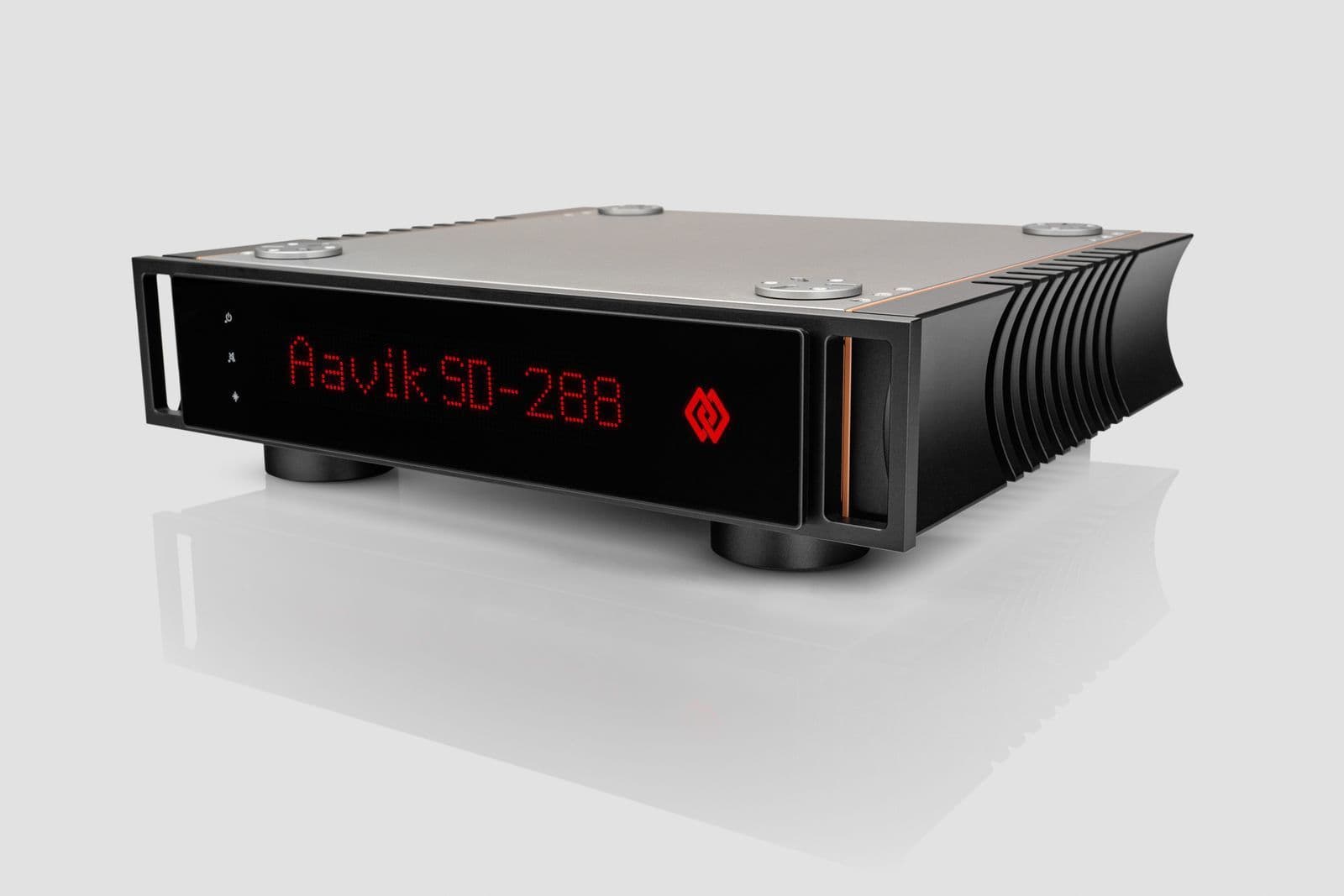

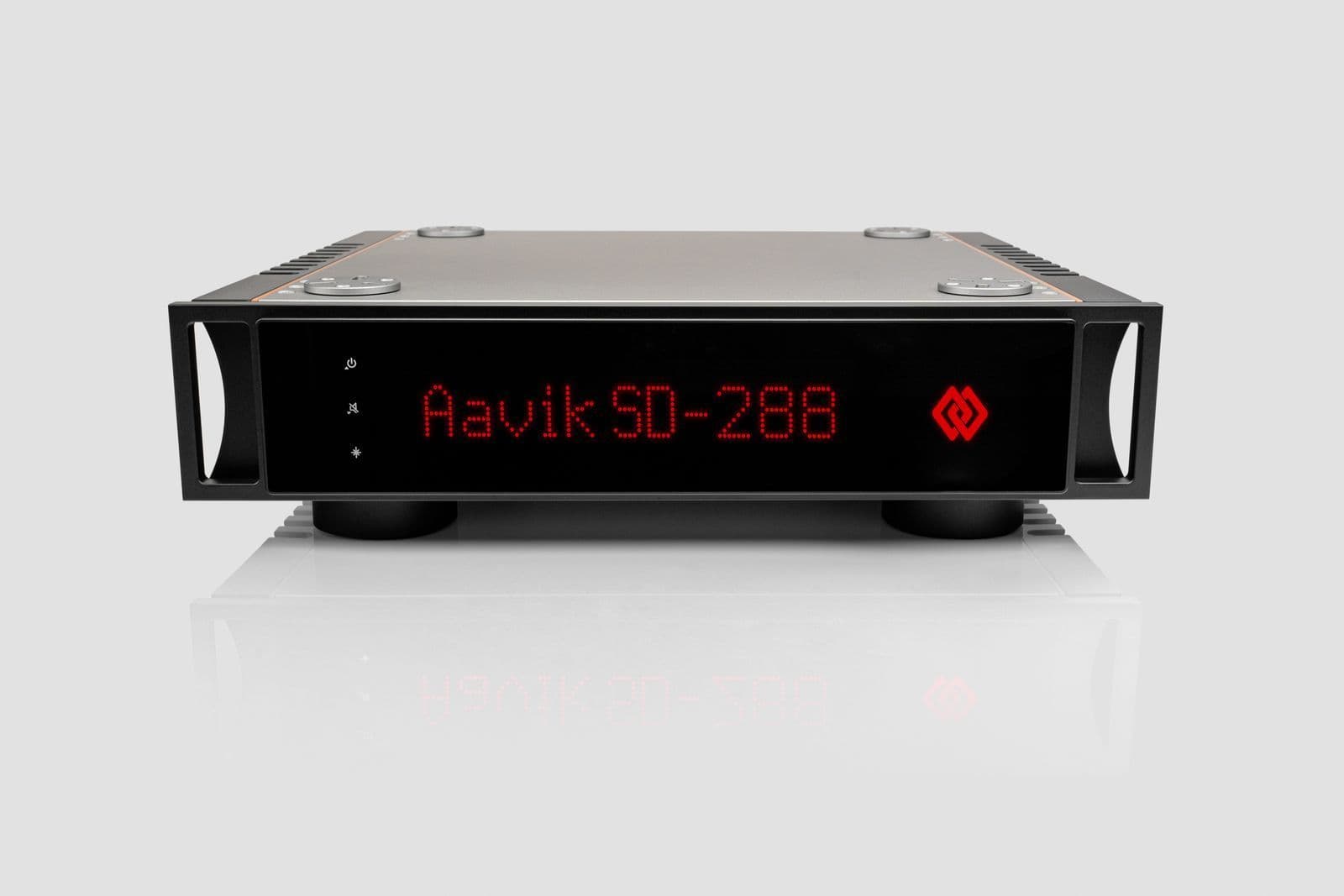

The Aavik SD-288 is a premium streamer/DAC featuring a resonant mode power supply that ensures low noise and efficient power conversion. It utilizes a scaled-down version of Aavik’s in-house-developed, non-switching Continuum Processing DAC, delivering ultra-low jitter and precise clocking for highly accurate signal processing. The cabinet design reduces mechanical vibrations and electromagnetic interference, supporting optimal performance with high-resolution audio formats. The Aavik SD-288 is ideal for audiophiles seeking refined musicality, clarity, and dynamic resolution.
Continuum DAC
The Continuum DAC takes a unique approach to digital-to-analog conversion with a fully chipless design. A custom-programmed FPGA converts all digital audio into high-resolution DSD512, a format that closely mimics analog. A specialized digital filter then smooths the signal without any switching, preserving a natural, continuous sound. A simple analog filter completes the path, revealing music with clarity, warmth, and depth. This breakthrough design powers the Aavik SD-x88 series, delivering an exceptionally lifelike listening experience.
Active Tesla coil
Effective noise killer.
The active Tesla coils are power supplied which secures a remarkable lower impedance and thus a better ability to eliminate noise. The active version is about three to four times more efficient than passive Tesla coils.
Active square Tesla coils
Impressive noise reduction.
The active square Tesla coils are embedded in our circuitry boards – one coil on the top and the counter coil on the rear side. The principle is exactly the same as the active Tesla coil and thus a great ability to eliminate noise than the passive Tesla coil.
Analog dither technology 3rd generation
A 3rd generation of the Ansuz analog dither technology has been developed. Analog dither technology originated in radar, where it ensured a stronger signal and thus greater range. The active Tesla coils send pulsating signals at precisely defined frequencies. These signals are sent in anti-phase. This significantly amplifies the musical signal and eliminates the background noise floor.
Analysis and studies have led to new options – and a lot of listening has resulted in this 3rd generation design which is a further optimization of the most effective frequencies which opens the soundscape even more and with the tiniest details when it comes to reproduction of the recordings.
Gold Anti-Aerial Resonance Coil (Gold AARC) Technology
Featured in the SD-x88 series, Gold AARC uses a dual-coil design to eliminate airborne RF noise—one coil absorbs interference while the other cancels it out. Built with a zirconium rod and silver/gold-layered copper coils, it ensures a cleaner, more refined signal path.
Specifications
Streaming: DLNA 1.5, UPnP AV 1.0

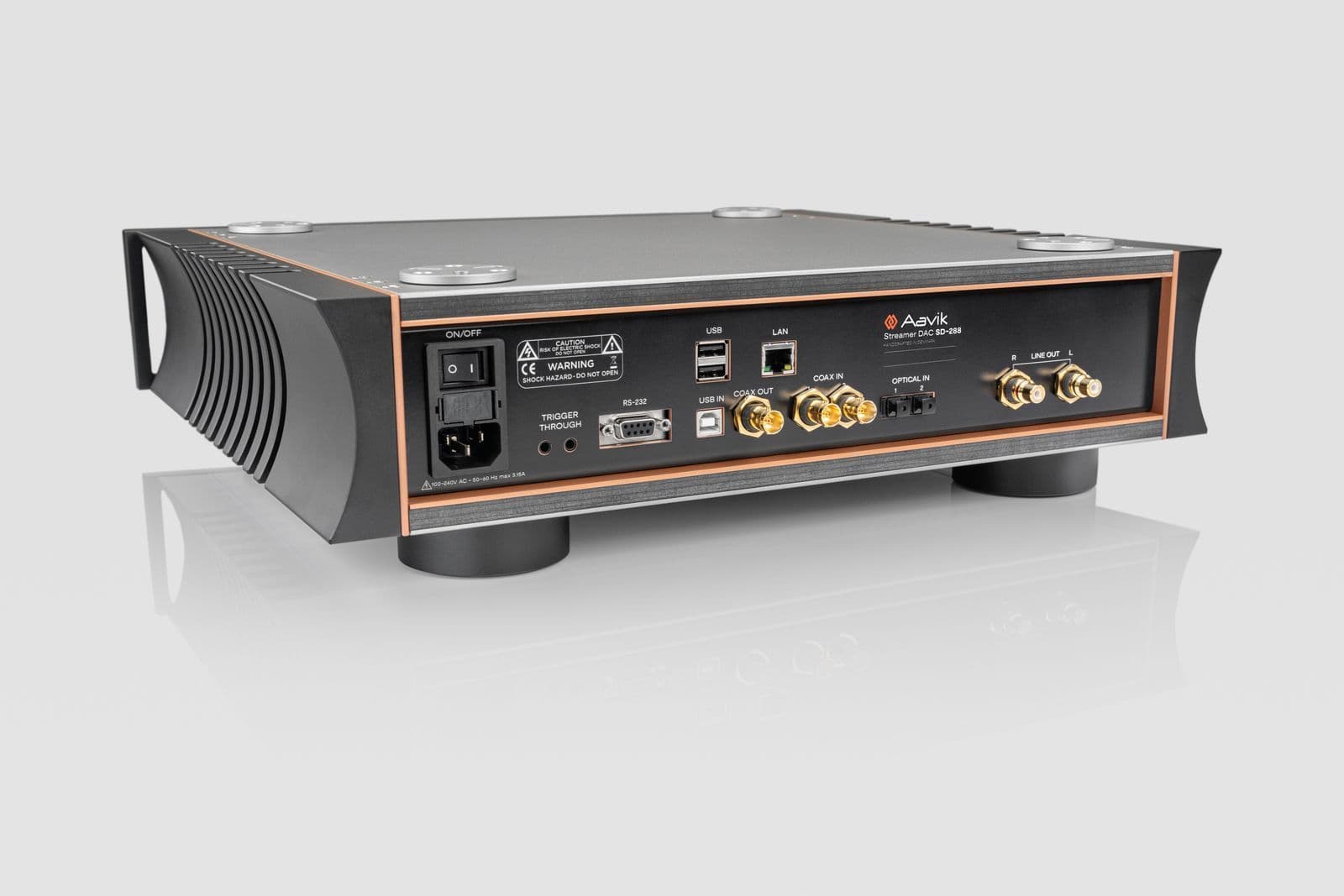

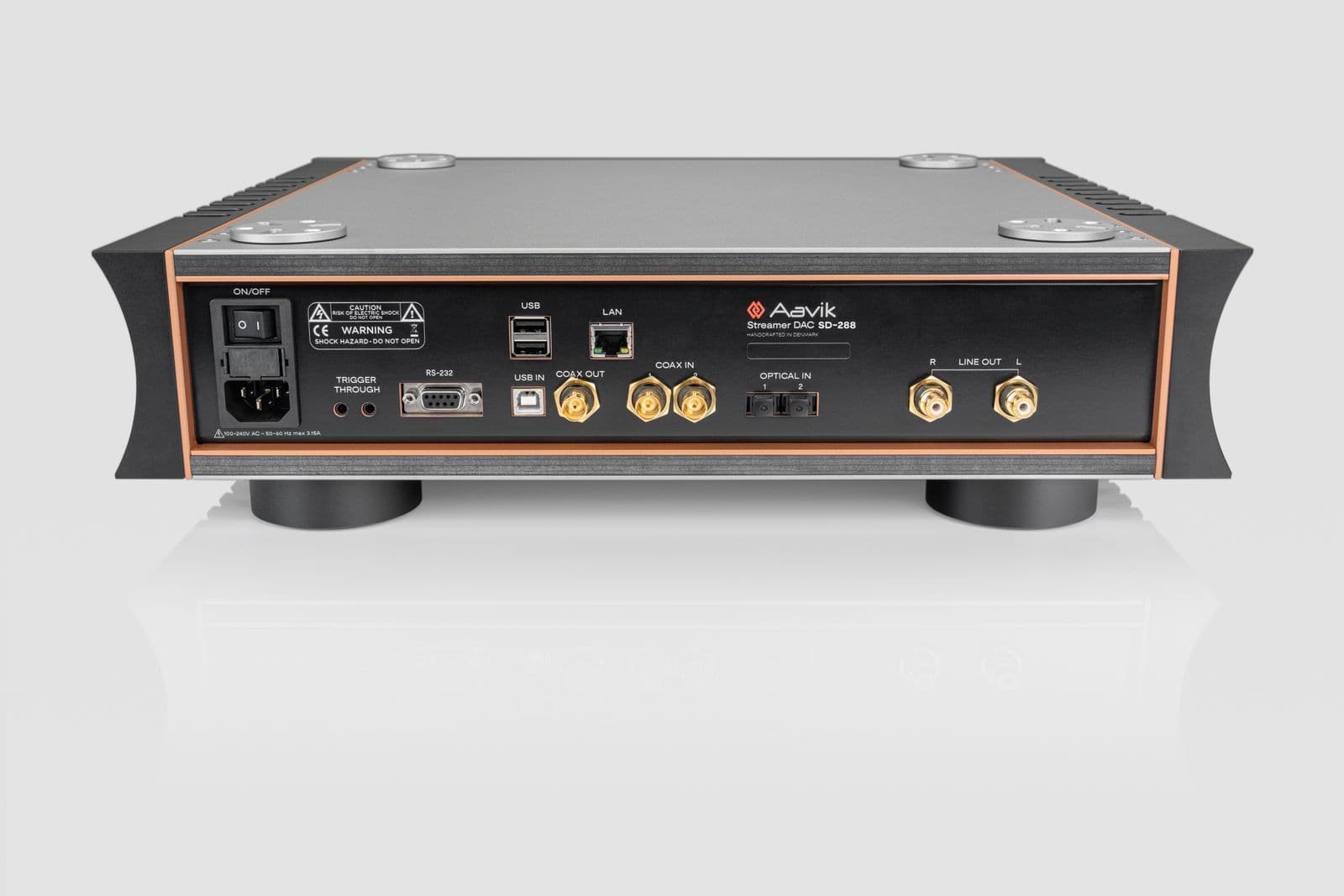

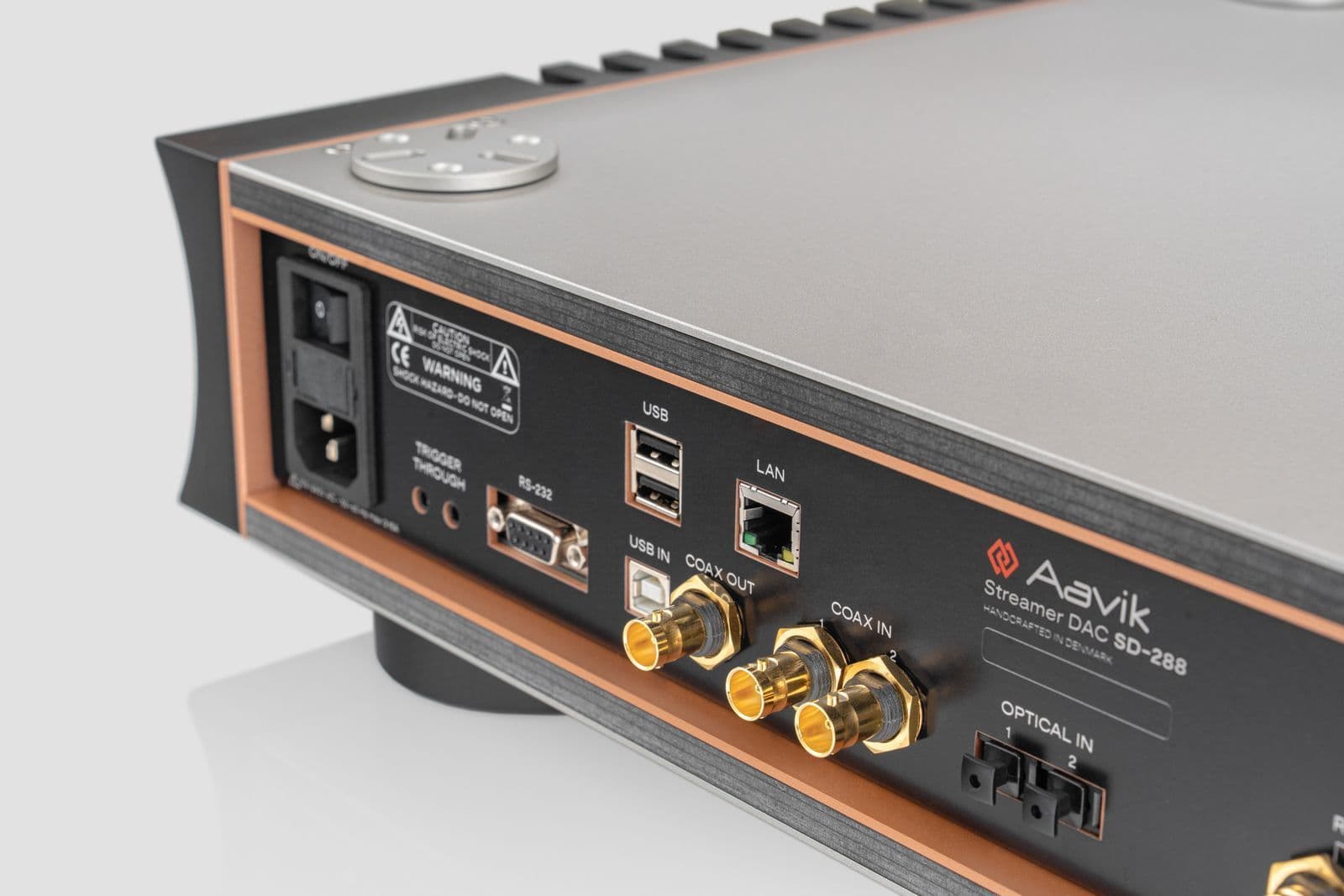

Inputs:
2 x BNC S/P-DIF (11 – 768 k-samples, 32-bit)
2 x TOSLINK optical (11 – 192 k-samples, 32-bit)
1 x USB fully isolated, UAC 2, asynchronous PCM 44–384 k-samples, 32-bit, DSD 64-256 native, DSD 64-128 in DoP mode
Outputs:
1 pair of RCA line outputs
1 x BNC S/P-DIF (11 – 768 k-samples, 32-bit)
POWER CONSUMPTION:
Standby: <1W
On: <30W
Mains voltage and current:
100-240V AC – 50-60 Hz max 3,15A
Enclosure Classification:
IP10
Aavik noise reduction:
Active Tesla Coils: 72
Active Square Tesla Coils: 144
Dither circuitry: 6
Gold Anti-Arial Resonance Coils (Gold AARC): 1
Dimensions:
440 x 430 x 116mm / 17,3 x 16,9 x 4,6 inches
Weight:
21kg / 46lbs
