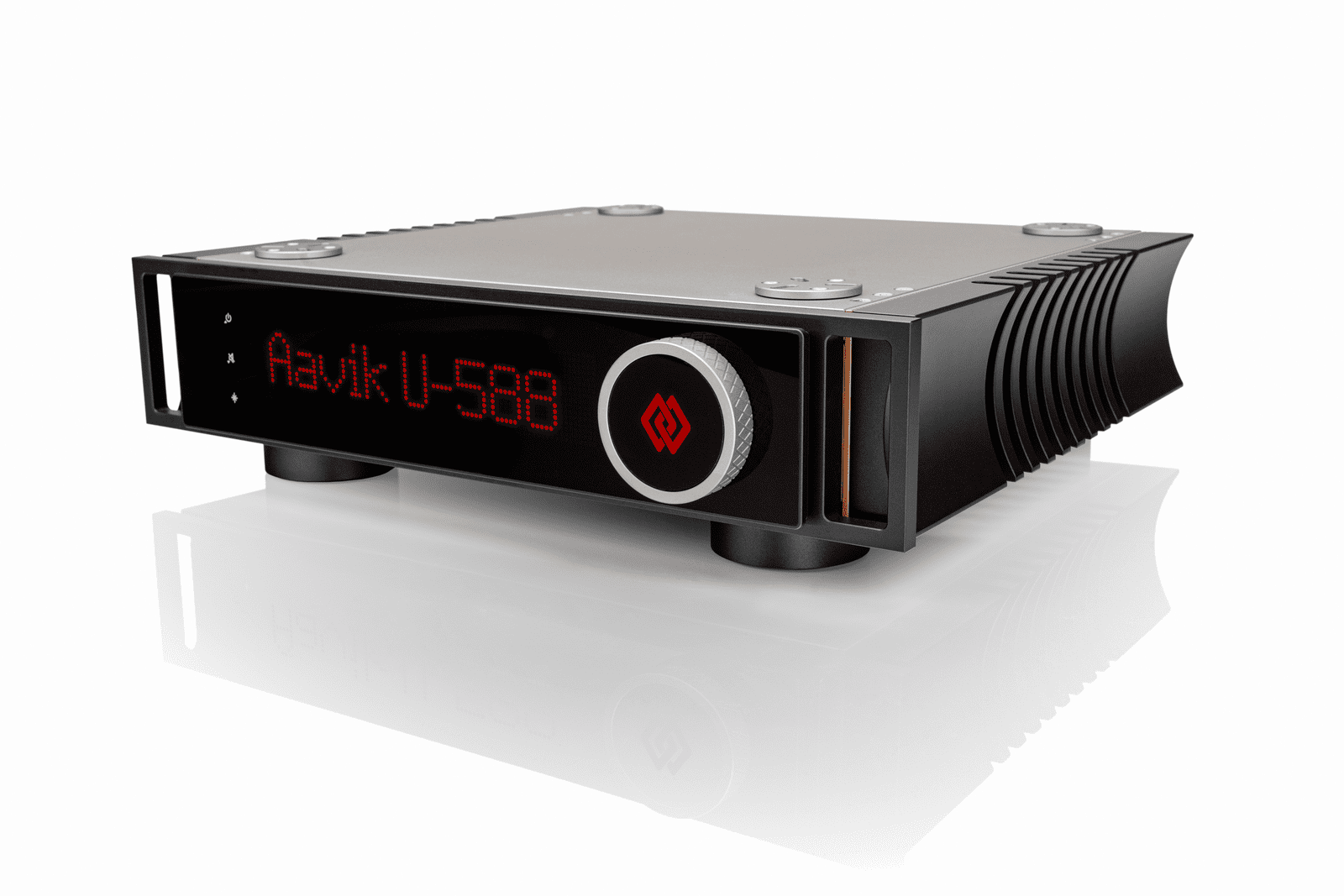

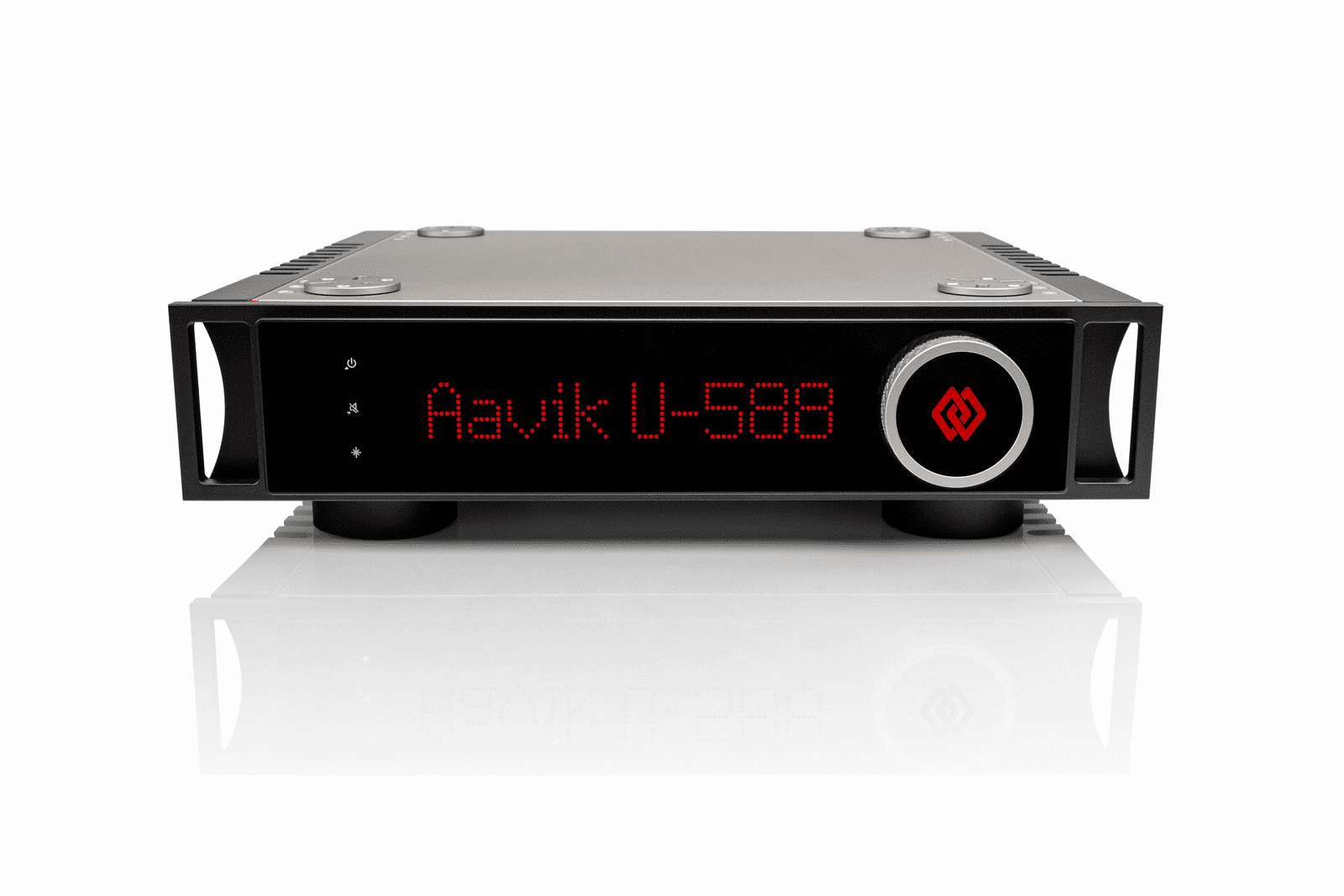

Aavik U-588 All in One Integrated Amplifier/DAC/Streamer
The Aavik U-588 stands as the pinnacle of the U-x88 series, inspired by the 880-series flagship models. Designed for discerning audiophiles, it integrates a streamer, DAC, line stage, and power amplifier into a single, impeccably crafted chassis. With cutting-edge resonance control, zero hysteresis, and low inductance, the U-588 ensures lifelike musical expression. Its innovative design redefines integrated amplifiers, delivering exceptional sound and performance.
The Aavik U-588 is a flagship integrated amplifier from the Unity series, offering 300W per channel at 8 ohms.
It features advanced resonance control and noise reduction technologies, delivering an immersive, powerful sound with exceptional clarity and musicality.
Precision, Innovation, and Integrated Audio Excellence
Aavik U-x88 range, is a ground breaking collection of all-in-one amplifiers featuring the U-188, U-288, and U-588 models. Each model draws inspiration from the acclaimed 880-series flagship models, offering state-of-the-art musical performance in a completely new design. Designed to deliver exceptional musicality, the U-x88 range combines a streamer, DAC, line stage, and power amplifier in a single meticulously engineered enclosure. Each component serves a precisely defined purpose, ensuring the lowest inductance, zero hysteresis, and exceptional resonance control to preserve the finest musical details.
The Exceptional Design Born in Two Exceptional Minds
The Aavik U-x88 series is the result of a unique collaboration between two renowned designers. Gryphon Audio’s esteemed founder, Flemming Erik Rasmussen, joined Aavik’s team in 2021, bringing over 35 years of design expertise. Merging his artistic vision with Michael Børresen’s innovative technical approach, they crafted the U-188, U-288, and U-588 amplifiers to not only look stunning but to deliver an exceptional auditory experience.
Seamless Integration for Enhanced Musical Performance
The U-x88 amplifiers deliver a fully integrated solution, combining essential functions such as streaming, DAC, line stage, and power amplification within a thoughtfully engineered enclosure. This design minimizes signal loss and enhances music reproduction, providing users with a streamlined, high-performance experience.
Advanced Technology for Superior Musical Control
Aavik U-x88 amplifiers are based on the latest version of Pascal class D amplifier technology, which features even faster UMAC switching modulation and generates lesser noise. This circuit now requires lesser filtering and has lower output impedance, which ensures greater control over connected speakers, and consistent performance across the entire musical spectrum.
Active Tesla coil
Effective noise killer.
The active Tesla coils are power supplied which secures a remarkable lower impedance and thus a better ability to eliminate noise. The active version is about three to four times more efficient than passive Tesla coils.
Active square Tesla coils
Impressive noise reduction.
The active square Tesla coils are embedded in our circuitry boards – one coil on the top and the counter coil on the rear side. The principle is exactly the same as the active Tesla coil and thus a great ability to eliminate noise than the passive Tesla coil.
Analog dither technology 3rd generation
A 3rd generation of the Ansuz analog dither technology has been developed. Analog dither technology originated in radar, where it ensured a stronger signal and thus greater range. The active Tesla coils send pulsating signals at precisely defined frequencies. These signals are sent in anti-phase. This significantly amplifies the musical signal and eliminates the background noise floor.
Analysis and studies have led to new options – and a lot of listening has resulted in this 3rd generation design which is a further optimization of the most effective frequencies which opens the soundscape even more and with the tiniest details when it comes to reproduction of the recordings.
Anti aerial resonance coil technology
Prevents airborne noise.
All cables and cable screens are acting like antennas for airborne RF noise which of course is a huge problem. The passive cable Tesla coil is wound on the external part of the cable and protects the signal from absorbing the airborne RF noise. This noise is absorbed in the Tesla coil.
As there is a voltage running in the conductor itself, and it is wound in the counter direction – this is used as the counter coil and the RF noise is then eliminated.
Specifications
Line Input:
Maximum input 4.5V RMS
Maximum input 6.5V RMS (Line 2)
Input impedance 10kohm
Digital Input:
BNC S/P-DIF: PCM 24-bit 44-192kHz and MQA
TOSLINK optical: PCM 24-bit 44-192kHz and MQA
USB UAC 2: PCM 32-bit 44-384kHz, MQA, DSD64, DSD128
Preamp Output: 1 pair of RCA outputs
Max Output: 7,5Vrms
OUTPUT IMPEDANCE: 50 ohms
SPEAKER OUTPUT:
2 x 300W 8 ohm
2 x 600W 4 ohm
AAVIK NOISE REDUCTION:
Active Tesla Coils: 108
Active Square Tesla Coils: 216
Dither circuitry: 9
Anti Areal Resonance Coils: 8
DIMENSIONS: 440 x 430 x 116mm (WxDxH)
WEIGHT: 22,8kg
