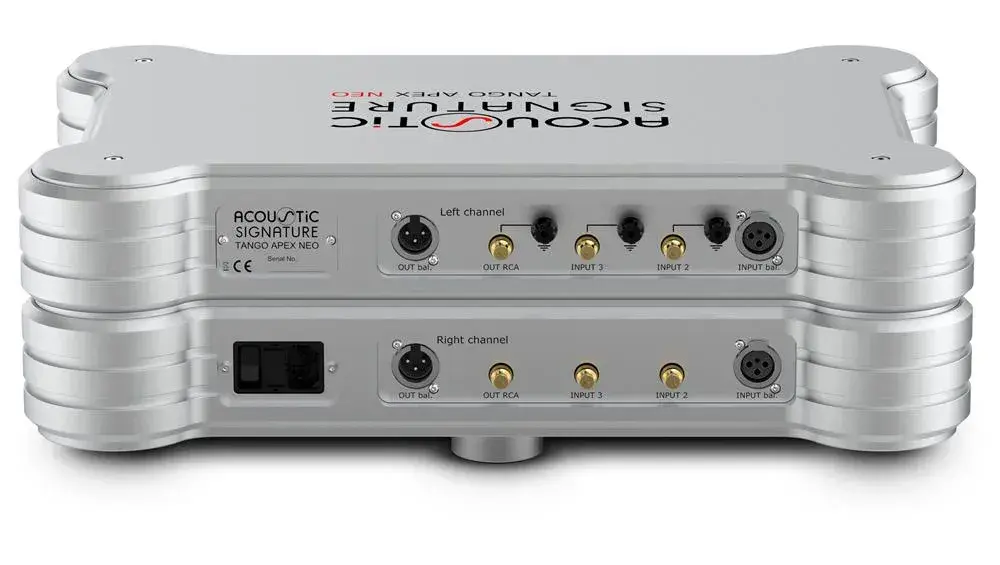

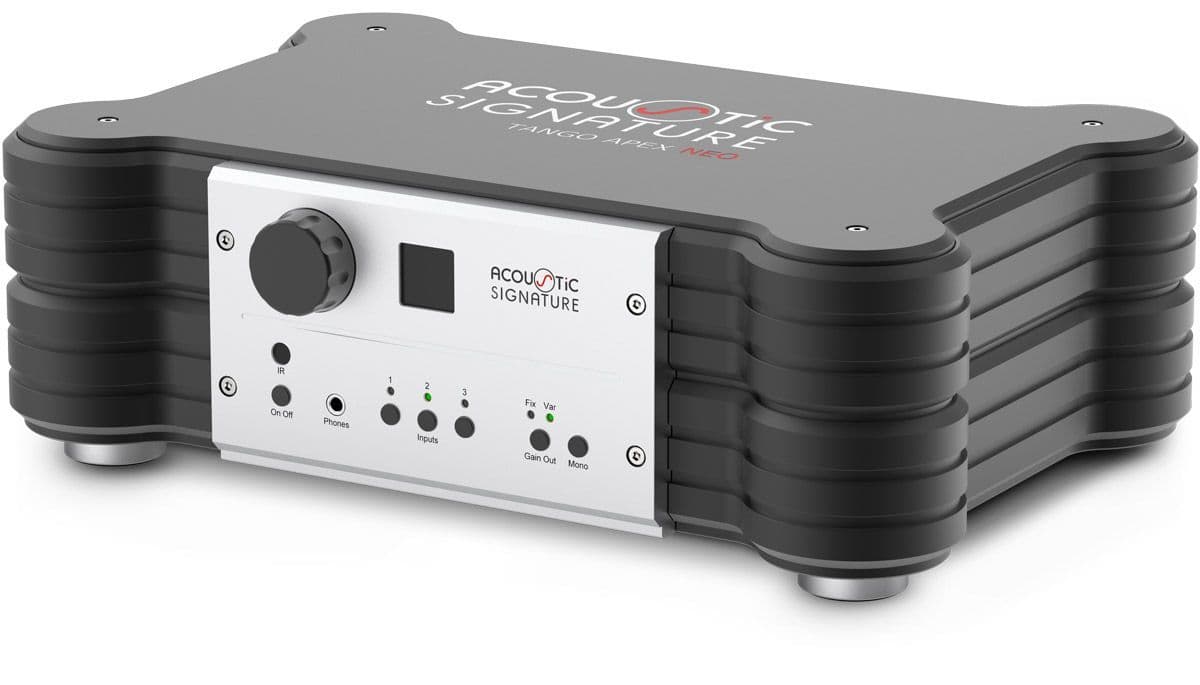

The new Tango Apex NEO is a balanced phono preamp with fully double mono construction topology.
The preamp is designed with an extra housing per channel, a dedicated Power supply per channel and a phono amp per channel.
All features of the Tango Apex NEO are remote controlled.
3 inputs: 1 x balanced XLR and 2 x unbalanced RCA
All signal switching is carried out with ultra high-quality miniature signal relays
Adjustable gain for each input (individually adjustable): 40 dB, 50 dB, 60 dB and 70 dB
Input impedance individually adjustable for each input: 47, 100, 220, 470, 1 k, 47 k and all values resulting from parallel connection.
Input capacitance: basic capacitance approx. <=100 pF, switchable capacitances for unbalanced inputs: 100 pF and 220 pF. Two capacitances can be switched on, resulting in three values (C1, C2, C1+C2) Subsonic filter: -24 dB, operating frequency 20 Hz
2 outputs: 1 x XLR and 1 x RCA, maximum output voltage 8.5 V RMS switchable as fixed output or as adjustable output (volume control in 100 steps)
Built-in headphone amplifier: maximum output voltage 8.5 V RMS
Power supply unit: separate shunt power supply with 25 VA per channel and one separate power supply with 25 VA for the microprocessor control. Digital control galvanically isolated from the analog power supply
S/N: e.g. -73 dB at 60 dB amplification
Frequency response: +-0.13 dB RIAA equalized
Distortion factor: 0.06 %
Crosstalk attenuation: better -90 dB due to double mono design
