Product Description

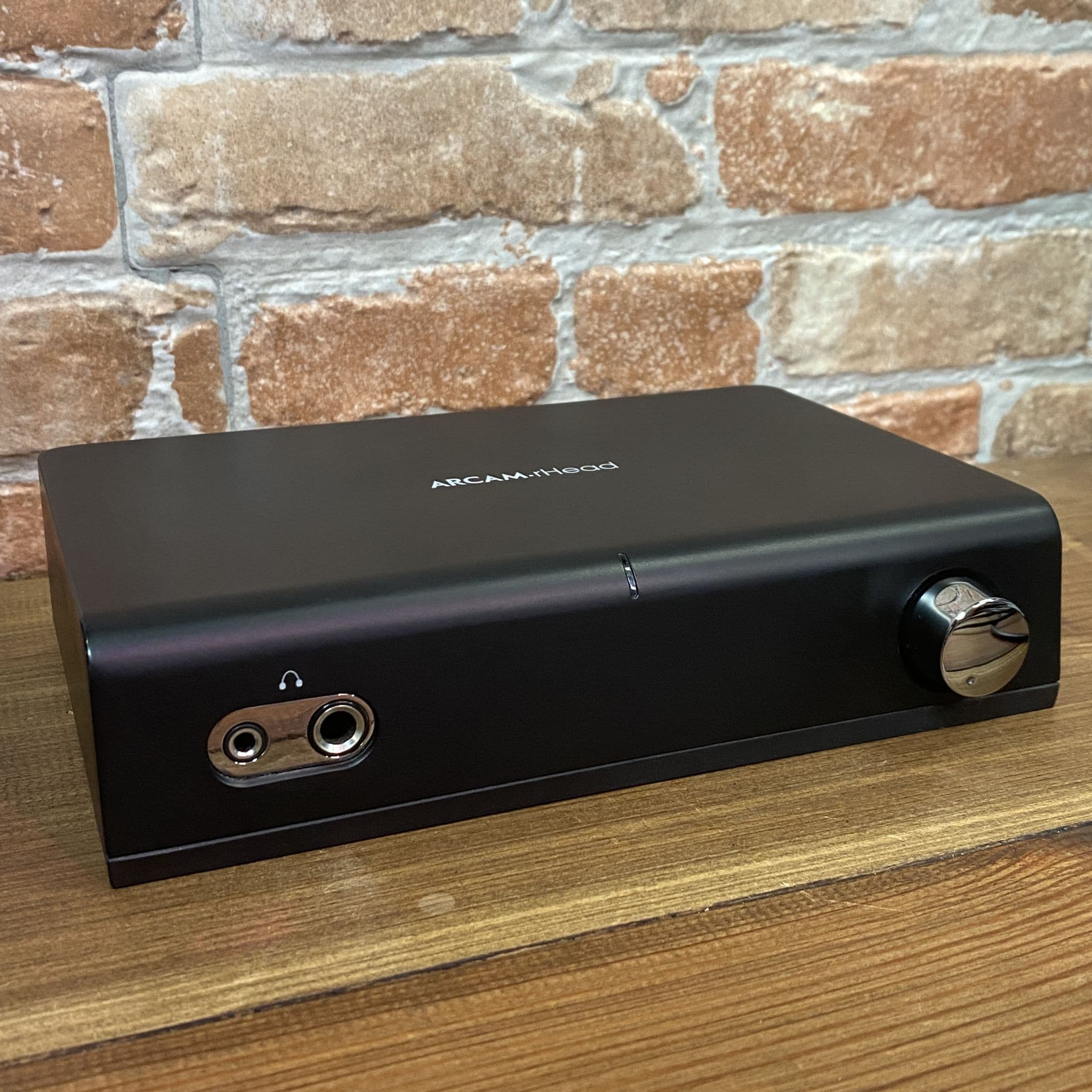

Arcam rHead Headphone Amplifier

Arcam has always been known for producing class-leading integrated amplifiers, all of which featured excellent headphone stages. The rHead continues that tradition, but in the highly specialised area of discrete analogue headphone amplification, in a small, solidly and beautifully built unit designed to complement the audio system of any headphone lover.

The rHead is a true **linear Class A design**, resulting in absolutely no crossover distortion for the purest sound. Extensive care has been taken to optimise the layout; areas like multiple ultra-low noise power supplies and a fully direct-coupled signal path make a big difference. Also, the volume control is an **ultra-linear analogue resistive ladder device**, as used in the flagship A49, which eliminates tracking errors that can be found in normal potentiometer-based volume controls.

Comprehensive protection systems prevent damage to the rHead while not interfering in any way with the ultimate reproduction of the sound. The rHead sounds amazingly natural and completely engaging and reveals the true character of any music that is played through it.

The rHead is more than capable of driving the most demanding of headphones. Both RCA and XLR inputs (switchable) are available, as well as both 3.5mm and 6.35mm sockets, allowing for ultimate headphone listening flexibility.

Key Features

  • Brilliant condition (minor scuffing)
  • Original box & packaging
  • Includes Quick Start Guide & mains cable
  • Audiophile Class A headphone amplifier

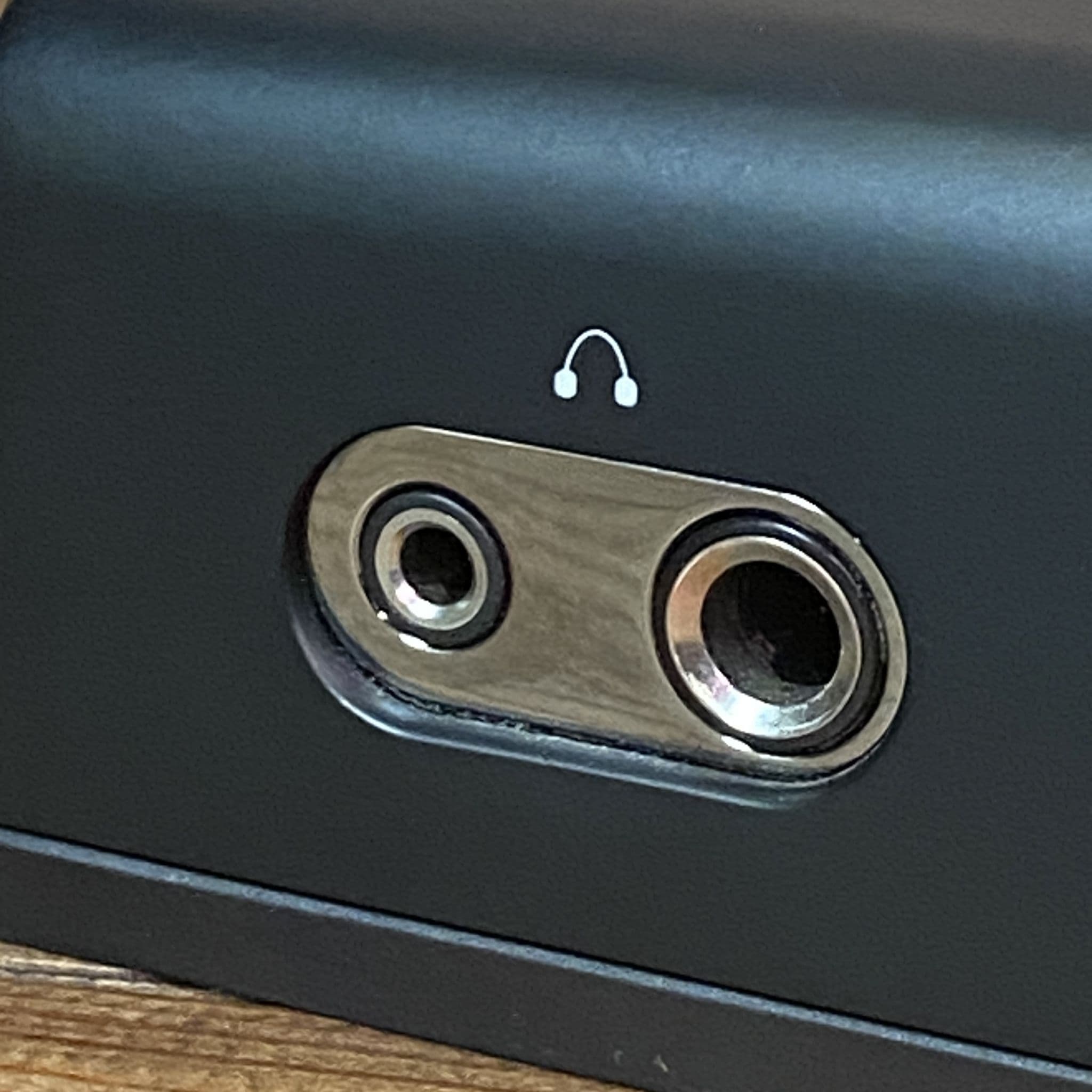

  • Supports 3.5mm and 6.35mm headphones

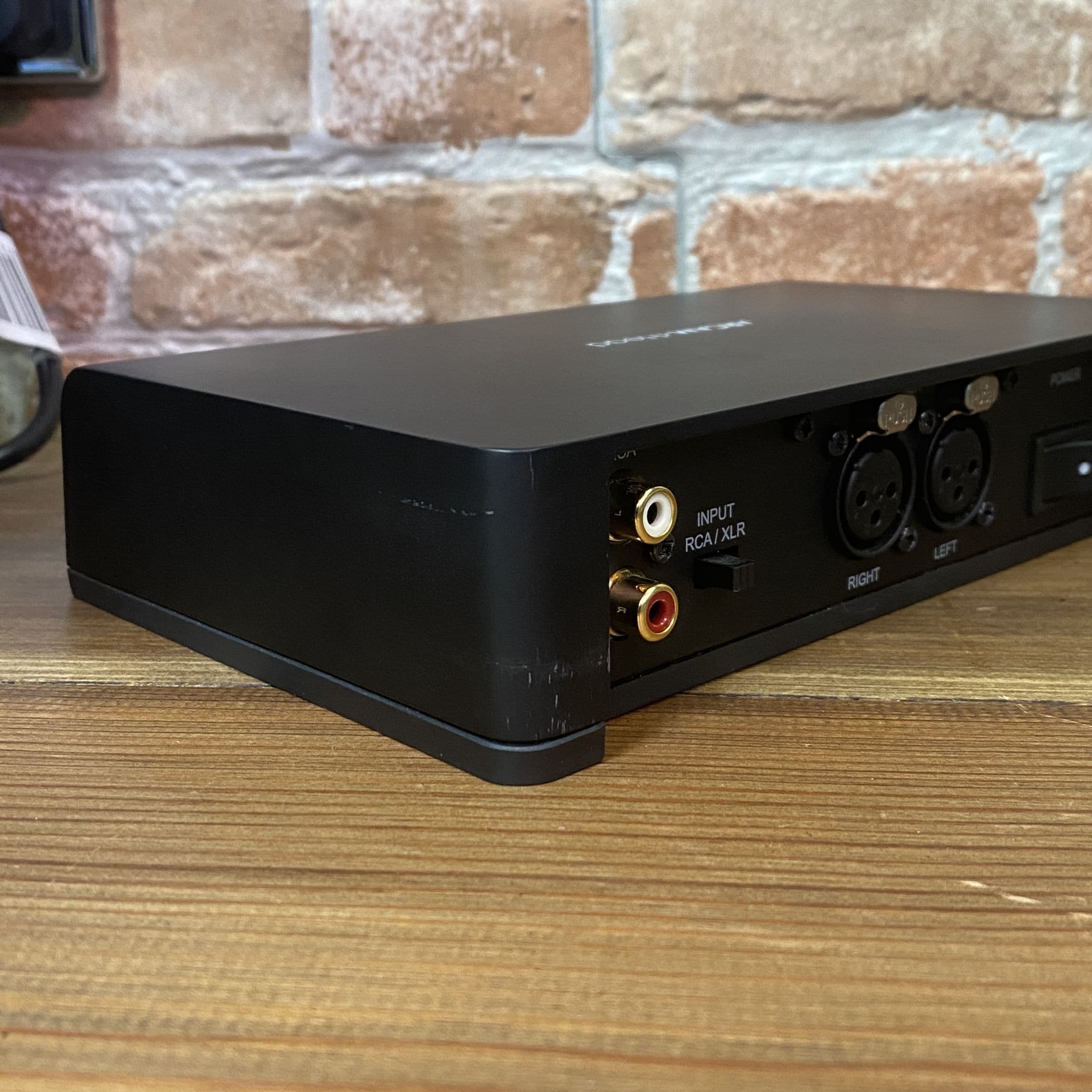

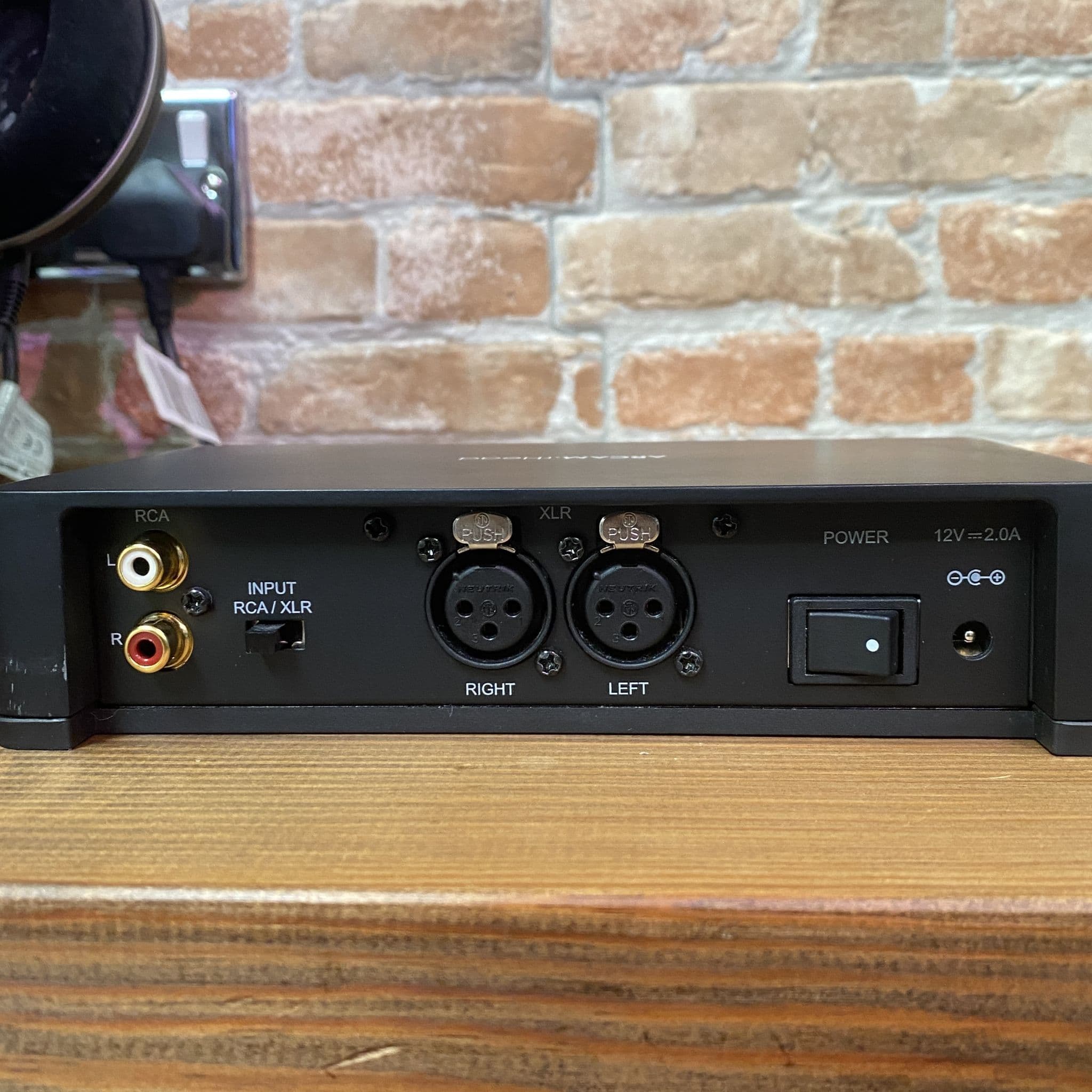

  • Supports RCA & XLR inputs

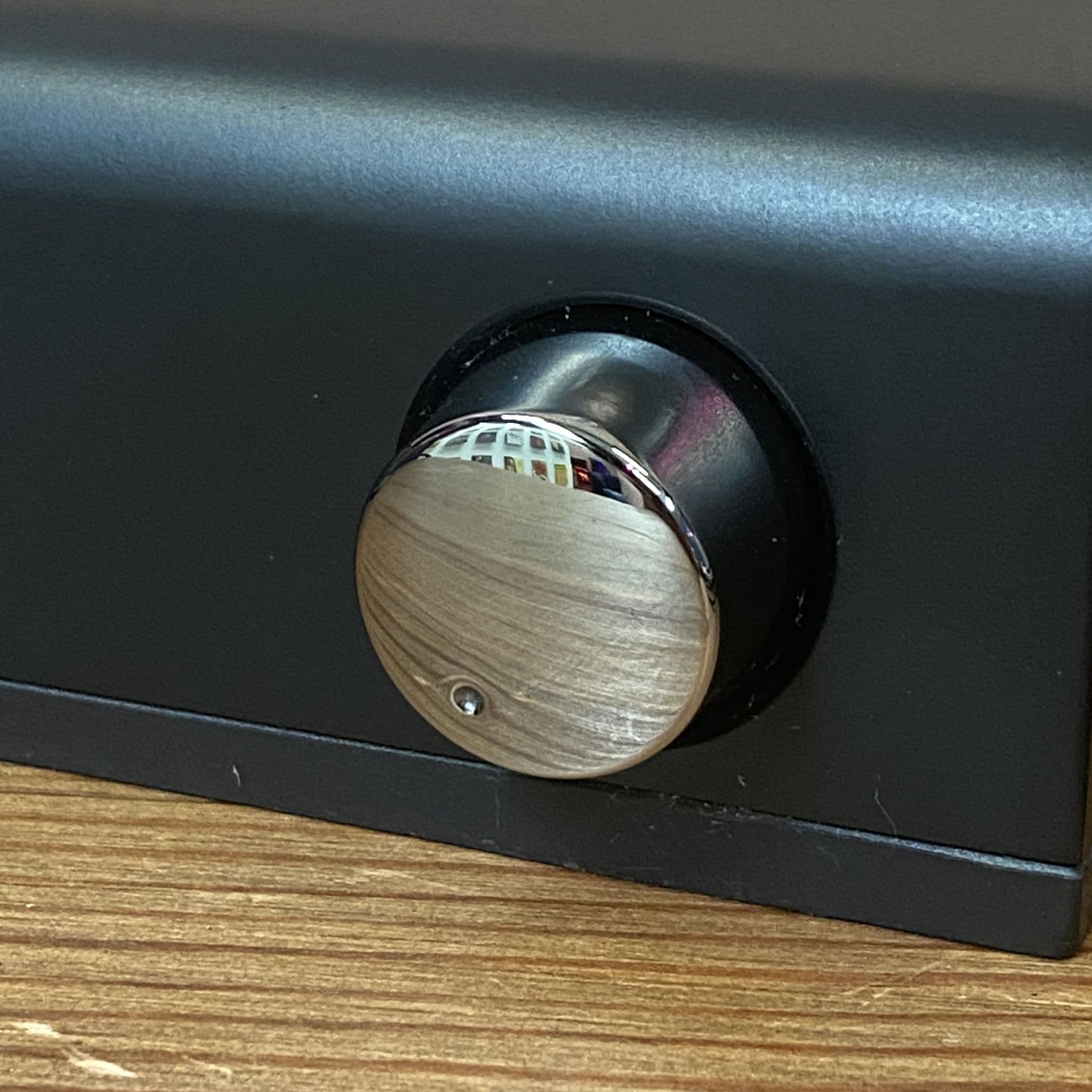

  • Ultra-linear analogue volume control
  • High-end audio circuitry
  • Comprehensive protection systems
  • Stylish cast aluminium casework

Specifications

Frequency response 10Hz - 20kHz
Total Harmonic Distortion + Noise 0.002% at 2V output, 32Ω load
Signal-to-noise ratio (A-weighted) 98dB at 2V output, 32Ω load
Power requirements 12V DC, 1.5A
Headphone output power 2.0W, 16Ω load
1.1W, 32Ω load
0.13W, 300Ω load
Headphone recommended impedance 16Ω - 600Ω, 3.5 or 6.35mm plug
Output impedance <0.5Ω
Input levels 0-4V (RCA)
0-8V (XLR)
Dimensions W194 x H44 x D135mm
Weight 0.71kg
