Product Description

Finish : Satin Black / Dark Grey
Original Atoll Box and Packing
Factory Manual.
Factory Remote Control.
Warranty until July 2027, so complete peace of mind.
Full details here : Atoll IN100 Signature Integrated Amplifier

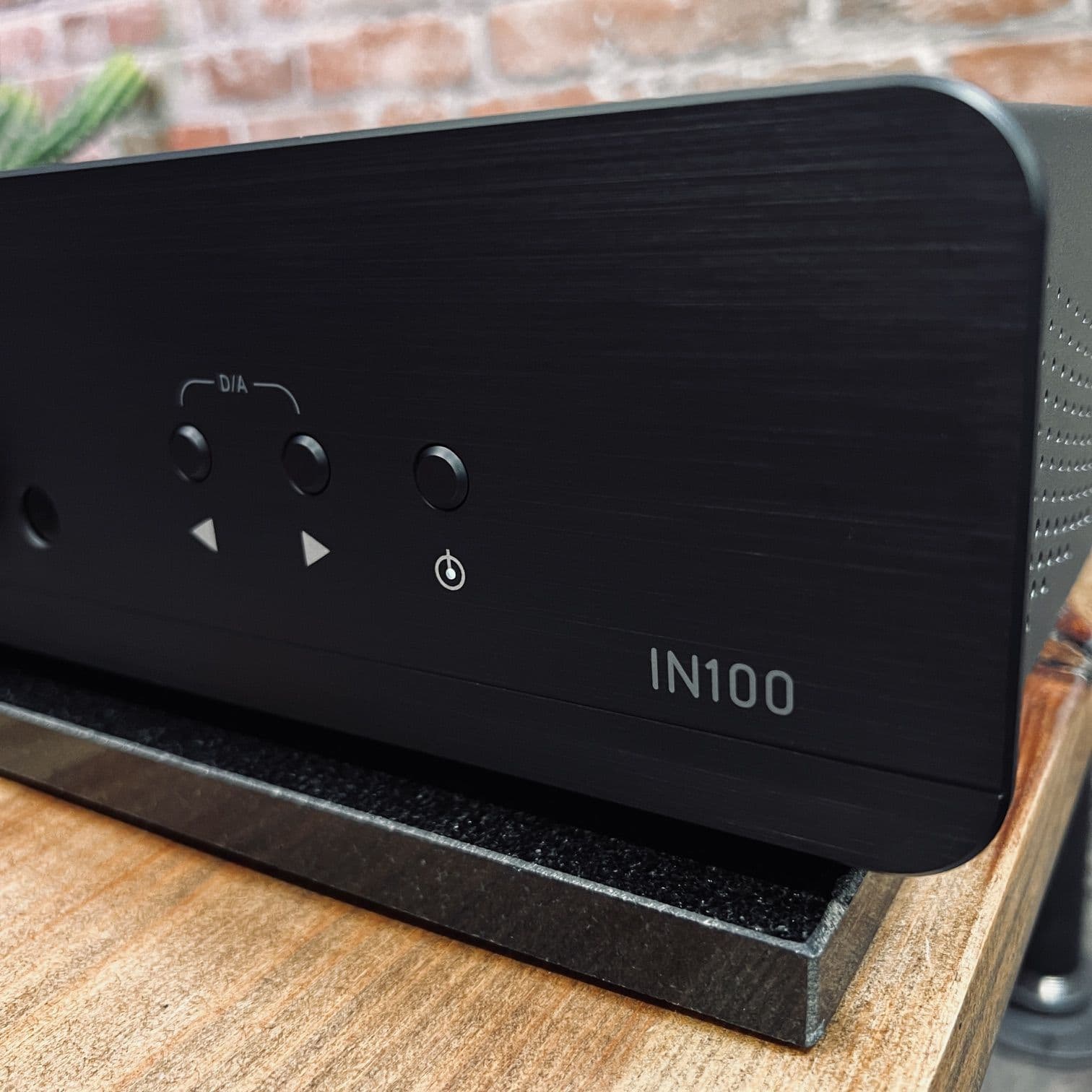

IN100 Signature

The integrated amp-preamp IN100 Signature is manufactured with the utmost care. We choose the best possible components to achieve the highest level of sound performance.

This rigorous search for perfection involves designing proprietary ATOLL circuits to preserve the integrity of the most subtle musical signals.

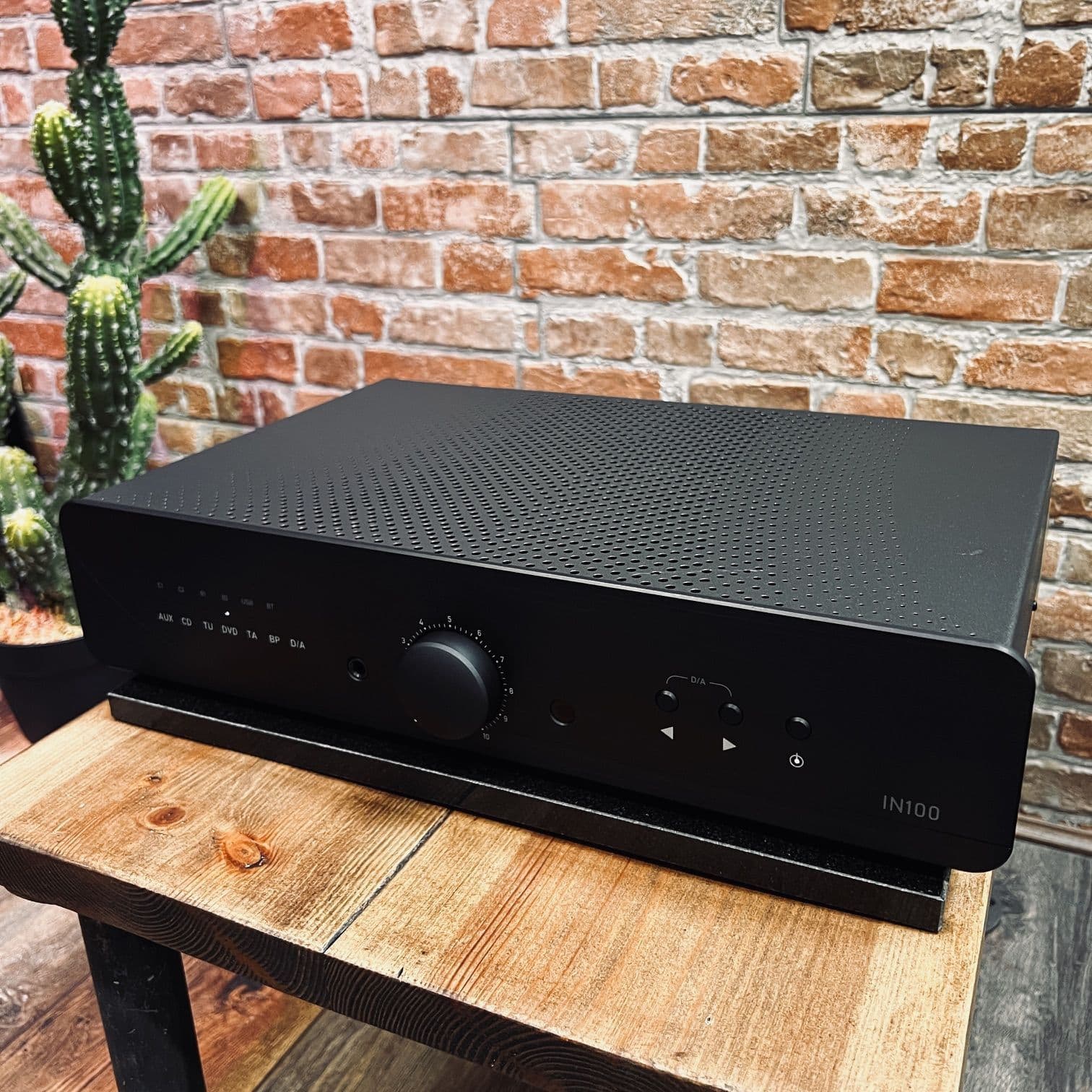

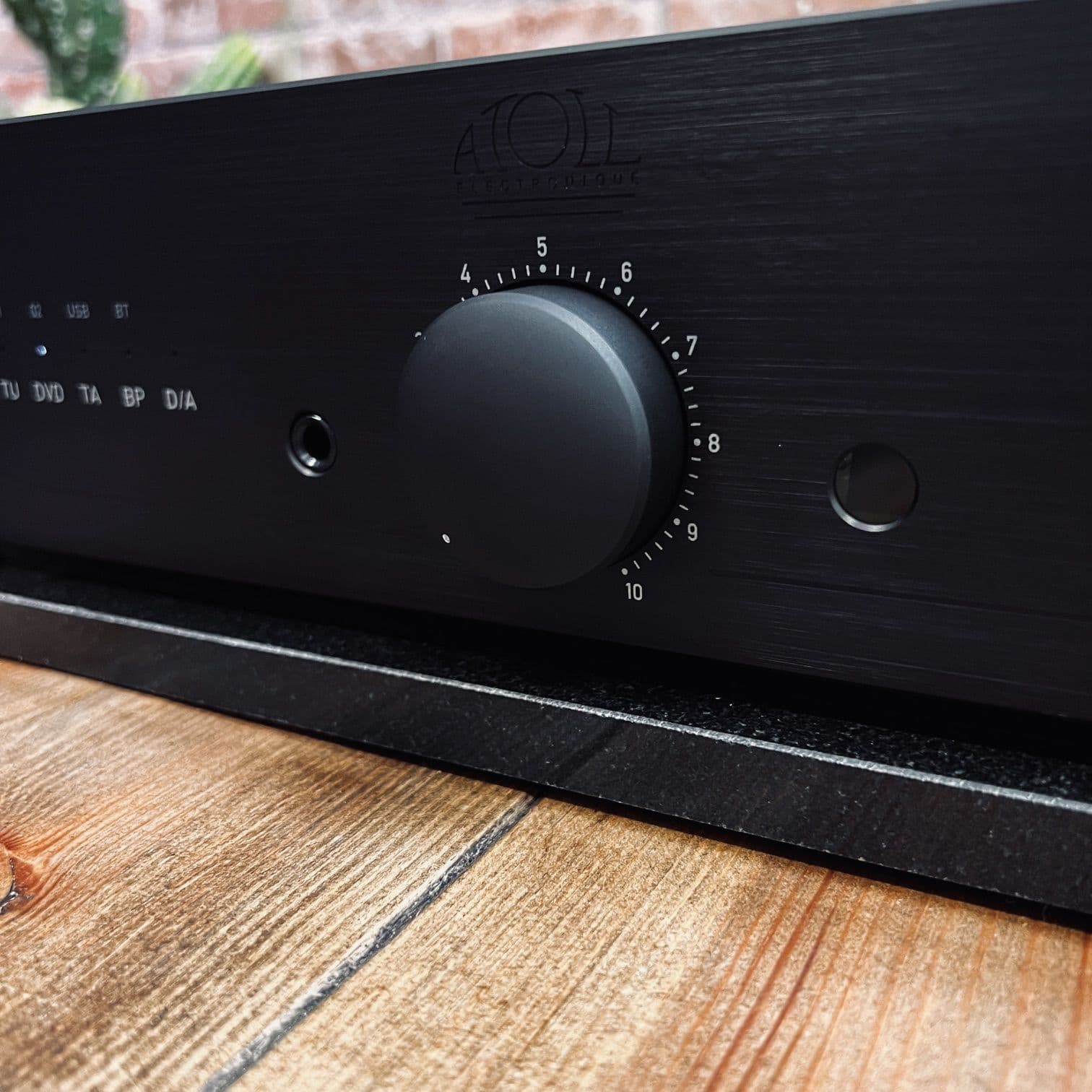

4 mm brushed aluminium front panel.
2×100 W / 8Ω.
2 toroidal transformers of 340 VA each.
ALPS motorized potentiometer.
Filter capacitors: 4×6800 μF.
Single push-pull MOS-FET power stage.
Monitoring loop.
Discrete component audio stages.
MKP Technology Link Capacitors.
High-performance heat sinks, direct thermal coupling.

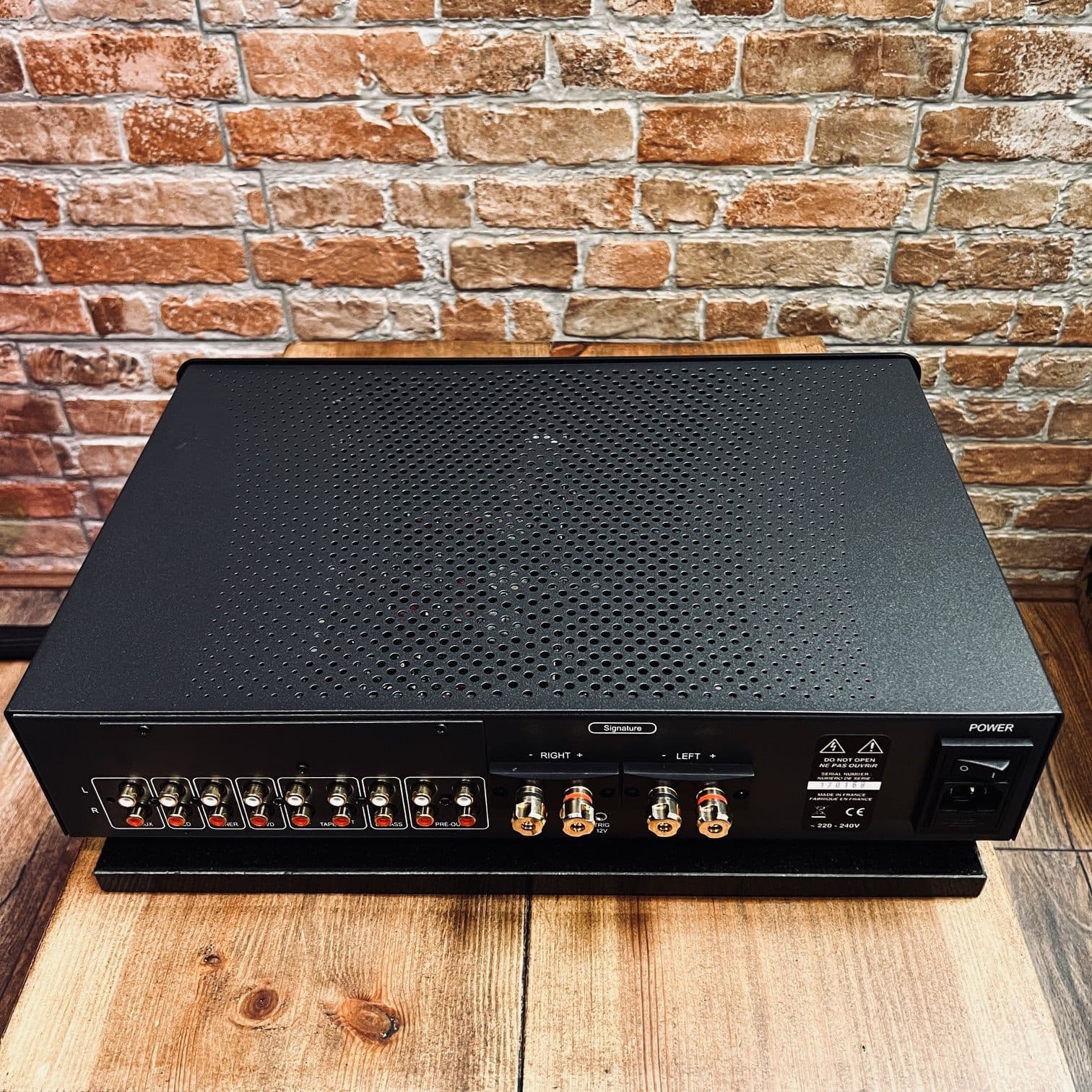

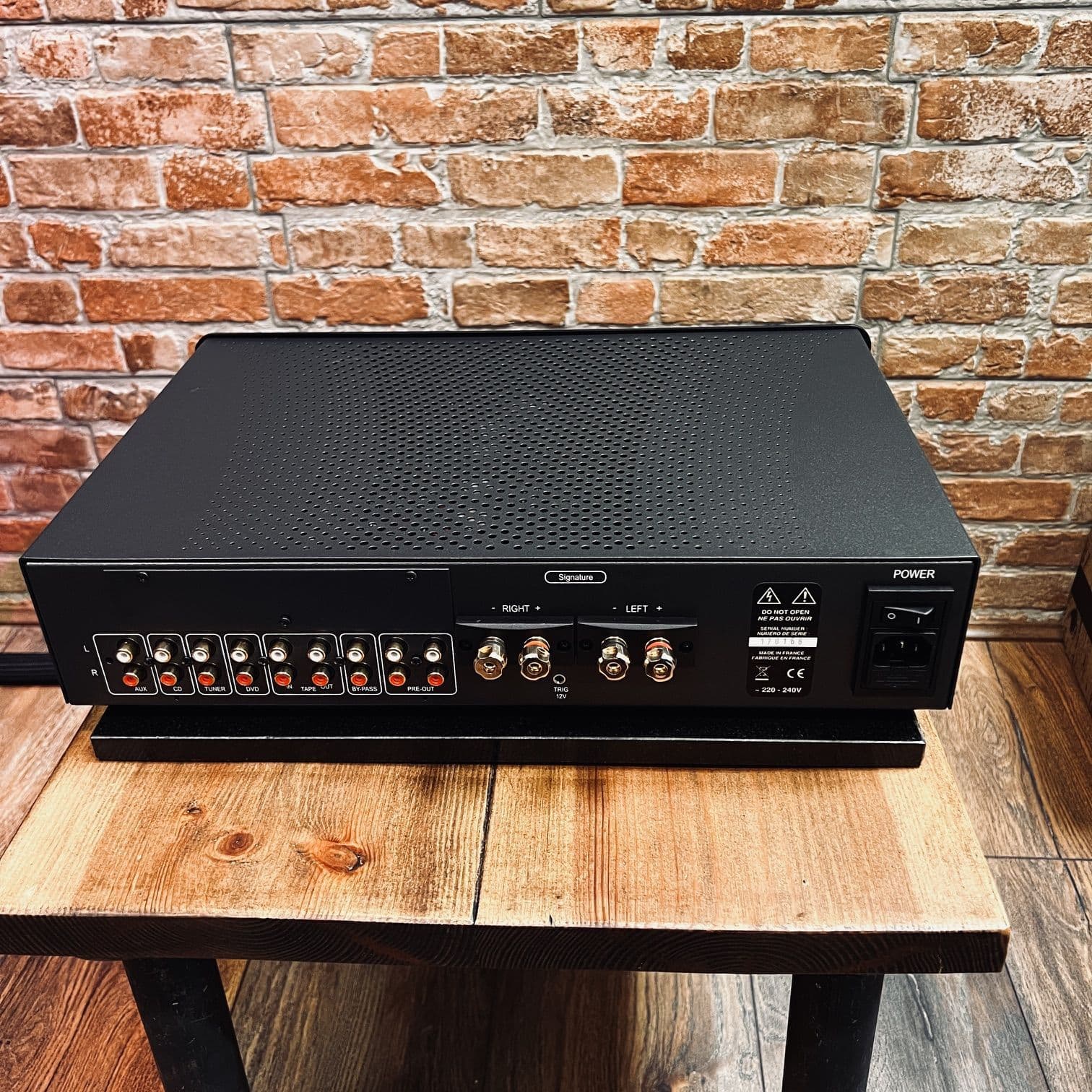

CONNECTIVITY

Inputs

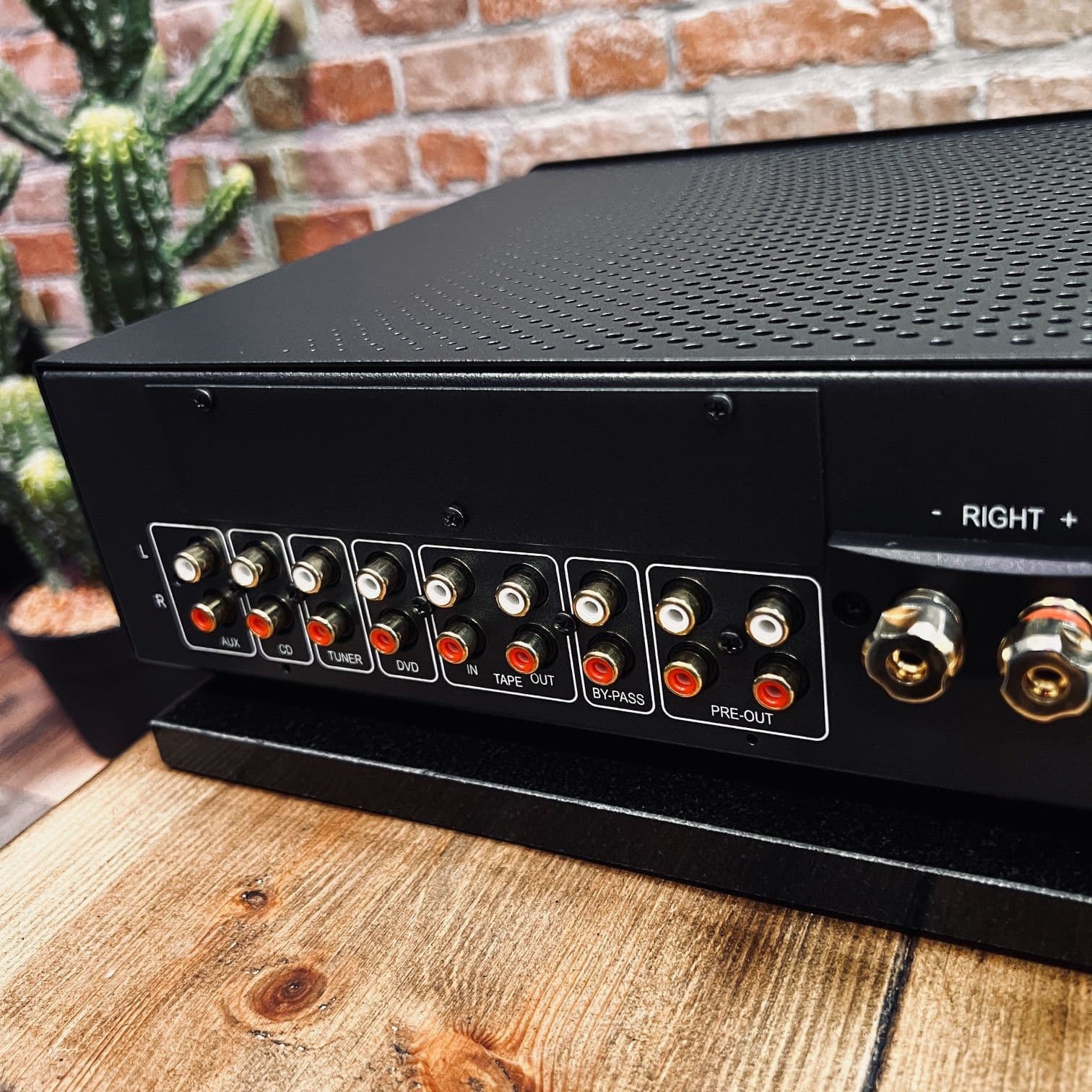

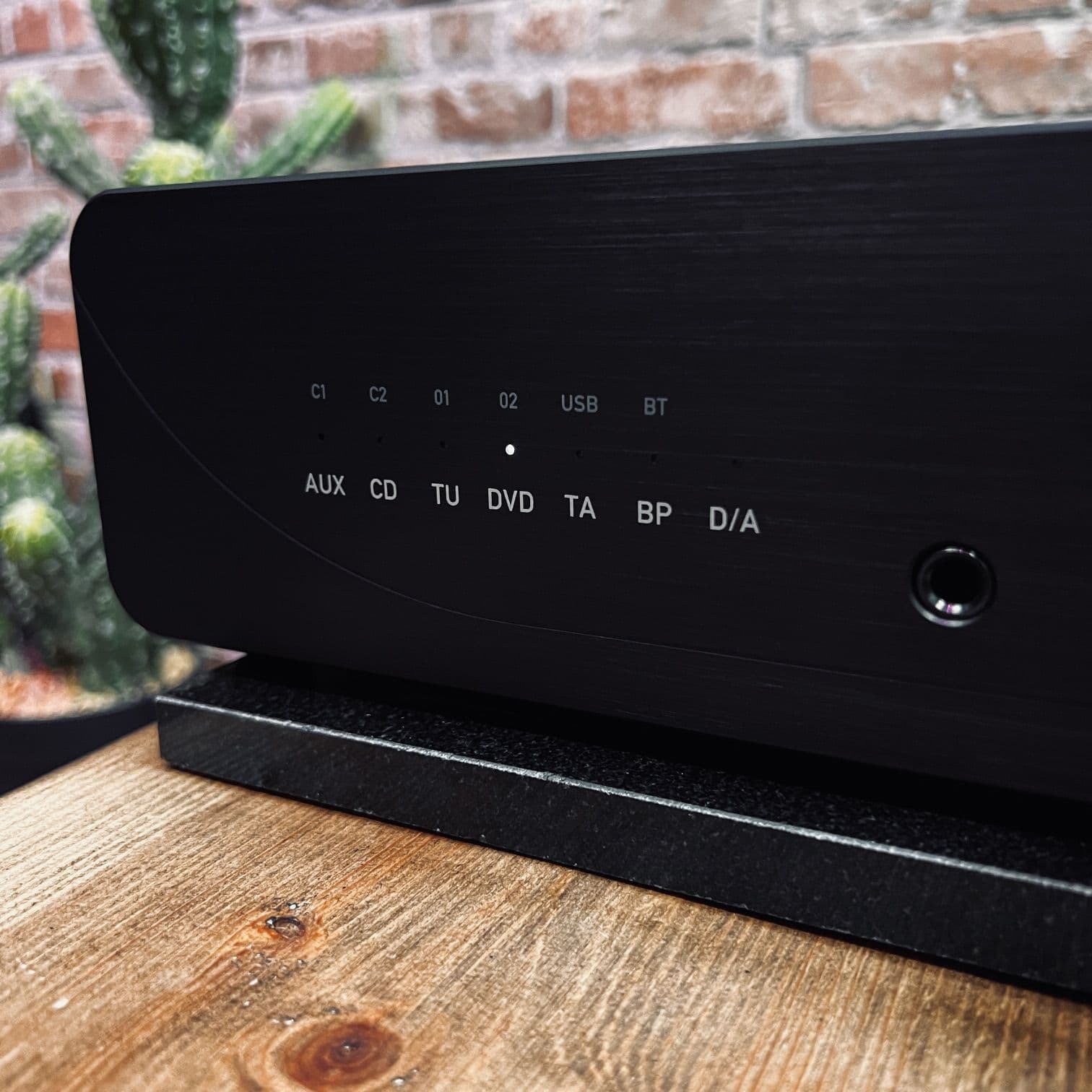

5 Audio inputs (RCA): AUX, CD, TUNER, DVD, TAPE (IN + OUT).
1 BY-PASS input (used as a power amplifier).

Outputs

2 Line preamp outputs (for bi-amplification or to connect a subwoofer).

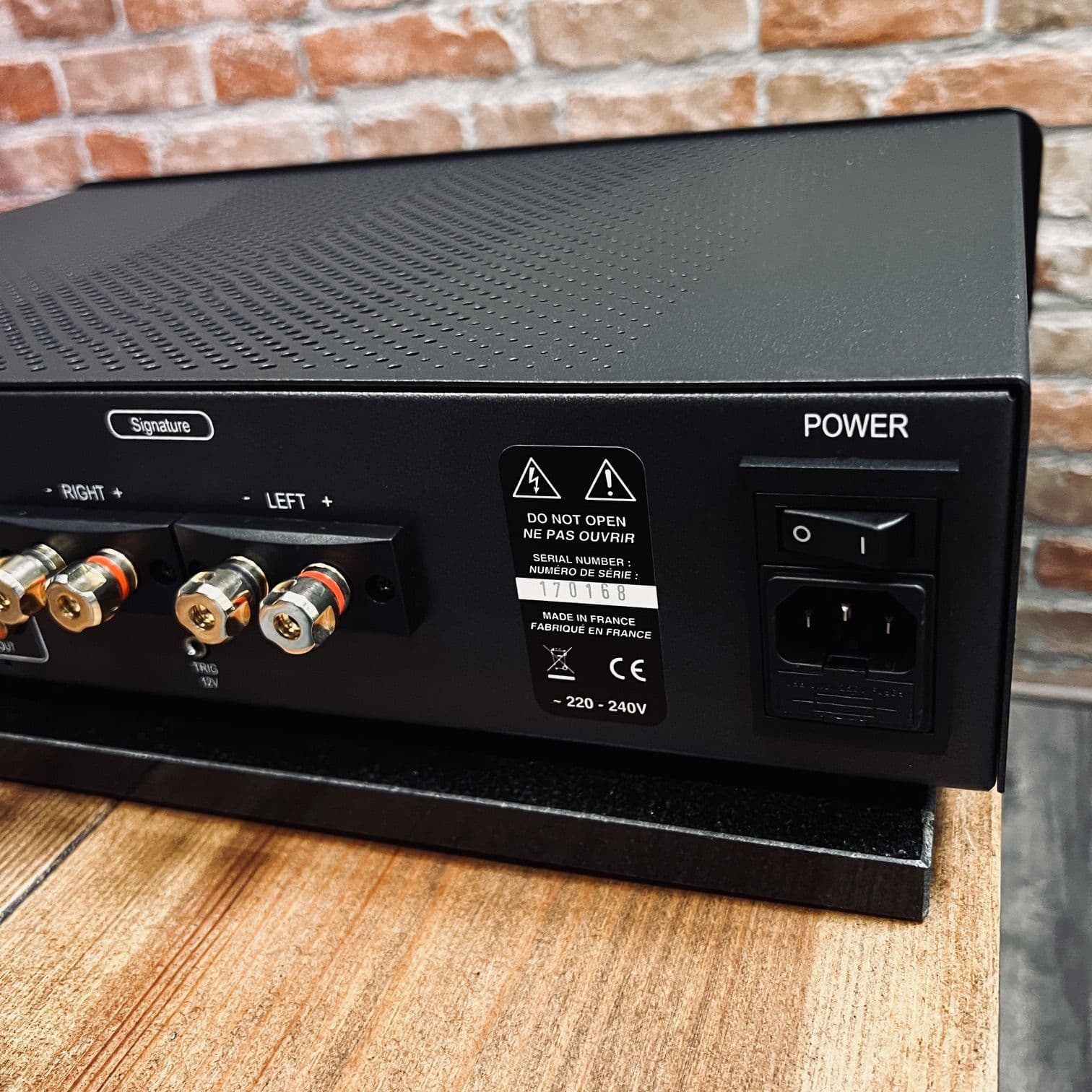

1 Trigger output (12V).
1 Ø 6,35 mm headphone jack output.

At a glance :

Double-sided circuit boards with nickel/gold finish.
Polarization of output stages in class A/B.
Thermal protection.
Optional ATOLL global remote control (included)

Our balanced MOS-FET amplifier circuits offer excellent harmonic gradients and have no memory effect. Every moment, the current is immediately delivered to your speakers.

This is one of the secrets of the musicality that ATOLL amplifiers enjoy.

TECHNICAL DATA

Output power Wrms/8Ω: 2×100 W
Output power Wrms/4Ω: 2×140 W
Power supply: 2×340 VA
Total of capacitors: 31 474 µF
Number of inputs: 5+1 BY-PASS
Preamp outputs: 2
Bandwidth: 5 Hz – 100 kHz
Rising time: 2,5 µs
Input impedance: 357 kΩ
Sensitivity: 100 mV
Signal/Noise ratio: 100 dBA
Distortion at 1 kHz: 0,05% / 10 W
Dimensions: 440×305×95 mm
Weight: 11 Kg

Specifications

Product Type

Integrated Amplifier

MPN

ATOLL-IN100SIG-P22

Brand

Atoll Electronique

Condition

Used

Product Code

ATOLL-IN100SIG-P22

Weight

17kg

Description

Finish : Satin Black / Dark Grey
Original Atoll Box and Packing
Factory Manual.
Factory Remote Control.
Warranty until July 2027, so complete peace of mind.
Full details here : Atoll IN100 Signature Integrated Amplifier

IN100 Signature

The integrated amp-preamp IN100 Signature is manufactured with the utmost care. We choose the best possible components to achieve the highest level of sound performance.

This rigorous search for perfection involves designing proprietary ATOLL circuits to preserve the integrity of the most subtle musical signals.

4 mm brushed aluminium front panel.
2×100 W / 8Ω.
2 toroidal transformers of 340 VA each.
ALPS motorized potentiometer.
Filter capacitors: 4×6800 μF.
Single push-pull MOS-FET power stage.
Monitoring loop.
Discrete component audio stages.
MKP Technology Link Capacitors.
High-performance heat sinks, direct thermal coupling.

CONNECTIVITY

Inputs

5 Audio inputs (RCA): AUX, CD, TUNER, DVD, TAPE (IN + OUT).
1 BY-PASS input (used as a power amplifier).

Outputs

2 Line preamp outputs (for bi-amplification or to connect a subwoofer).
1 Trigger output (12V).
1 Ø 6,35 mm headphone jack output.

At a glance :

Double-sided circuit boards with nickel/gold finish.
Polarization of output stages in class A/B.
Thermal protection.
Optional ATOLL global remote control (included)

Our balanced MOS-FET amplifier circuits offer excellent harmonic gradients and have no memory effect. Every moment, the current is immediately delivered to your speakers.

This is one of the secrets of the musicality that ATOLL amplifiers enjoy.

TECHNICAL DATA

Output power Wrms/8Ω: 2×100 W
Output power Wrms/4Ω: 2×140 W
Power supply: 2×340 VA
Total of capacitors: 31 474 µF
Number of inputs: 5+1 BY-PASS
Preamp outputs: 2
Bandwidth: 5 Hz – 100 kHz
Rising time: 2,5 µs
Input impedance: 357 kΩ
Sensitivity: 100 mV
Signal/Noise ratio: 100 dBA
Distortion at 1 kHz: 0,05% / 10 W
Dimensions: 440×305×95 mm
Weight: 11 Kg
