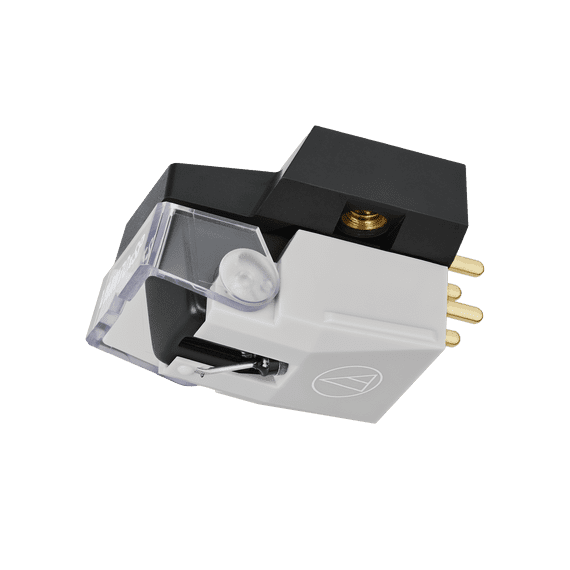

Audio Technica VM670SP Dual Moving Magnet Mono Cartridge for Shellac or Phonograph Records | Audio Emotion

Product Description

AT-VM670xSP

The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail. This latest renewal of the line introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.

The AT-VM670xSP cartridge is designed for playing 78 RPM monaural records. The dual magnets in this cartridge are internally connected to reduce record noise and obtain a highly focused “centre” sound image that stereo cartridges can’t provide.

Easy to Install & Use

Each AT-VMx cartridge body has threaded inserts, enabling it to be mounted to a headshell with just two screws – no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the stylus’s position when lowering it onto a record.

Highly Efficient Generator

The paratoroidal coil construction of the cartridge’s generator – two PCUHD coils per channel, one stacked behind the other – greatly improves electromagnetic performance, while a slight reduction in coil turns* enhances transient response for clean, lifelike sound.

*Compared to VM series cartridges.

Interchangeable Styli

Since all AT-VMx and VM Series cartridges share the same body design and have a removable stylus, you can use almost any AT-VMNx or VMN replacement stylus* with any VMx or VM cartridge for easy experimentation with sound characteristics.

AT-VMN10xCB (conical/bonded/aluminium cantilever)
AT-VMN20xEB (elliptical/bonded/aluminium cantilever)
AT-VMN30xEN (elliptical/nude/aluminium cantilever)
AT-VMN40xML (microlinear/nude/aluminium cantilever)
AT-VMN45xML (microlinear/nude/boron cantilever)
AT-VMN50xSH (Shibata/nude/boron cantilever)
AT-VMN60xSL (special line contact/nude/boron cantilever)

* Excludes mono models

Specifications

Cartridge & Stylus
Frequency Response 20 to 20,000 Hz
Vertical Tracking Angle 20°
Tracking Force 4.5 to 5.5 g (5.0 g standard)
Stylus Construction Conical bonded (3.0 mil)
Recommended Load Impedance 47 k ohms
Coil Impedance 1.6 k ohms (1 kHz)
DC Resistance 375 ohms
Coil Inductance 240 mH (1 kHz)
Output Voltage 4.7 mV (1 kHz, 5 cm/sec.)
Horizontal/Vertical Output Ratio 20 dB (1 kHz)
Cantilever Aluminium pipe
Static Compliance 23 × 10-6 cm/dyne
Dimensions 28.0 mm (1.1”) × 18.3 mm (0.72”) × 17.6 mm (0.69”) (H × W × D)
Accessories Included Cartridge installation screws** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), washer × 2
Threaded Hole M2.6 × 2
Recommended Load Capacitance 150 to 250 pF
Replacement Stylus AT-VMN70xSP* (sold separately)
Stylus Curvature Radius 3.0 mil
Type VM
Weight 7.2 g (0.25 oz)
Notes *The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes.
**Cartridge installation screws (5.0 mm (0.20”)) x 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box.
For product improvement, the product is subject to modification without notice.
Read More

Specifications

Product Type
Turntable Cartridge
Cartridge Type
Dual Moving Magnet
Stylus
Conical
Brand
Audio Technica
Condition
New
Product Code
AUDIOTECHNICA-VM670SP
