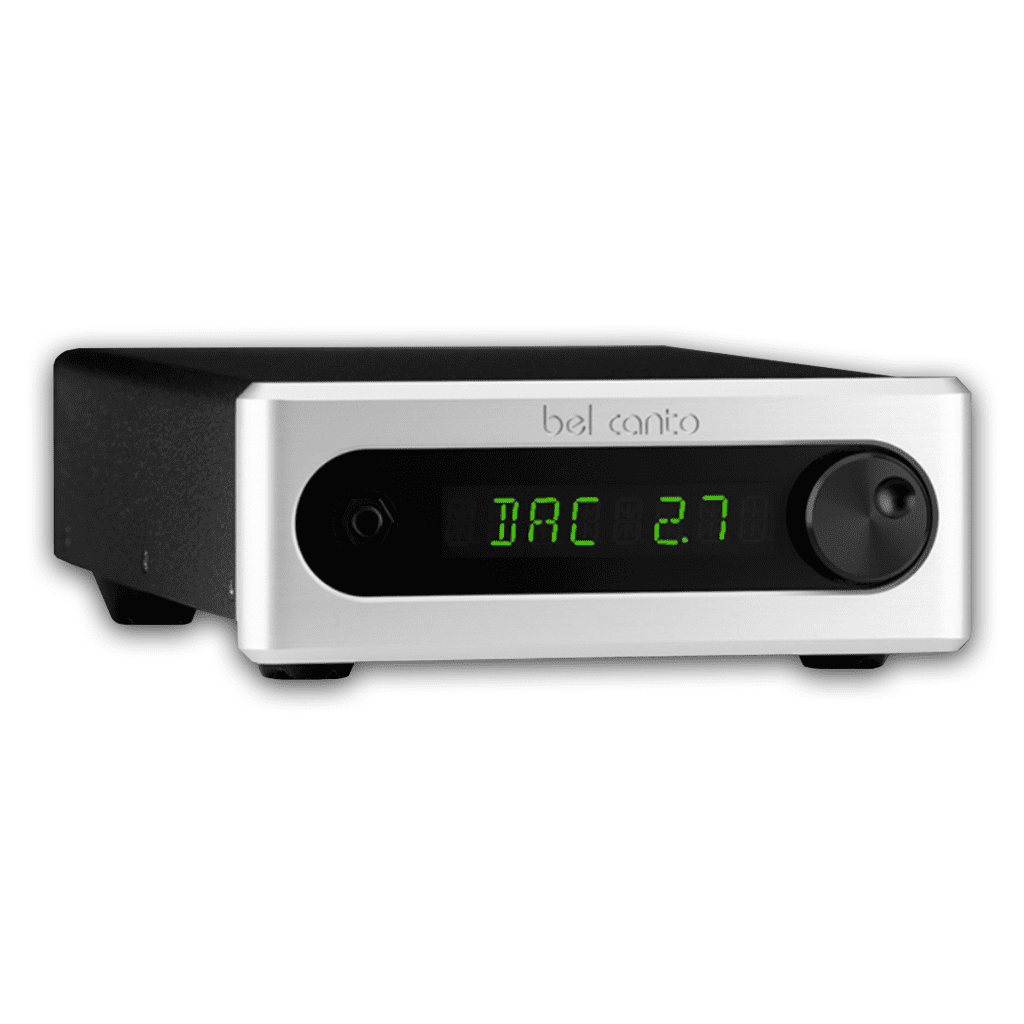

Bel Canto DAC 2.7 Control Preamp | Audio Emotion
Bel Canto DAC 2.7 Control Preamp | Audio Emotion

Product Description

Incredible audio performance, features, and flexibility, the DAC2.7 is musically open, detailed, and natural sounding.

Class Leading 124dB Dynamic Range
24 Bit Volume Control
24/192 Asynchronous USB2.0
Analog Input
5 Asynchronous Digital Inputs
High Current Headphone Output Driver
Remote Control
Available in Black or Silver Faceplate
MAC USB 2.0 compatibility and custom Windows USB 2.0 driver

Features

HDR Core is the result of 20+ years of engineering to refine the digital to analog process, comprised of 4 major components: Ultra Low Noise Master Clocks, Asynchronous Interfaces, Advance Segment PCM1792 DAC and Dual Mode Low-Noise High Efficiency Power Supplies. HDR Core technology is fundamental to every premier Bel Canto product, creating the most realistic, open, and defined musical experience possible.

Built In Headphone Output
This low-impedance, high-output headphone amp circuit has been designed to drive any pair of high quality headphones with pristine clarity. You'll be amazed at the musical depth they bring to your headset.

Simple, Elegant Interface
Designed to be functional and simple, the dual-functioning one knob interface is a joy to use. The programmable 8 character display works with it seamlessly to access all basic functions in a few clicks. The included 36 button infrared remote allows instant command functions and display editing.

Asynchronous USB Input
24/192 Asynchronous input works with the internal dual Ultra Low Noise Femtosecond clocks to provide unprecedented audio sound quality and impact from your computer audio sources.

Digital Specifications

24bit Data at 192KS/sAES XLR, SPDIF BNC/RCA, TOSLINK, USB
Master Clock jitter70 femtoseconds RMS, 100Hz-1MHz

Analog 24/192 DAC Specifications

Maximum Output4.4Vrms balanced XLR, 2.2Vrms RCA
Output Impedance200 ohms balanced XLR, 100 ohms RCA
Frequency Response20 Hz-20 KHz, +/- 0.5dB
THD+N<0.0015%, 4Vrms balanced out, 1KHz
Output Noise3.3uVrms A-weighted 20Hz-20KHz
Dynamic Range124dB A-weighted 20Hz-20KHz

Analog 24/192 ADC Section

Maximum Input2.5 Vrms RCA
Input Impedance12K ohms RCA
THD+N0.003%, 2.5Vrms in, 1KHz
Dynamic Range110dB, A-weighted 20Hz-20KHz

Headphone Section

Headphone Output Current and Voltage Level300mA peak at 4Vrms
Maximum Output138mW
THD+N0.01% 35mW, 1KHz
Output Noise17uVrms, A-weighted 20Hz-20KHz

General Specifications

Power Usage On7W
Power Usage Off0.0W
Power Requirement100-120VAC, 220-240VAC 50/60 Hz
Dimensions216 mm x 318 mm x 88 mm
Weight6.5 kg

Manufacturer Site
Read More

Specifications

Product Type
Preamplifier
Brand
Bel Canto
Condition
New
Product Code
BELCANTO-DAC27
