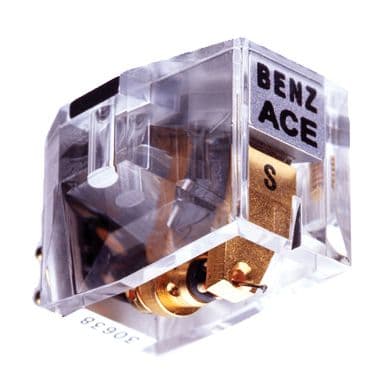

The Benz Micro S-Class models of the Wood Body SL (low-output), SM (medium) and SH (high), the Glider SL, SM, SH, and the ACE SL, SM, SH all incorporate the Benz Dynascan system with a Benz Micro Ridge stylus coupled to improved generators using new coil windings and refined pole pieces/damper designs.

Albert Lukaschek began researching increased performance and uniformity of his cross-coil designs while developing the Benz Micro Ebony H, L and TR models. Experimenting with the length of the solid Boron cantilever revealed how the elasticity of this very stiff material affected compliance and trackability.

Development of a grooved rear pole piece for countersinking the o-ring damper, first introduced on the Benz Micro Ruby square plate cartridges, was then adapted to the cross-coil designs, given their lower contact area and damping characteristics. The lower mass coils and matched cantilevers of the new S-Class retain their real world output levels and with their improved styli, offer heightened performance.

These cartridges yield one of the best performance/value ratios in cartridge market, regardless of output level.


Technical data

Output	0.8mV
Stylus	5x120m
Impedance	24 ohms
Loading range	>200 ohms
Weight	8.8g
Compliance	14cu
Tracking force	1.6-1.9g
