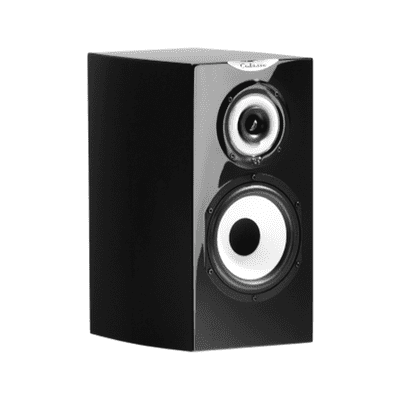

Cabasse Minorca
Featuring Cabasses SCS (Spatially Coherent Source) technology, the MC40 range is aimed at all music lovers looking for a new high-fidelity experience. Cabasse invites you to discover a new world of precision, realism and soundstage spatialization. The ultra compact Minorca MC40, a 3-way speaker equipped with the BC10 coaxial midrange tweeter and a Duocell membrane woofer, allows you to reach a level of emotion only previously obtainable from large speakers.
Features
COAXIAL MIDRANGE TWEETER
Developed with the same innovative solutions used for the midrange-high sound reproduction of our THE Sphère flagship system, the BC10 adds depth and soundstage realism to the fidelity of the timbres, without artifice or auditory fatigue. A speaker that is unrivalled at this price level.
DUOCELL CONE WOOFERS
The 17 cm woofer of Minorca is fitted with a Duocell cone designed by Cabasse and manufactured with Cabasse robotics. The very light, but rigid and nicely damped membrane has an exponential profile and variable thickness, to obtain maximum use of the dynamic qualities of long stroke motors and a high force factor in order to bring all the precision and vivacity necessary for high fidelity, true to live sound.
CROSS-OVERS WITH VARIABLE SLOPES
The Cabasse development protocol combines numerous measurements in an anechoic room, combining on-axis and 360° results. It guarantees a perfect control of both the directivity index and the total radiated power all along the frequency bandwidth to match the SCS principles. It is a key process, together with listening sessions, in the development of the cross-over boards. The slopes can vary from 6 to 24 dB per octave for an optimal acoustical phasing, taking into account the influence of the external shape of the enclosure to optimise the qualities of the co-axial drive-units.

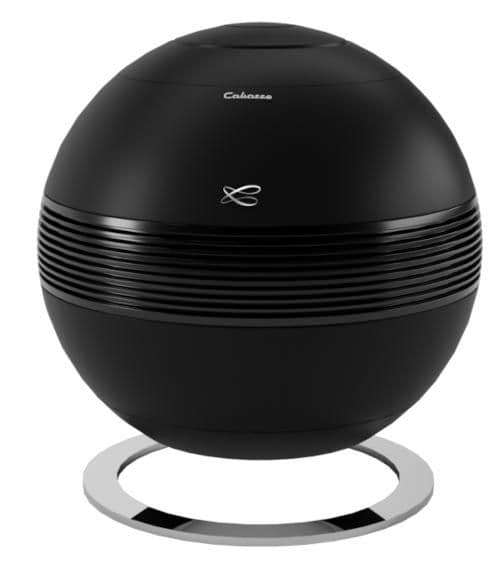

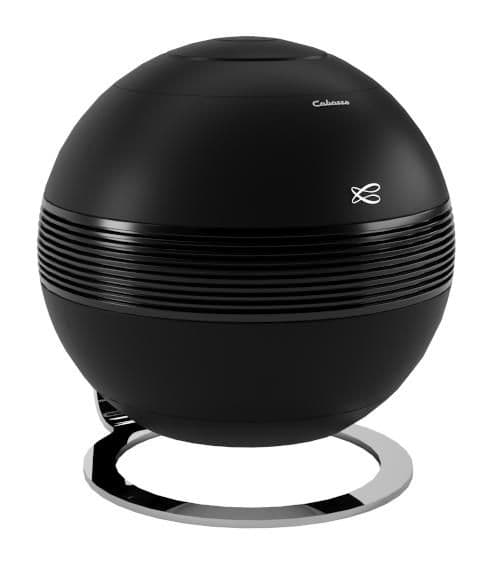

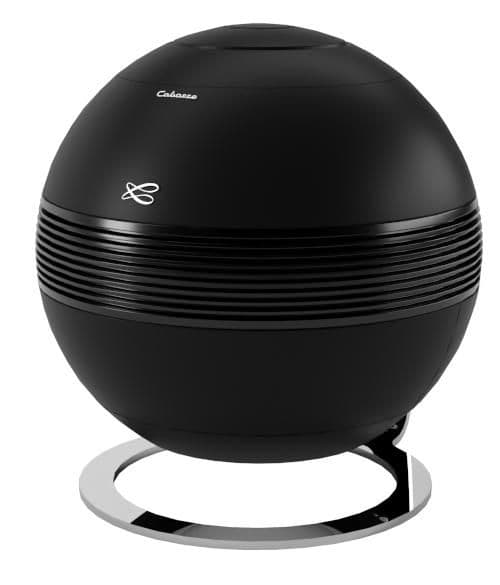

The Pearl Sub Subwoofer
THE PEARL SUB. A world first. Its a high-definition active connected subwoofer capable of delivering maximum dynamics, with deep bass and sound optimised for each speaker (DEAP technology), auditorium-quality room correction and high-resolution streaming adapted to its Lifestyle iO3, Riga 2 and Baltic 5 speakers!
Features
ONE OF A KIND
THE PEARL SUB: The first high-definition 2.1-connected active subwoofer in the world.
It was born from the desire to create a 2.0 Hifi system, eliminating the need for separate amplifiers and subwoofers. Its the centerpiece of the new Lifestyle range, incorporating optimised profiles of the iO, Riga and Baltic satellite speakers.
EVEN MORE DYNAMICS AND PRECISION
THE PEARL SUB is equipped with a 25 cm woofer with a linear excursion of up to 30 mm, powered by 2000 watts (peak) for a deep bass level.
The result? Spectacular acoustics with exceptional bass dynamics.
DEAP TECHNOLOGY
THE PEARL SUB enables you to get the most out of its speakers via its patented DEAP technology, which optimises the digital signal according to which ones you have (Baltic, Riga or iO).
This feature is easily accessible in 1 or 2 taps with the free StreamCONTROL application available for IOS and Android.
THE PEARL SUB also offers listeners a patented CRCS automatic room correction system for optimised acoustics whatever the listening environment.
A COMPACT AND STREAMLINED DESIGN
THE PEARL SUB has a refined and suspended design and sits on a rough-cut, folded, and chrome-plated steel base to hold the subwoofer in the air. 4 Successive coats of matt paint enables a perfect spherical rendering.

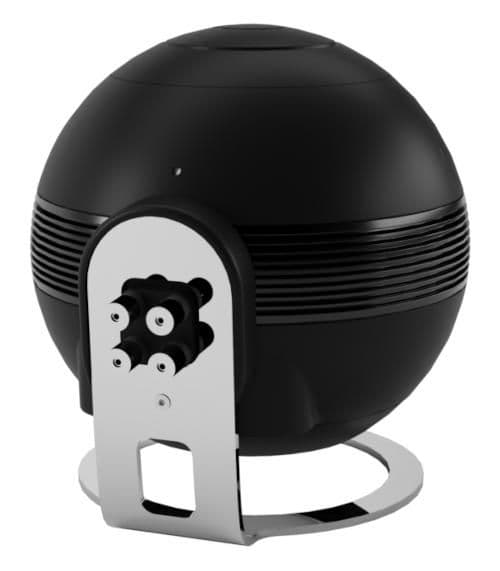

At the back, four carbon speaker connectors allow you to power speakers with up to 300 watts of nominal power.
A CONNECTED SUBWOOFER WITH MULTI-SOURCE AND MULTI-ROOM CAPABILITIES
THE PEARL SUB is equipped with Bluetooth and Wifi connectivity. It integrates perfectly into the Cabasse StreamCONTROL multiroom system.
Enjoy the most popular music streaming (Qobuz, Deezer, Spotify, Napster, Tidal).
A BLUETOOTH REMOTE CONTROL WITH STYLE
THE PEARL SUB comes with its own streamlined and ergonomically designed Bluetooth remote control with a refined finish.
It allows you to easily and intuitively control the subwoofer: adjust the volume by rotating the ring, select the input type, play and pause, and select a radio station or your favorite piece of music, etc.
Specifications
Minorca
Ways: 3
Drivers: BC10 coaxial midrange-Tweeter 10 cm ring – 2.7cm 12cm/4″ annulaire – dôme 2.7 cm/1″
Bass: 1 x 17cm/1″ MD18LB1 Duocell
Filter: 900 – 3 200 Hz
Frequency response: 65 – 23 000 Hz
Efficacité 1 W / 1 m: 89 dB
Nominal impedance: 8 ohms
Minimal impedance: 3,3 ohms
Power handling: 75 W
Peak power: 550 W
Dimensions: 40 x 23 x 28 cm/15,7″ x 9″ x 11″
Weight: 8.5 kg/18 lbs.
The Pearl Sub Subwoofer
Ways: 1
Woofer: 1 x 25 cm/10″ HELD
Amplification:
Left Channel: 300 W RMS / 600 W peak
Right Channel: 300 W RMS / 600 W peak
Bass: 1000 W RMS / 2000 W peak
Amplification performance:
Total Harmonic Distortion + Noise : THD+N = 0,005% – (1W, 4Ohm)
Saturation: 0
Background Noise 0 dB at 50m (-15,5 dB SPL at 3m)
Connectivity: Ethernet - WiFi - Bluetooth - USB - SPDIF Optical - RCA Analogue
Audio Formats: MP3 – AAC -WMA – AIFF – FLAC – ALA
Multiroom: Hi-res Multiroom
Compatibility: iO 1/2/3, Riga 1/2 and Baltic 4/5, Minorca MC40, Murano
Dimensions: 338 x 320 x 368 mm (13″ x 12.5″ x 14.5″)
Weight: 20 kg/44 lbs.
