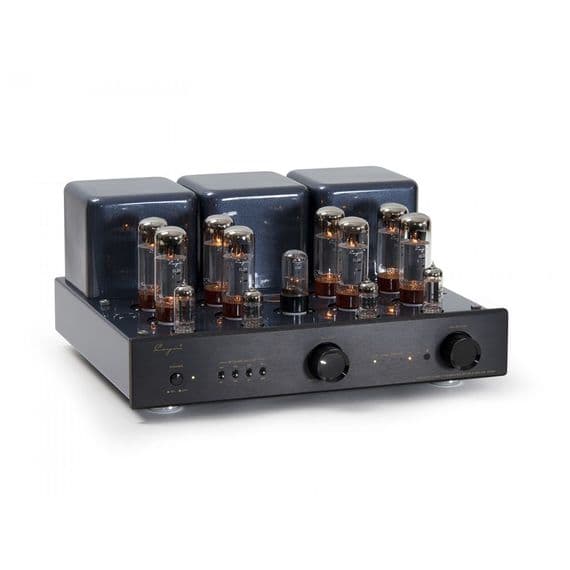

Cayin CS-100A EL34 Tube Amplifier - Type UK

Home > Amplification > Integrated Amplifiers > Cayin
Stock code: CAYCS100AEL34


    For more information on any of our products please call us:


    01333 425999


    Our Price: £3,790.00
    • Product Info
    • Stock Enquiry
    • Part Exchange
    • Reviews (0)

    Product Information

    The use of specially chosen EL34's in the output stage, gives the Cayin CS-100A EL34 that magical organic quality that we love in the world best tube amplifier designs.

    This unique design from Cayin gives you one of the most musical amps of its kind at anywhere near this price point.

    Time and time again, this amplifier wins out against far, far higher price amplifiers - and for good reason.

    The richly deserved 'Golden Ear Award' gives those who have not heard this amplifier a clear indication of it's musical prowess !

    This design utilises eight EL34 tubes in the output stage, allowing the EL34's to operate comfortably within their power operation window, therefore the result is an effortless delivery of beguiling presentation, which keeps the listener coming back for more !

    The support work is done by matched sets of 6SN7, 12AU7EH and 12BH7EH.

    Incredibly high-quality Alps potentiometers are used, and in conjunction with precision film resistors, and ceramic bases plus special audio capacitors , the Cayin CS-100A EL34 pushes the boundaries of what is achievable at this price point.

    Cayin also understand the huge importance of high quality power supplies, and the heavy duty/bespoke toroidal transformer adds the perfect power underpinning to this world class amplifier.

    Cayin also manufacture the system remote completely in-house, keeping to their ethos of "Application Of The Ultimate Quality At Every Stage".

    At its speaker terminals (taps available for 4 and 8 ohms), the Cayin CS-100A / EL34 delivers 75 watts per channel in class AB ultra-linear mode and 40 watts per channel in triode mode - this power delivery allows the Cayin to easily drive any loudpspeaker of choice to the very highest musical levels.

    Technical Specifications

    Type of device Integrated amplifier with MM phono input
    Frequency Response 8Hz-75kHz (-3dB)
    Harmonic distortion (THD) 1% (1kHz)
    Signal to Noise Ratio 92 dB
    Input Impedance 100KΩ
    Input Sensitivity 450 mV line input 1300mV pre-in
    tubes 6SN7 × 1, 12BH7EH × 2, 12AU7EH × 2, EL34 × 8
    inputs Line 1, Line 2, Line 3, Pre-In
    circuit Class A / B
    housing Color Anthracite Metallic
    front panel Silver or black
    circuit Class A / B
    Output power (RMS) at 4 and 8 Ω 40W + 40W Triode, 75W + 75W Ultralinear
    Maximum power consumption 480W
    Dimensions (W x D x H) 420mm × 394mm × 200mm
    mass 30kg
    domestic equipments Remote control, integrated bias meter
