Product Description

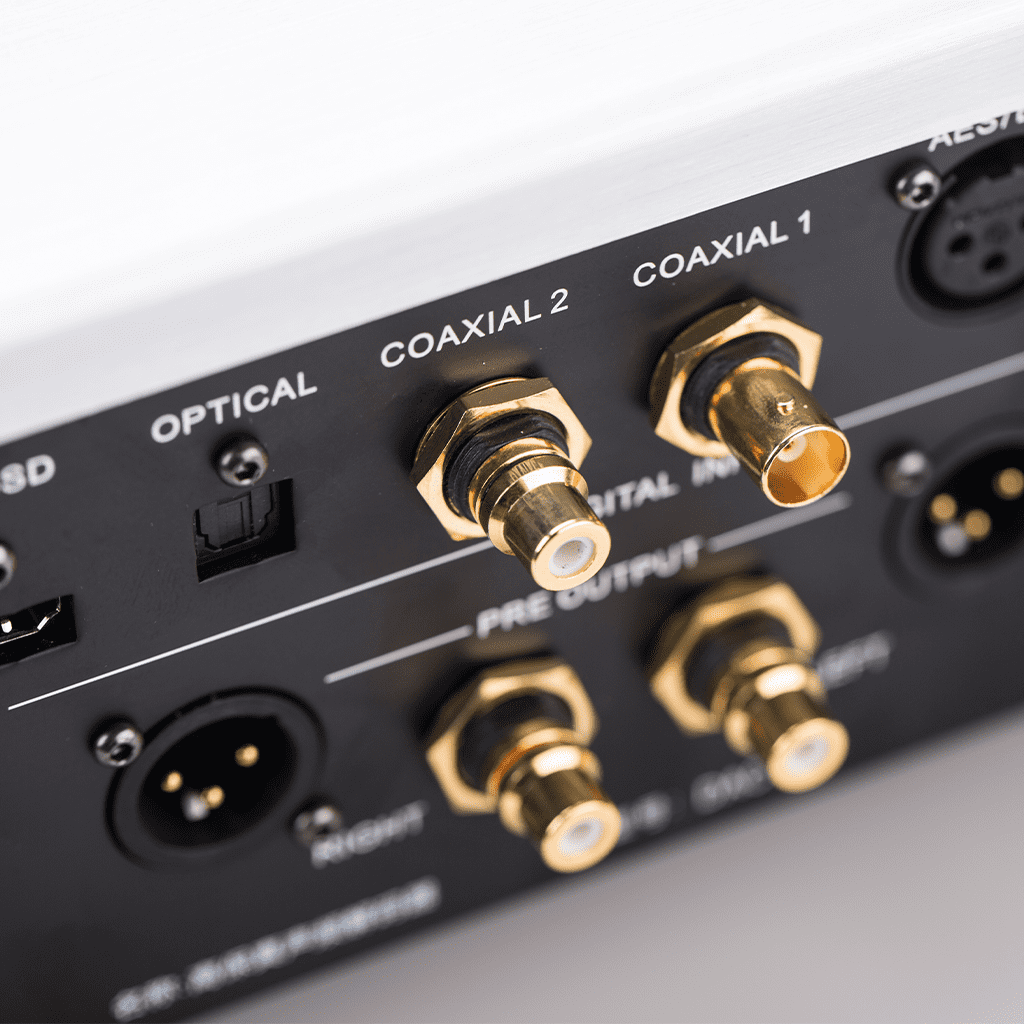

Incorporates six different input connections to match all digital sources.
Also adds a bespoke/de-jittered I2/DSD Input so you can connect to the Cayin iDAP-6, and Cayin N8 for the best performance.

  • Coaxial RCA*
  • Coaxial BNC*
  • Optical
  • I2S/DSD
  • AES/EBU*
  • Asynchronous USB-B

Coaxial input can also support up-to 384kHz with a standard 75 coaxial cable.

Supports Full Reference Pre Amplifier Facility
Pre out is offered as a high end option with a fully independent amplification circuit.

Line Out & Pre Out Support Both Vacuum Tube and Transistor Configurations
Select different output timbres (Transistor or Vacuum Tube) so you can fully enjoy your music, to your taste.

Transistor single-ended and balanced amplification circuit with independent design
The single-ended amplification circuit uses OPA228P
The balanced amplification circuit uses two MUSES02

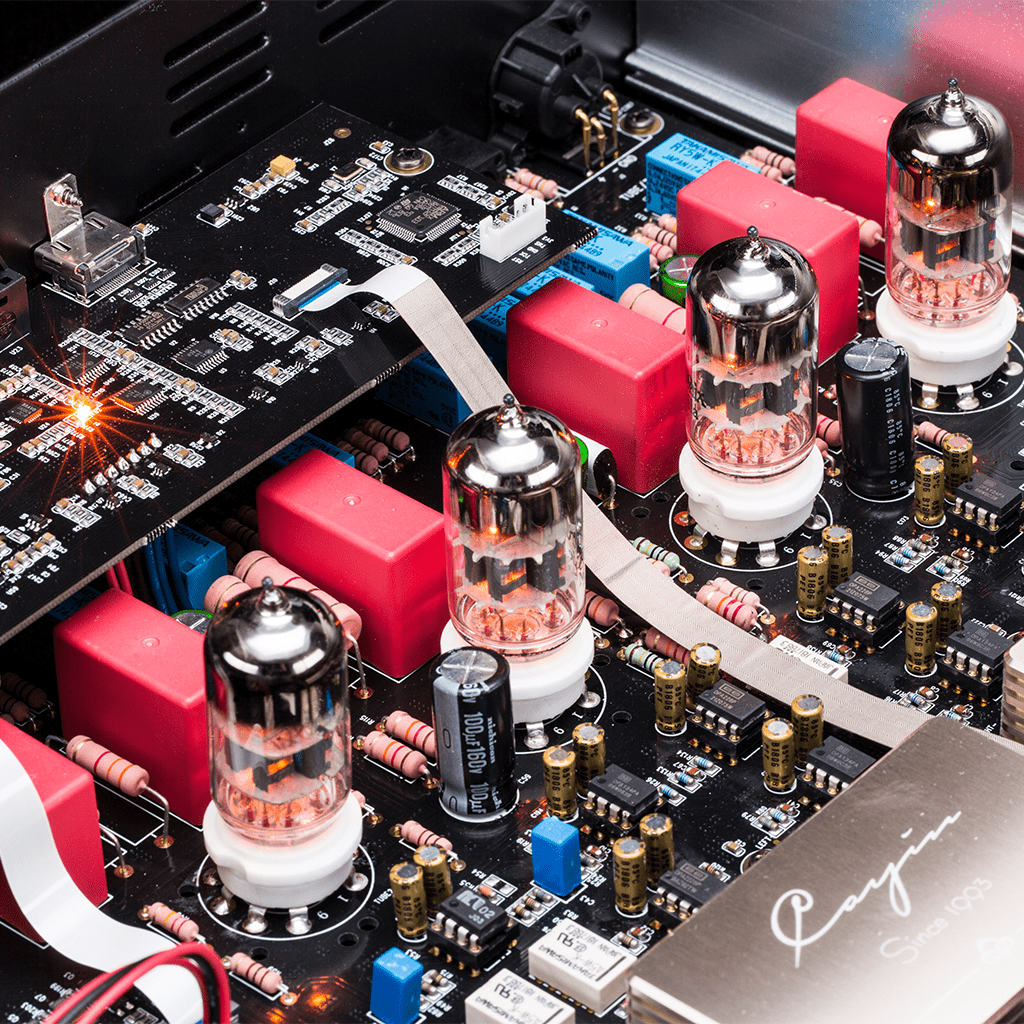

Uses two 6922EH tubes in each of the single-ended circuit and balanced amplification circuit
Uses the same vacuum tubes in balanced and single-ended output modes.

Features

  • Two ESS9038PRO decoding IC's are applied in the CS-100DAC
  • Class A design is applied in I/V conversion circuit. Two OPA228P are used in each left and right channel.
  • The exceptional OPA2228P is custom designed into the pre voltage amplification circuit, allowing for reference Pre Amplifier performance.
  • Two uber high tolerance Cayin toroidal power transformers are integrated into the CS-100DAC.
  • The CS-100DAC hs also been configured with two femtosecond crystals at :
    90.3168MHz
    98.304.MHz

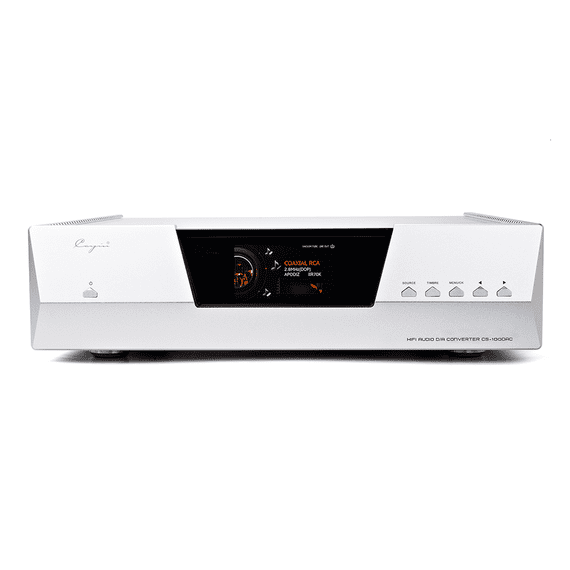

  • High Definition AMOLED 3.95" screen.

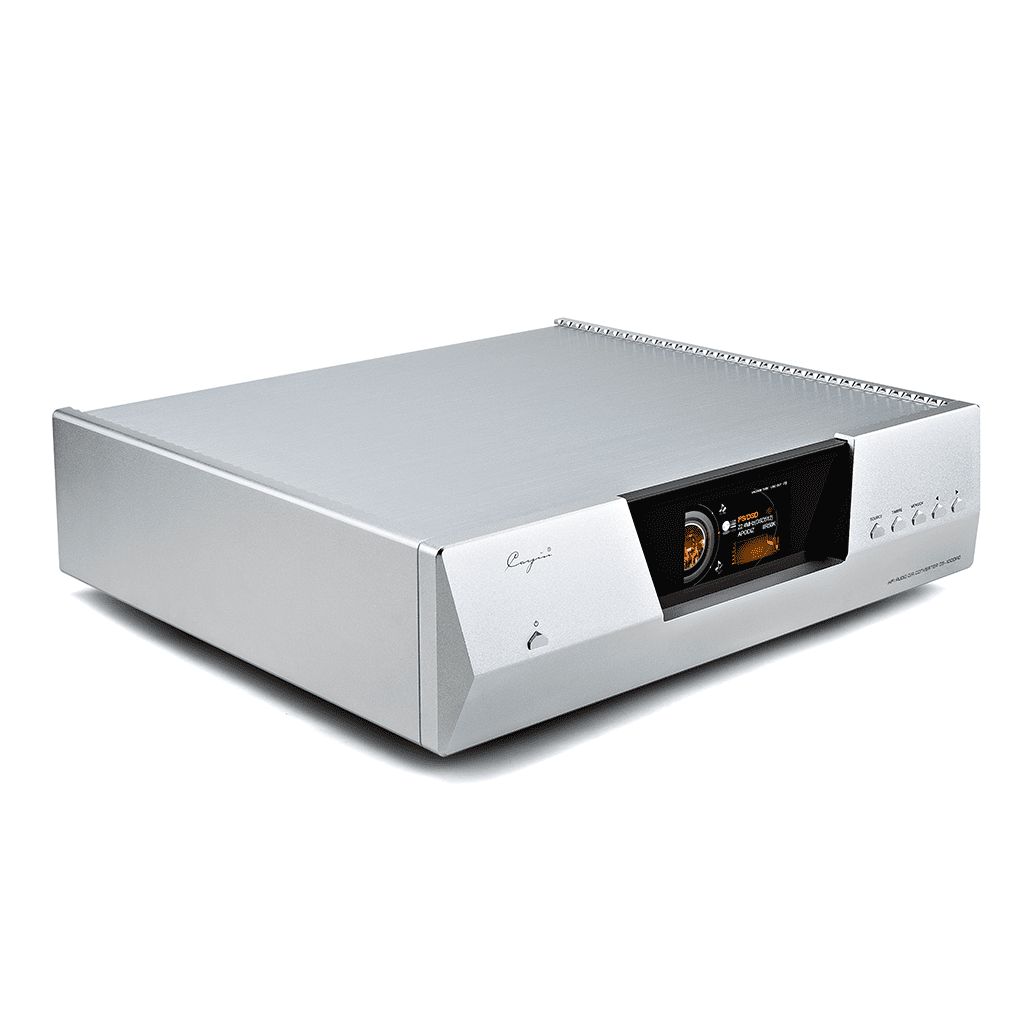

  • Special Aluminium Alloy is employed in the chassis and sub chassis design, promoting the best mechanical isolation properties.
  • The finest brushed aluminium is used on the top cover design, again this top cover is mechanically isolated from the other chassis components.

Technical Specifications

DAC chipset:
ESS9038Pro (x2)

Data processing capability:
I 2 S: up to 32Bit / 768kHz, DSD512
Fully Asynchronous USB: up to 32Bit / 768kHz, DSD512 native, DoP256

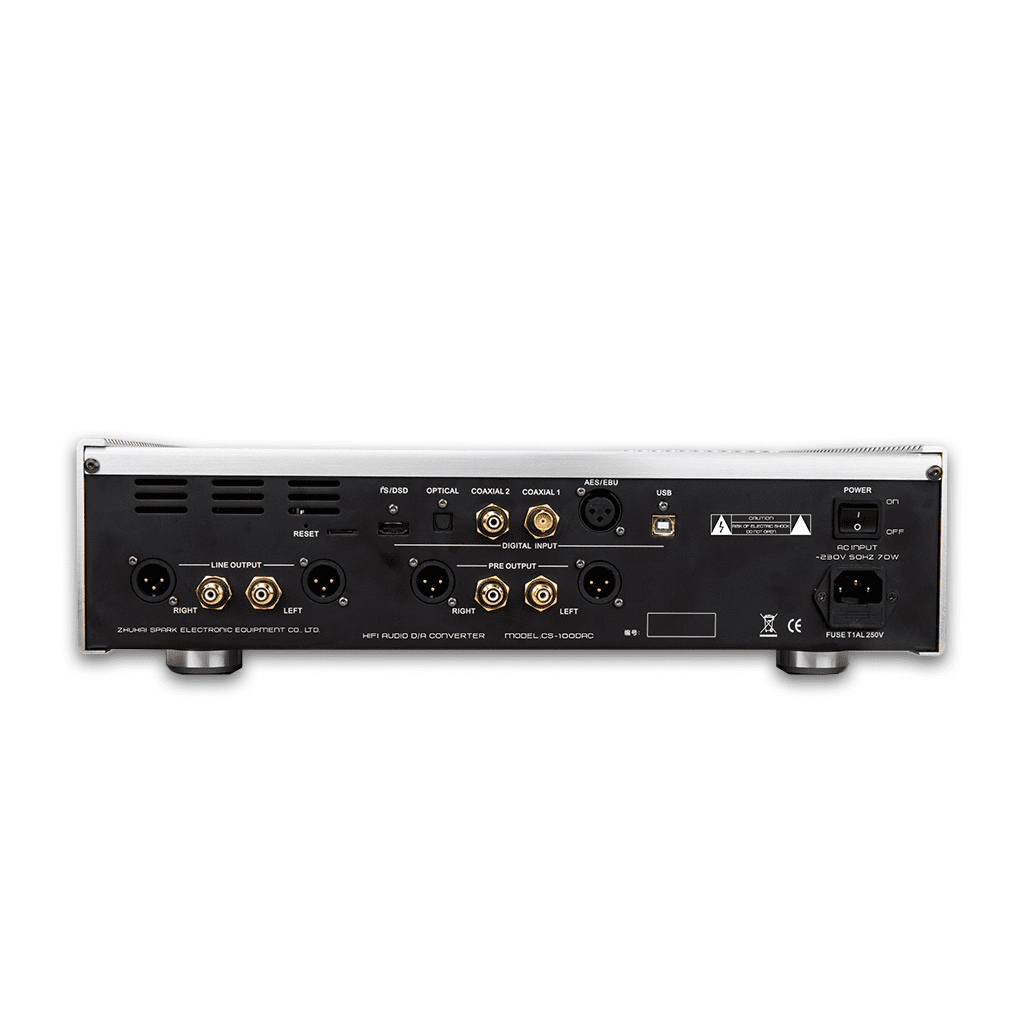

outputs:
XLR (balanced), RCA (unbalanced)
Single-ended Line Out (RCA): 2.3V + 2.3V (transistor or tube)
Single-ended Pre Out (RCA): 7.0V + 7.0V (transistor or tube)
balanced line out (XLR): 4.6V + 4.6V (transistor or tube)
balanced Pre Out (XLR): 14.0V + 14.0V (transistor or tube)

Tubes:
4 x 6922EH

Dimensions (LxWxH):
440mm X 392mm X 126mm

Weight (kg):
12 kg

Includes :
Remote Control
