The fundamental idea behind the concept Signature remains as purposeful and user-friendly as its predecessor, as all parameters of the individual components are already perfectly set at the factory.

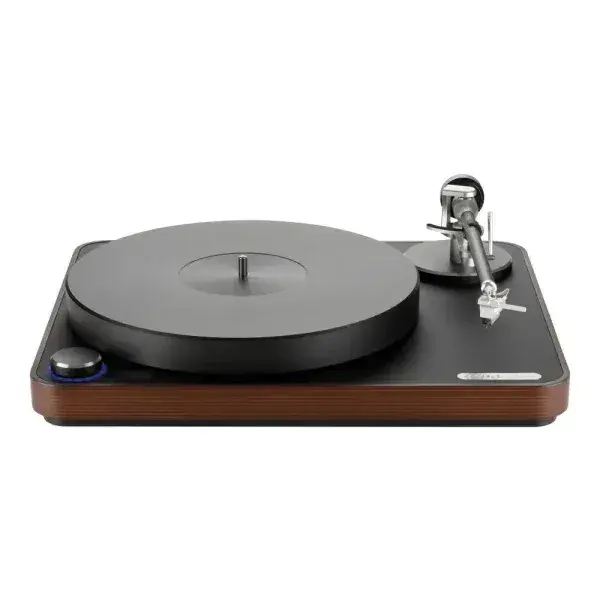

The core of the turntable body is made of medium-density fiberboard or optionally, solid wood layers bonded under high pressure. The top layer of the turntable is made of specially satin-finished plastic. This composition minimizes resonances and ensures a perfect visual appearance.
The platter is driven by a polished flat belt from a completely decoupled direct current motor to minimize the transmission of interference noise. A generously dimensioned, highly stable, and outsourced power supply takes care of the voltage supply.
The new control technology with integrated auto-calibration, new adjustment options, and additional Tacho-Speed-Control („TSC“) achieves even better measurements in terms of uniformity and impulse stability. The entirely newly developed Tacho-Speed-Control constantly monitors the speed and provides real-time feedback to the control electronics. This allows it to immediately respond to changing influences such as decreasing belt tension, friction of the platter bearing, or temperature fluctuations. Additionally, TSC performs an automatic calibration at every restart. With the new concept Signature, manual recalibration is also possible at the push of a button on the back of the turntable.

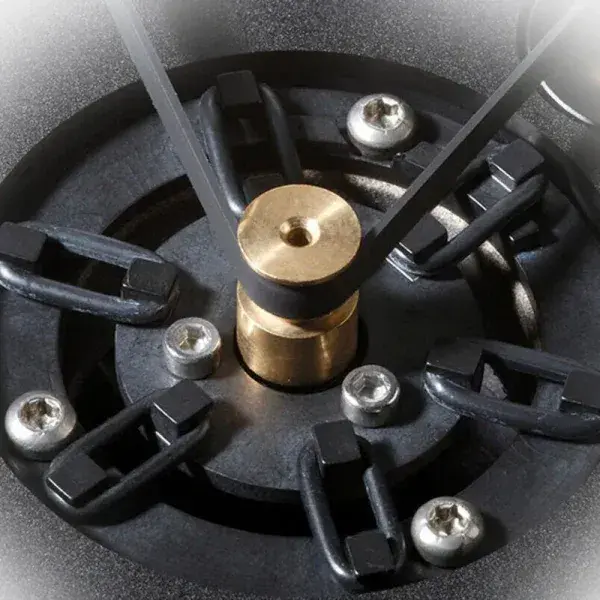

Several O-rings („IMS“) improve the motor suspension decoupled from the chassis, which is adopted in a modified form from the Reference Jubilee. Simultaneously, the new encoder forms the basis for even more features of future generations and expansion stages.
In terms of design, the concept Signature stands out. The redesigned surface with an illuminated touch controller allows for intuitive operation of the turntable and sets new design accents.

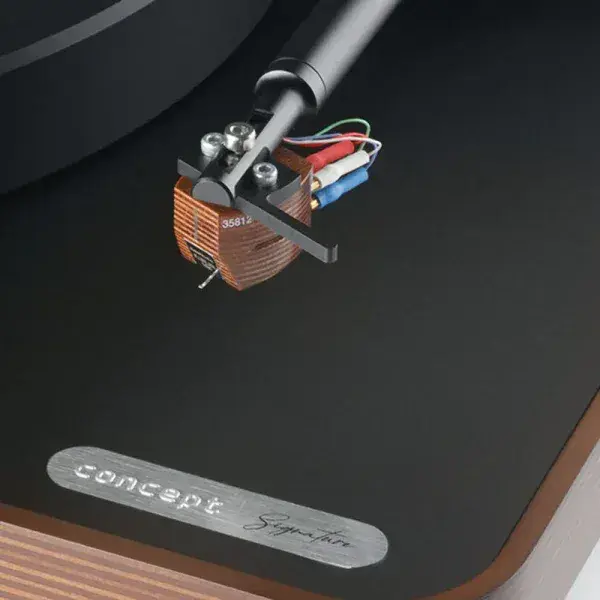

The wide selection of Clearaudio tonearms and cartridges leaves nothing to be desired in terms of modularity. Perfect combinations for the concept Signature turntable include all MM cartridges, all MC cartridges from concept mc to Talisman V2 Gold, as well as all tonearms from concept to Profiler. Additionally, the concept clamp, a specially designed acrylic cover, and the nano phono V2 / smart phono V2 phono preamplifier or one of the two upgrade power supplies, Professional Power 12V / smart power 12V, from Clearaudio are recommended.
Specifications
Physical characteristics:
| Weight |
Approx. 7.5kg (incl. tonearm and cartridge) |
| Dimensions (HxWxD) |
Approx. 420 × 350 × 125 mm (with tonearm) |
| Enclosure material |
Medium-density wood: silver / black Pressure-formed solid wood: wood / dark wood |
Technical specifications:
| Platter |
30mm / 1.18 inch main platter, made out of synthetic material with high-density and excellent dimension / precision CNC machined aluminium sub-platter. Platter Bearing: Polished and tempered steel spindle in a sintered bronze bushing, running on a teflon thrust-pad |
| Speed |
33 ⅓, 45 |
