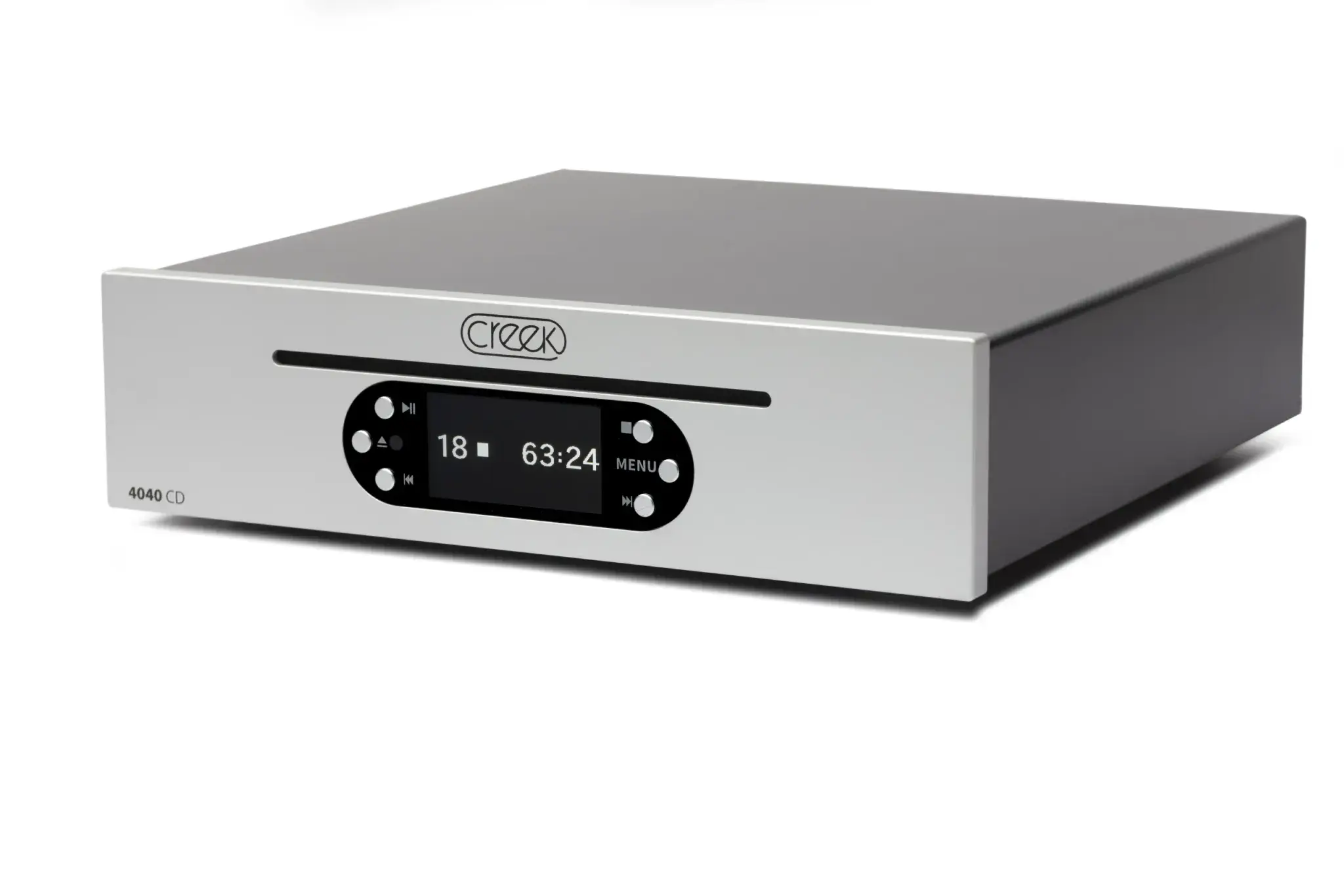

Creek 4040 CD
The 4040 CD suits the most demanding applications. Whether used in a domestic audio or desktop system, it is simple to use and luxurious in operation. Created to provide a totally immersive Hi-Fi experience
With more than five decades experience in the audio business, I have witnessed many electronic developments including the introduction of the revolutionary Compact Disc Player in 1982. Creek Audio introduced its first CD player in 1990 with the highly acclaimed CD60. Creeks latest 4040 CD is a no less important milestone
Mike Creek Creek Audio
OVERVIEW
Compact Discs may be a 20th century legacy format, but most people still have a perfectly good collection of CDs that, if not used, will be collecting dust, or sent to landfill. Your CD music is wholly owned and not borrowed from the cloud. So, why not exploit what is yours?
SIZE
The diminutive 4040 CDs case, with its extruded aluminium front panel, matches the 4040 A integrated amplifier. Technical advances and circuit miniaturisation over the last 40 years no longer need heavy casework and power supplies to extract digital music accurately from CD.
CONTROL
The 4040 CDs intuitive user interface and sophisticated menu system are easily navigated by remote control or discreet front panel push buttons.
DIGITAL OUTPUTS
The 4040 CD offers three types of digital outputs for the discerning audiophile, including transformer-isolated SPDIF (via coaxial RCA), professional balanced AES-EBU (via XLR), and optical TOSLINK.
DAC
The 4040 CD provides a useful built-in DAC for convenient stand-alone analogue audio output, via a pair of RCA sockets. However, to ensure the highest quality audio reproduction, it is recommended to connect to the 4040 A by SPDIF coaxial or optical digital output, to leverage the amplifiers excellent ES9018K2M ESS Sabre32 Reference DAC.
POWER SUPPLY
The key to the 4040 CD transport / CD Players impressive performance and small size is found in its efficient and rock-steady external DC power supply. The multi-region power supply adapter provides a solid 12V DC voltage to feed the 4040 CDs internal voltage stabilisers that power every part of the circuitry.
STANDBY
Audio signal sensing enables the 4040 CD to reduce power consumption by powering down non-essential circuitry, when not required, to less than 0.5W. Timeout can be adjusted in the menu.
CD QUALITY
Properly recorded and well-maintained CDs can still provide resolution equal to most streamed music. The Compact Discs native 16 bit 44.1kHz format is adequate for most music replay and is not compressed. By comparison, most streamed music undergoes some form of compression to shrink its file size, with consequent losses. As a bonus, CDs provide a positive tactile experience and provide artist and title notes.
Technical Specifications
| Digital outputs: 1x coaxial RCA, 1x optical TOSLINK, 1x AES-EBU balanced digital XLR |
| Audio output: Stereo audio output via RCA sockets |
| Mains voltage: Auto-ranging from 100V to 250V, 50/60Hz |
| Power Consumption: 20W, <0.5W Max, Standby |
| Auto Standby: Powers-down after a pre-set time with no signal. A front panel button or remote button press wakes the CD from standby, together with a useful 12V trigger Standby timeout is adjustable in the menu |
| Finish colours: Optional silver or black front panel. Black outer cover |
| Weight: 1.8kgs (4lbs) net, <3kgs (6.6 lbs) gross |
| Size W/H/D: 21.5 x 6 x 22 cm (8.46 x 2.36 x 8.66) |
