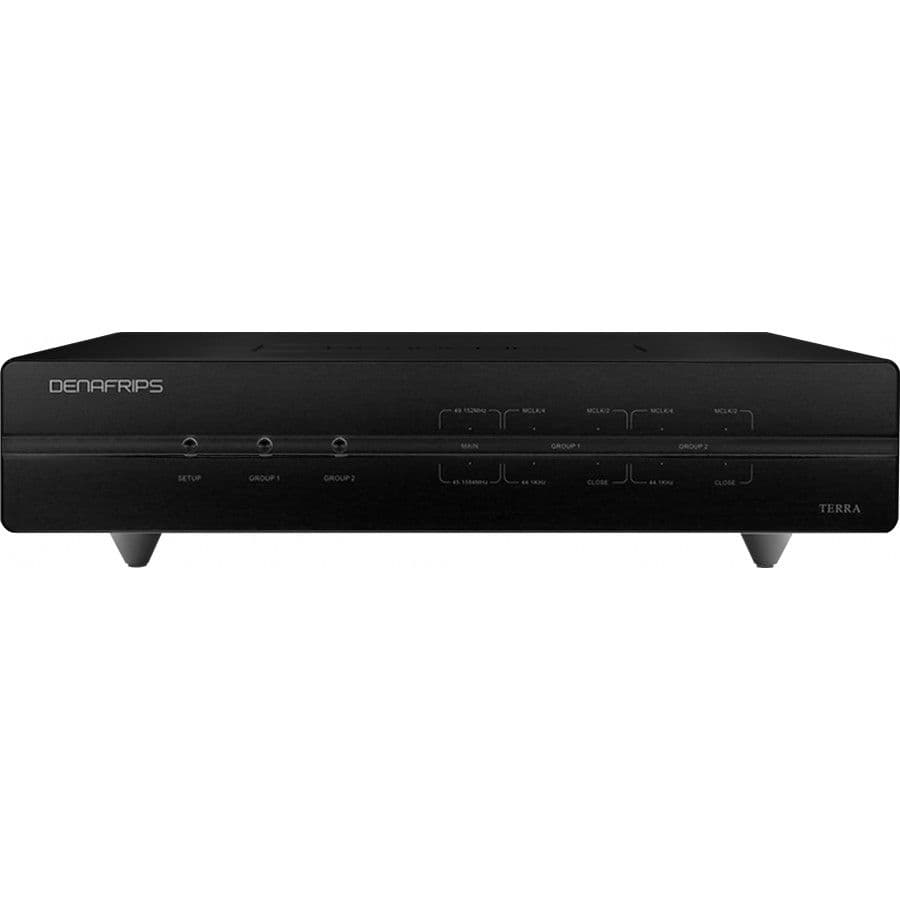

DENAFRIPS TERRA Master Clock | Audio Emotion
DENAFRIPS TERRA Master Clock | Audio Emotion
DENAFRIPS TERRA Master Clock | Audio Emotion

Product Description

Terra is a Master Clock Generator designed for High-End Audio applications. Our design goal was to push the limits of what audio equipment can be.

The quality of the CLOCK is one of the profound elements and foundation of superior sonic performance. The lower the jitter, phase noise, as well as stability of the clock, often, improves the sound quality of the digital audio equipment.

HIGH PRECISION OCXO

Terra is equipped with high precision Oven Controlled Crystal Oscillators (45.1548MHz, 49.152Mhz), powered up by high current multi-stages Linear Power Supply with oversized O-Core Transformer.

​Lots of attentions were put in to increase the performance factors of the power supply - low noise, high slew rate and high current. These provide the OCXO adequate DC supply, hence, results in great thermal stability and low level crosstalk.

DESIGNED FOR HIGH END AUDIO

The MCLK1/2/3/4 CLOCK-OUT frequencies are configurable manually by the intuitive front panel to suit various application.

CLOCK OUT (Fixed)

  • 45.1584MHz, 49.152MHz

​CLOCK OUT (Adj)

  • 44.1kHz, 48kHz
  • 11.2896MHz, 12.288MHz
  • 22.5792MHz, 24.576MHz

Specifications

Product type Audio clock
Fixed outputs 2x 45.1548MHz
2x 49.152MHz
Adjustable outputs 44.1kHz, 48kHz
11.2896MHz, 12.288MHz
22.5792MHz, 24.576MHz

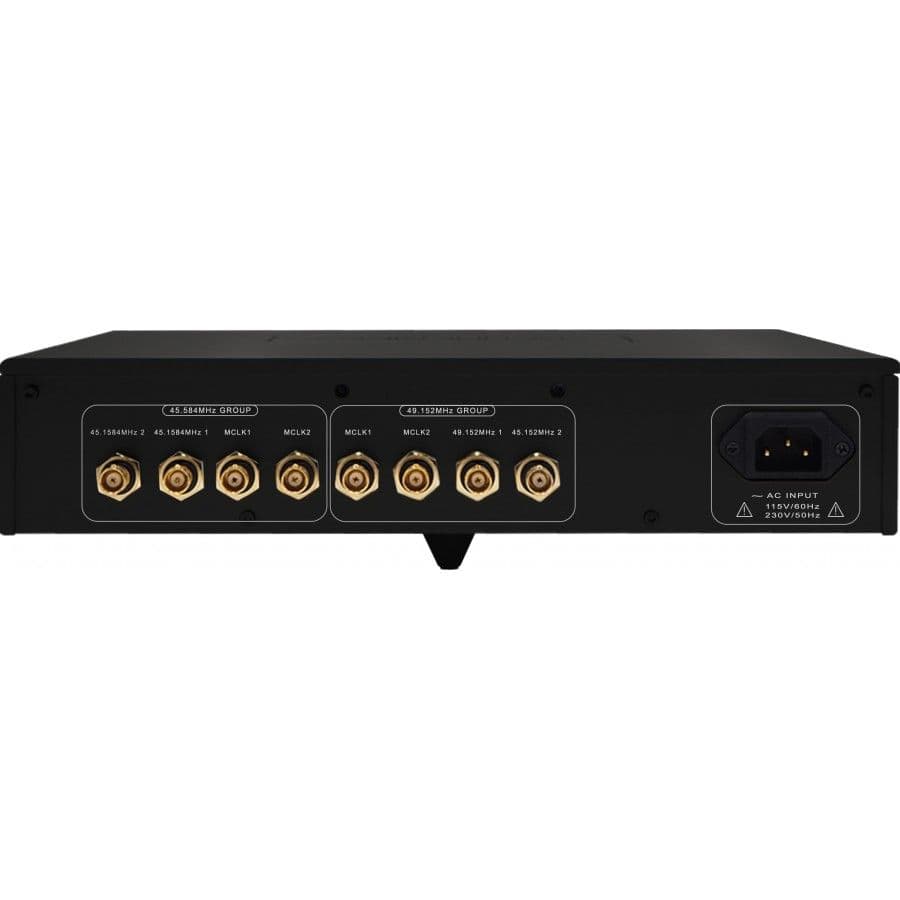

Output connectors BNC 75Ω
Oscillators OCXO

GENERAL
Supply voltage 100-240VAC, 50/60Hz (manual selection)
Consumption ≤ 20W
Dimensions 340 x 260 x 66mm
Weight 6kg
Package 1x Denafrips Terra
1x Power cord

Specifications

Product Type
Master Clock
EAN
4907034223046
GTIN
4907034223046
Brand
Denafrips
Condition
New
Product Code
DENAFRIPS-TERRA-B
