Founded in 1997 and headquartered in Sydney, Australia, DEQX is a pioneering audio technology company renowned for its advanced loudspeaker, crossover, and room-correction solutions.
Founded by Kim Ryrie, a co-founder of Fairlight Instruments, DEQX builds on decades of innovation in digital audio processing to deliver unprecedented accuracy in sound reproduction.
The company's patented technologies analyse and correct timing, phase, frequency, and room-acoustic distortions at the microsecond level, enabling audiophiles, recording professionals, and music enthusiasts to experience recordings with exceptional clarity, realism, and spatial precision.
Recognized worldwide for its engineering excellence, DEQX has become a trusted name in high-performance audio, continuing its mission to bring listeners closer to the original musical performance through groundbreaking digital signal processing and calibration technology.
The Pre-8 has all of our Pre-4’s features but includes DEQX-HD-Active crossovers. It provides digital output options for all channels and can also be used with passive speakers.
The new DEQX Gen4 speaker calibration and room correction processors feature an order-of-magnitude improvement in resolution, all-new digital and analogue hardware and unparalleled connectivity.
At a glance :
- 4 digital inputs (1 x XMOS USB Type B 2.0 Optional)
- 3 analogue inputs with optional in-built Dynavector MM phono preamp
- XLR Topology is True Balanced.
- Bluetooth and Network Streaming on the high-end Volumio platform
- 8-channel XLR and RCA outputs
- Complete DEQX-Active implementation
- Per-driver impulse response correction
- Subwoofer integration
- Speaker calibration and room correction
- 64-bit multicore FIR processing
- Headphone output with Para EQ adjustment
- Tube-like analogue warmth
- Fully balanced digital, analogue and clocking circuits
- Reference-grade ADC/DAC
Introducing the DEQX Cloud
The DEQX Gen4 processors interface over the network to the DEQX Cloud™. The result is intuitive, cross-platform, zero-install speaker calibration and room correction.
Breath-taking audio performance
An ESS Sabre Pro ADC and DAC embedded in our custom circuitry and ultra-low noise power supplies deliver –115 dB THD+N (preliminary) from analogue input to analogue output. Our most transparent audio processor ever.
Unlocking next-gen performance
DEQX Gen4 massively surpasses our previous models in processing horsepower. A powerful hexacore ARM processor delivers higher time-domain resolution and better low-frequency phase resolution.
Unsurpassed usability

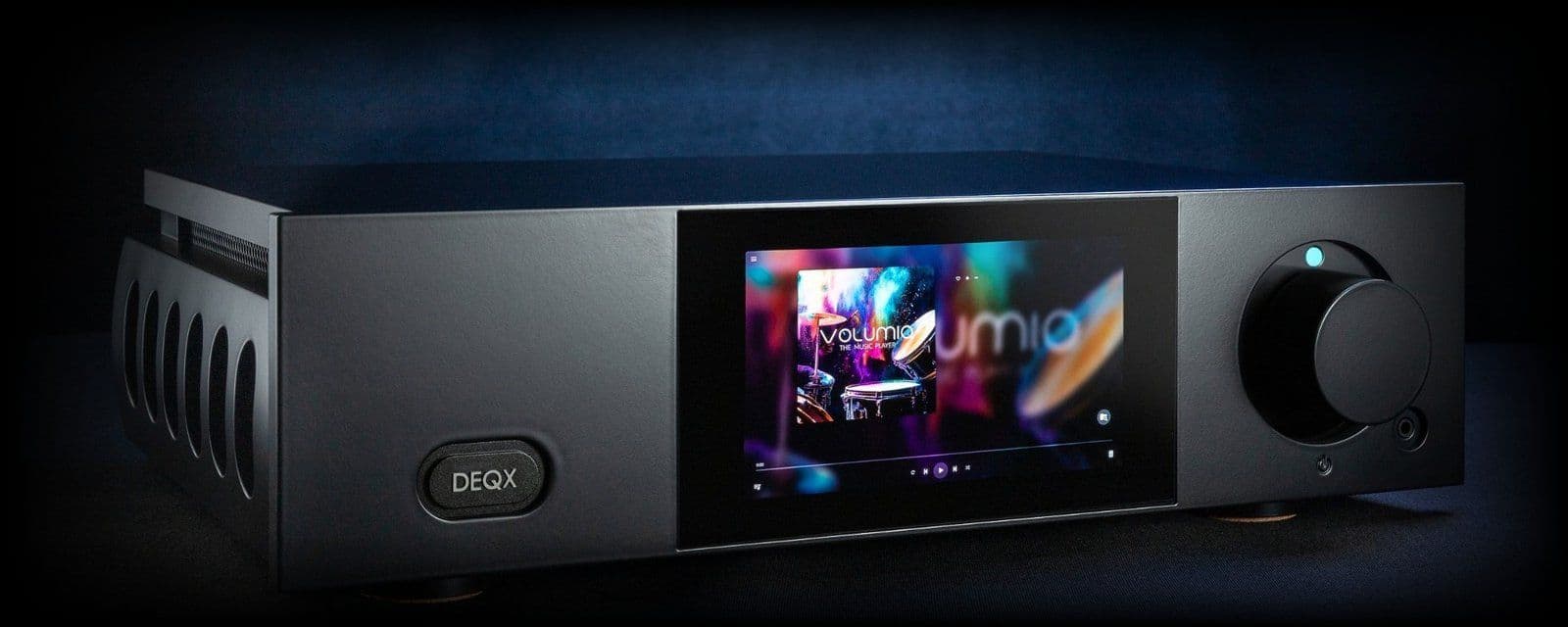

We've refocused on hardware usability, with a carefully selected set of features for each model, a large volume control with LED readout and 5.5-inch AMOLED touchscreen with customised glass front.
What improves when I integrate a DEQX solution in my home HiFi system?
- Three-dimensional imaging precision
- Spatial localization stability
- Transient realism
- Tonal balance accuracy
- Dynamic range expression
- Low-level detail resolution
- Overall reproduction realism
Specification

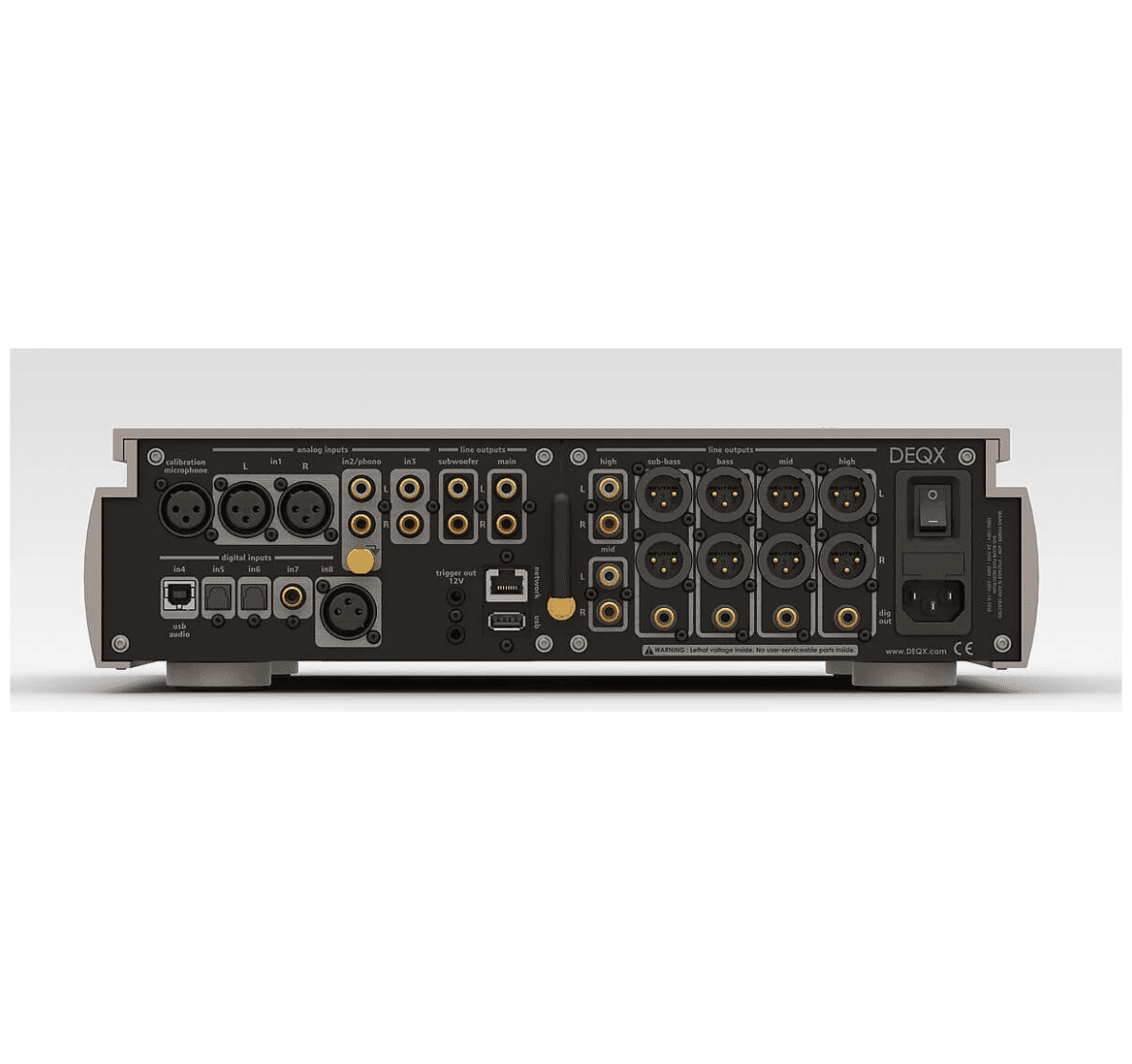

- Analogue Outputs : 4x Pairs XLR + 2 x Pairs RCA
- Digital Inputs : Optical x2, SPDIF x1, AES-3 x1 (XMOS USB Optional)
- Digital Outputs : Sub-Bass, Bass, Mid, Tweeter (SPDIF x4)
- Analogue Inputs : 1x LR Pair + 2x RCA Pair (or 1x RCA, 1x MM Phono)
- Display : HD AMOLED
- Processing : ARM HEX Core 64-bit, 64K Taps
- Streaming : Roon, Tidal (Native, Connect), Qobuz, Internet Radio, Attached (USB, NAS) UPnP, DNLA, Bluetooth 5.0, AirPlay Compatible, Web-Radio
Dynavector Phono Preamp MM (optional)
- Frequency Response: RIAA +/-0.2dB, 20Hz - 20kHz
- THD: 0.001% (1kHz)
- Input Impedance: 47kΩ // 220pF
General Specifications
- Mains Voltage Range: 100-240VAC, 50-60Hz
- Dimensions: Width 380mm, Height 110mm, Depth 300mm
- Display: 5.5" HD Touch Sensitive AMOLED
- WiFi: 802.11 a/b/g/n/ac
- Bluetooth: 5
- Trigger Out: 2 x 12V Phono
Software - DEQX Cal-II
- Web Browser Based UI: PC / Tablet / Phone
- DEQX Cloud Processing
- Active Crossover: Up to 4-way
- Sample Rate Converter: TI to 192kHz
- Crossover Filters: Linear Phase, Linkwitz Riley, Butterworth
- Slopes: 6dB/octave to 200dB/octave
- EQ Filter Types: FIR, IIR, DEQZ Low Latency FIR
- ParaEQ: Separate Left/Right Speaker plus Global Multiband
- Latency: Depends on filter type, FIR 10ms (video sync)
- TAPS: Typical 4K to 16K, up to 8 channels
