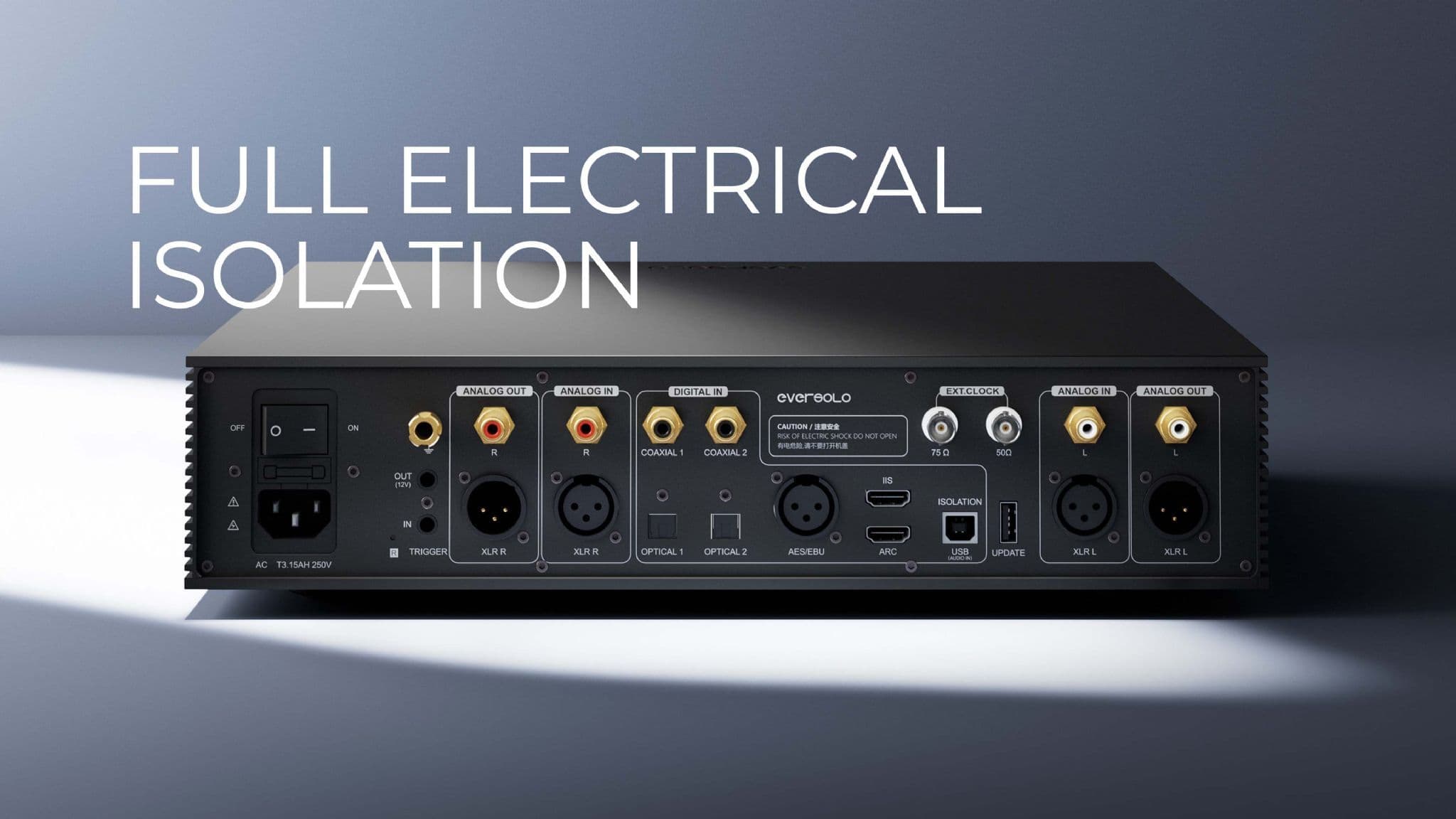

Fully Isolated Architecture (FIA™), which completely separates the digital and analogue domains to minimise interference and preserve signal purity.
Three independent linear power supplies individually power the left channel, system, and right channel, allowing each to operate in an ultra-low-noise environment.
Two sets of AK4191 + AK4499 DACs for independent left and right channels - AKM’s Velvet Sound™.
Fully balanced analogue preamplifier that employs precise dual-channel R2R volume control.
Eversolo Precision Core™ OCXO Temperature-Controlled Crystal Oscillator + Phase-Locked Loop Technology with External 10 MHz & 25 MHz High-Precision Clock Support.
FPGA Redefined - A built-in FPGA that shapes IIS data and refines the clock. Every digital signal is thus optimised to its purest form before reaching the DAC.

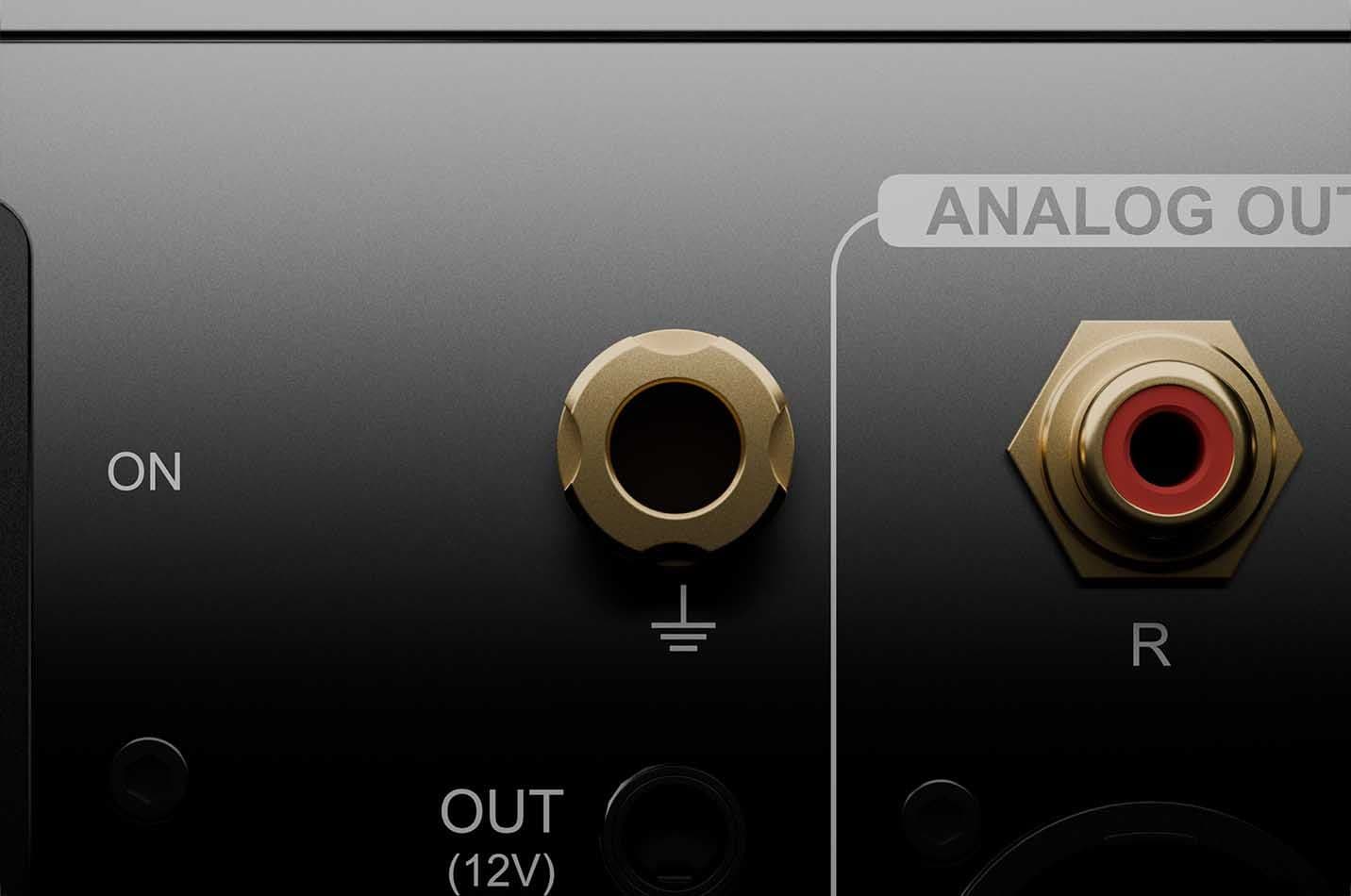

Grounding Post - The grounding post channels noise away, eliminating even minor interference and preserving the purity of each note.
8-Mode IIS Digital Audio Input - Via IIS digital audio input, offers 8 switchable modes and supports up to 768kHz/ 32Bit PCM and DSD512 Native.
Isolated AES/EBU Input - Features a dedicated isolated AES/EBU input, fully separating electrical noise between front-end and back-end devices.

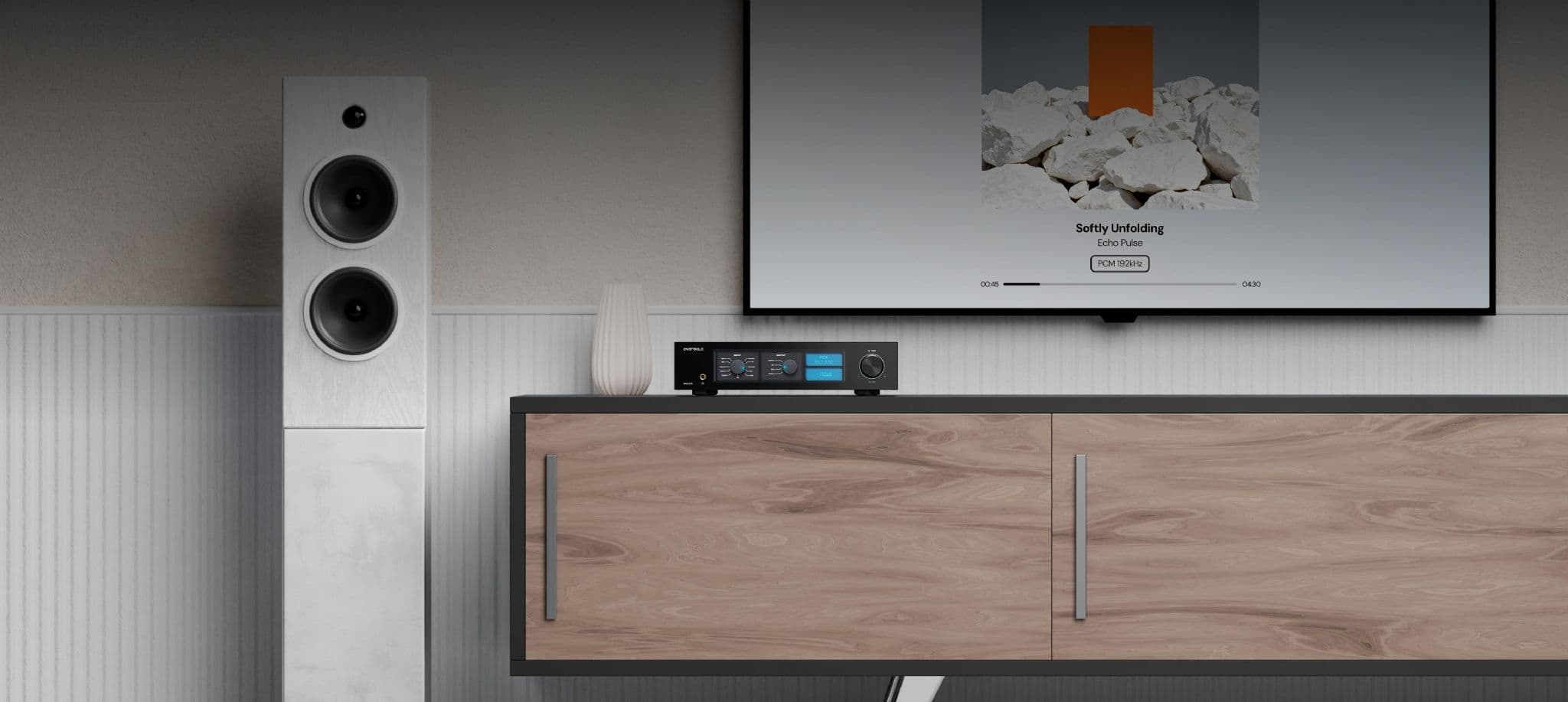

HDMI ARC Integration - Equipped with HDMI ARC, supporting both ARC and eARC modes for effortless integration into your home theatre system.
6.35mm Powerful Headphone Amplifier Module - Dedicated 6.35 mm headphone amplifier module that auto-detects impedance and adjusts gain.
High Quality Bluetooth Module - Features a built-in Qualcomm QCC5125 Bluetooth module.

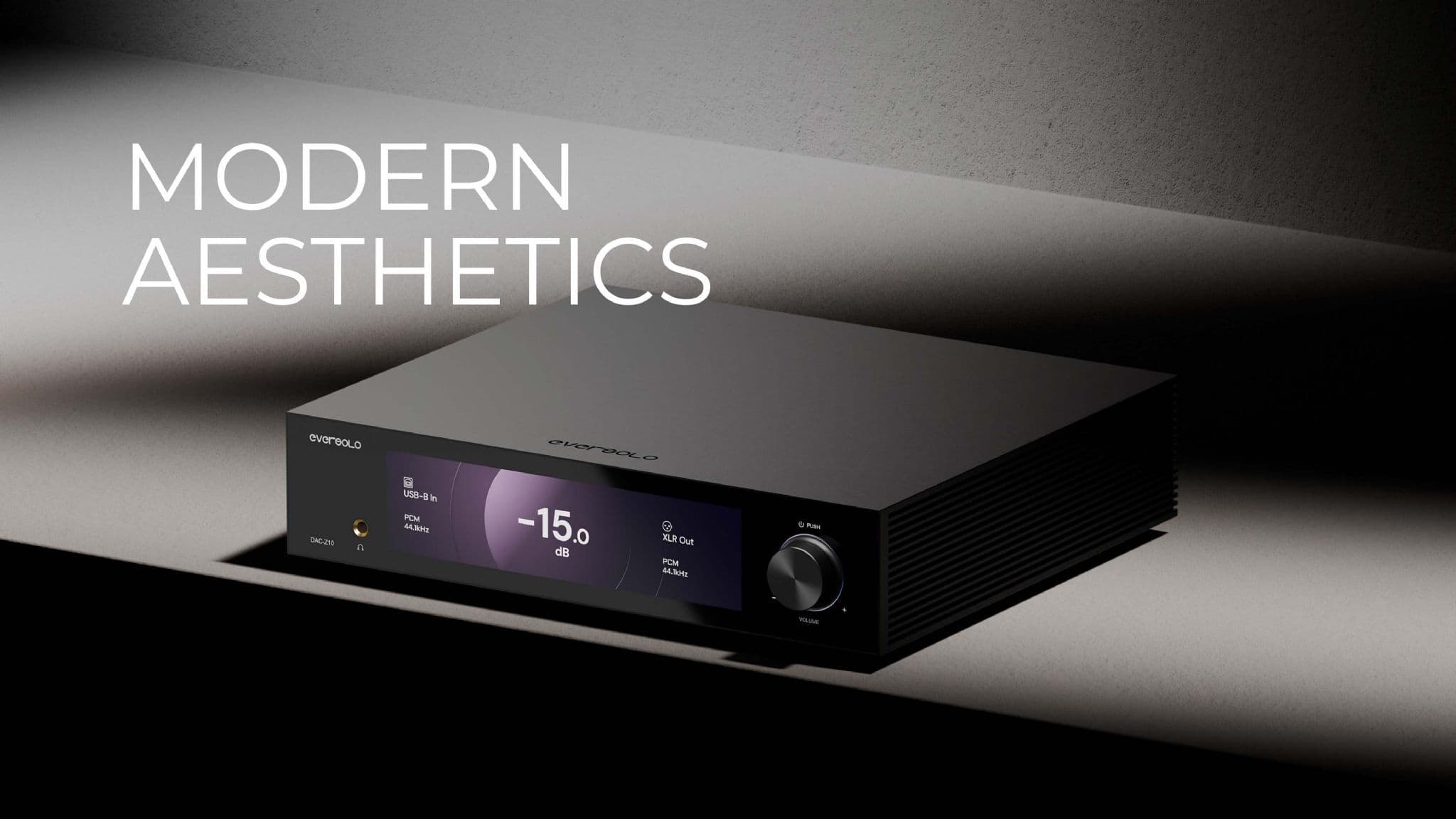

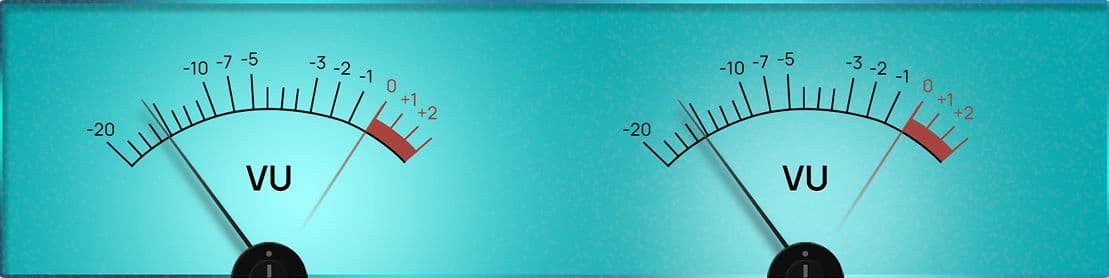

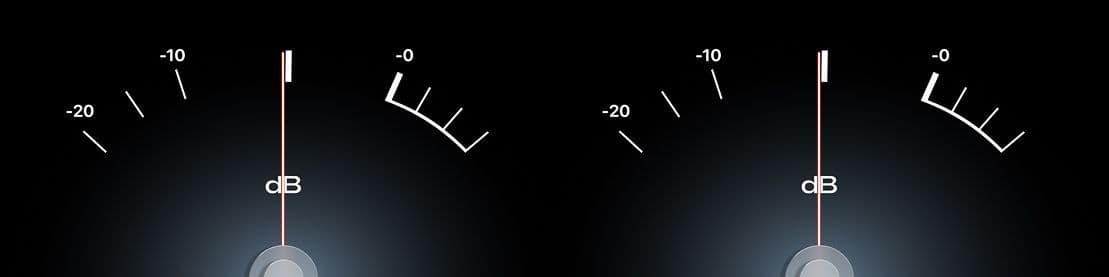

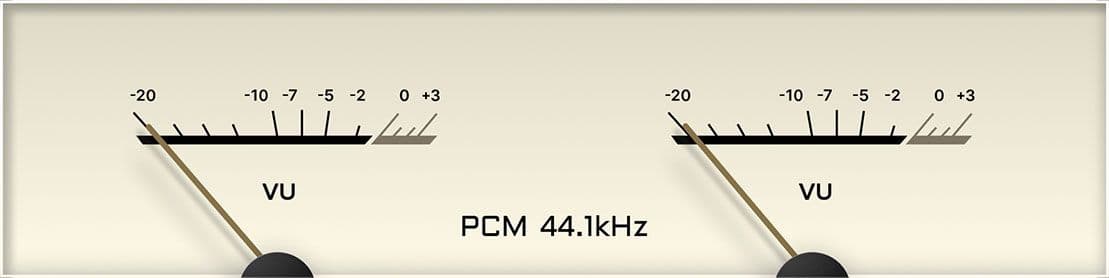

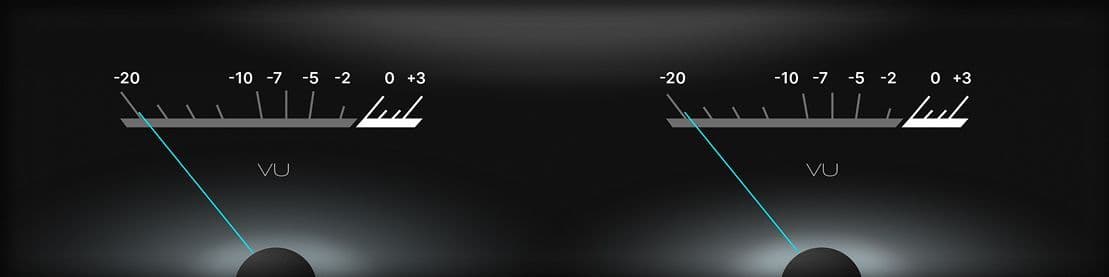

8.8-inch IPS touchscreen.
Left/Right Balance Gain - Offers up to 15dB of left/right balance gain adjustment.
Customise Your Sound - Offers 6 DAC filter characteristics, letting you switch freely to suit different musical atmospheres.
Full Function Remote Control.
High Quality USB and Trigger Cables Included.
Basic Parameters

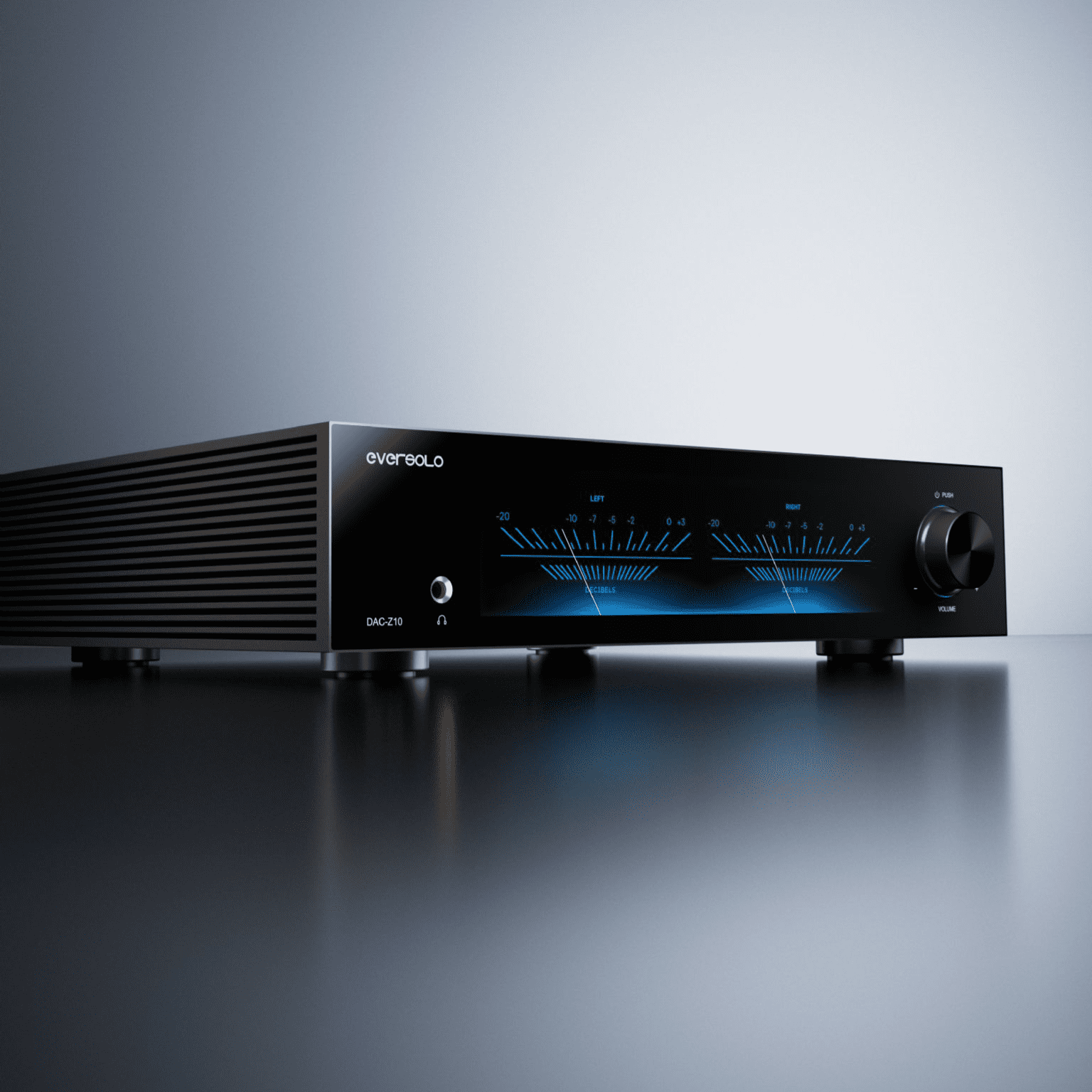

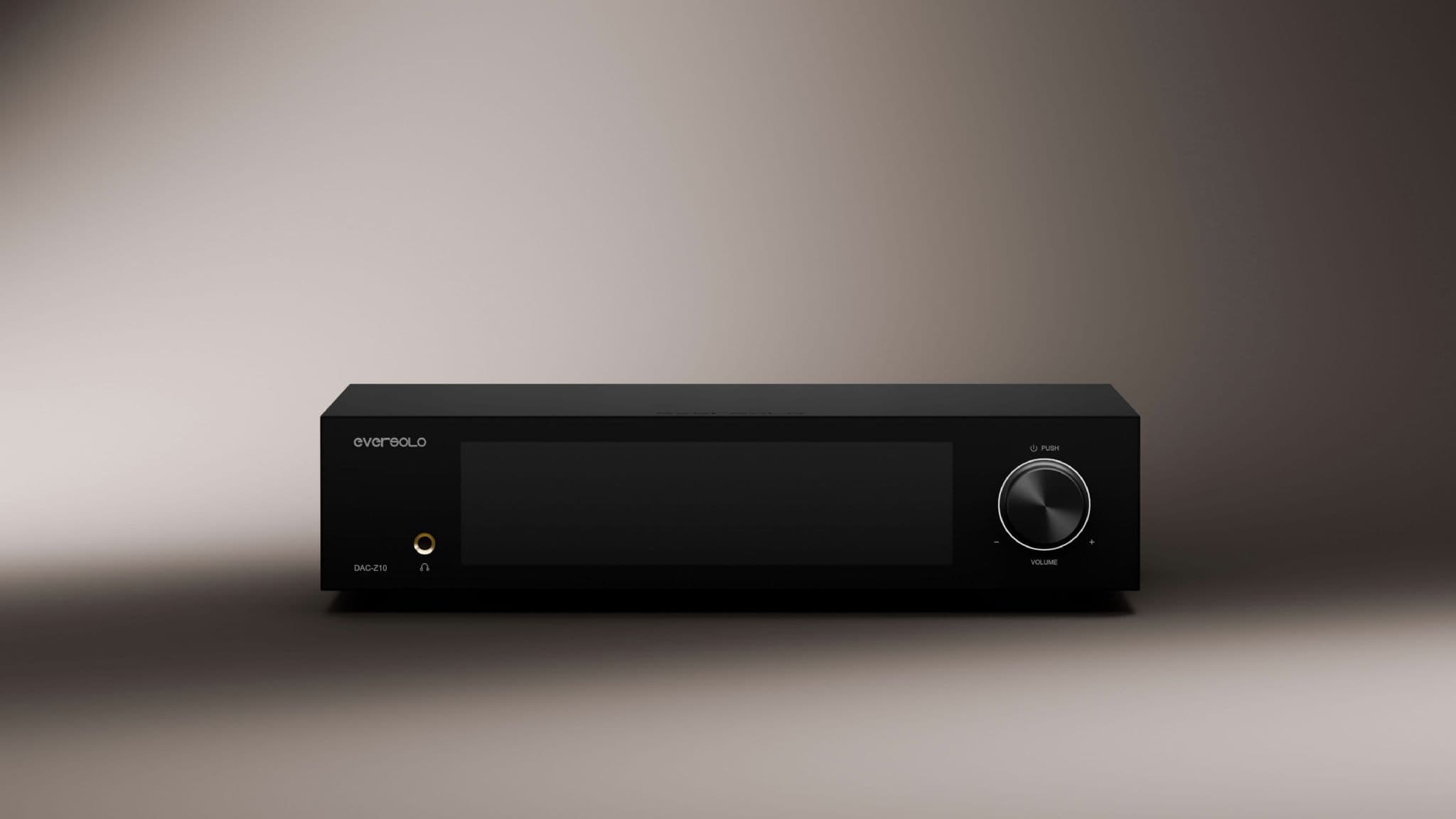

Model : Eversolo DAC-Z10
Display : 8.8" IPS
Chassis Material : Aluminium alloy
Main Processor : DCP8568
DAC : Left Channel: AK4191+AK4499 / Right Channel: AK4191+AK4499
Audio Processor : Multi-core USB audio processor
OPA Chip @ OPA1612
Power : Triple ultra-low noise linear power supplies

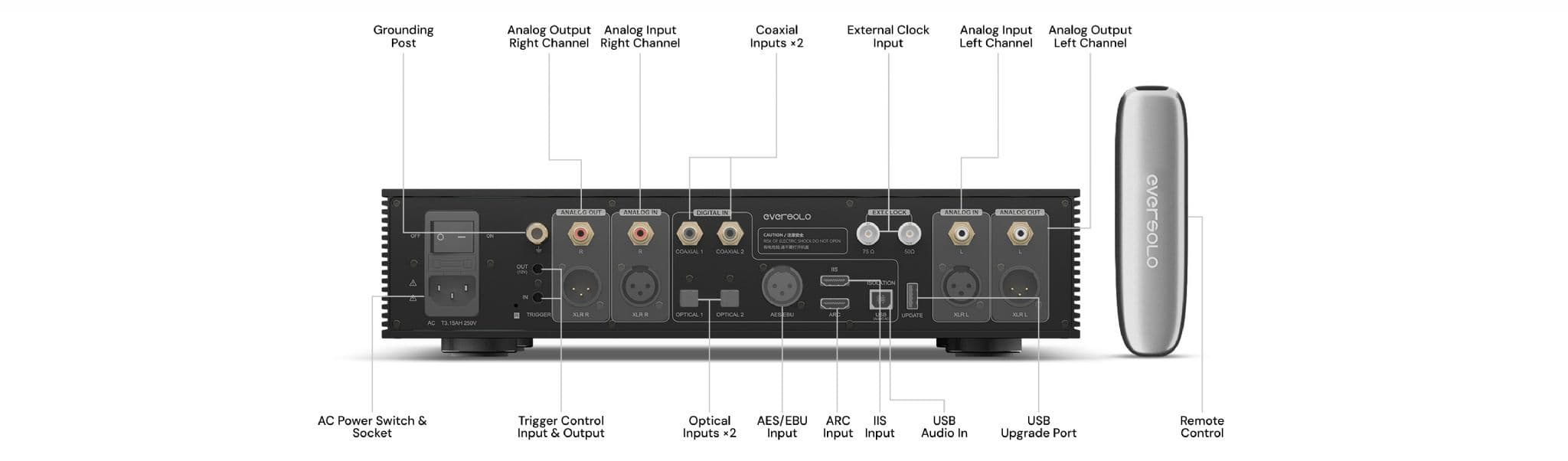

Audio Inputs and Outputs
Bluetooth Audio Input
Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols
USB-B Audio Input
Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit
IIS Input
Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit
AES/EBU Input
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Optical Audio Inputs *2
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Coaxial Audio Inputs *2
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
ARC Input
Up to Stereo PCM 192KHz/24Bit
Analogue Audio Inputs
XLR (Balanced), RCA
Analogue Audio Outputs
Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended

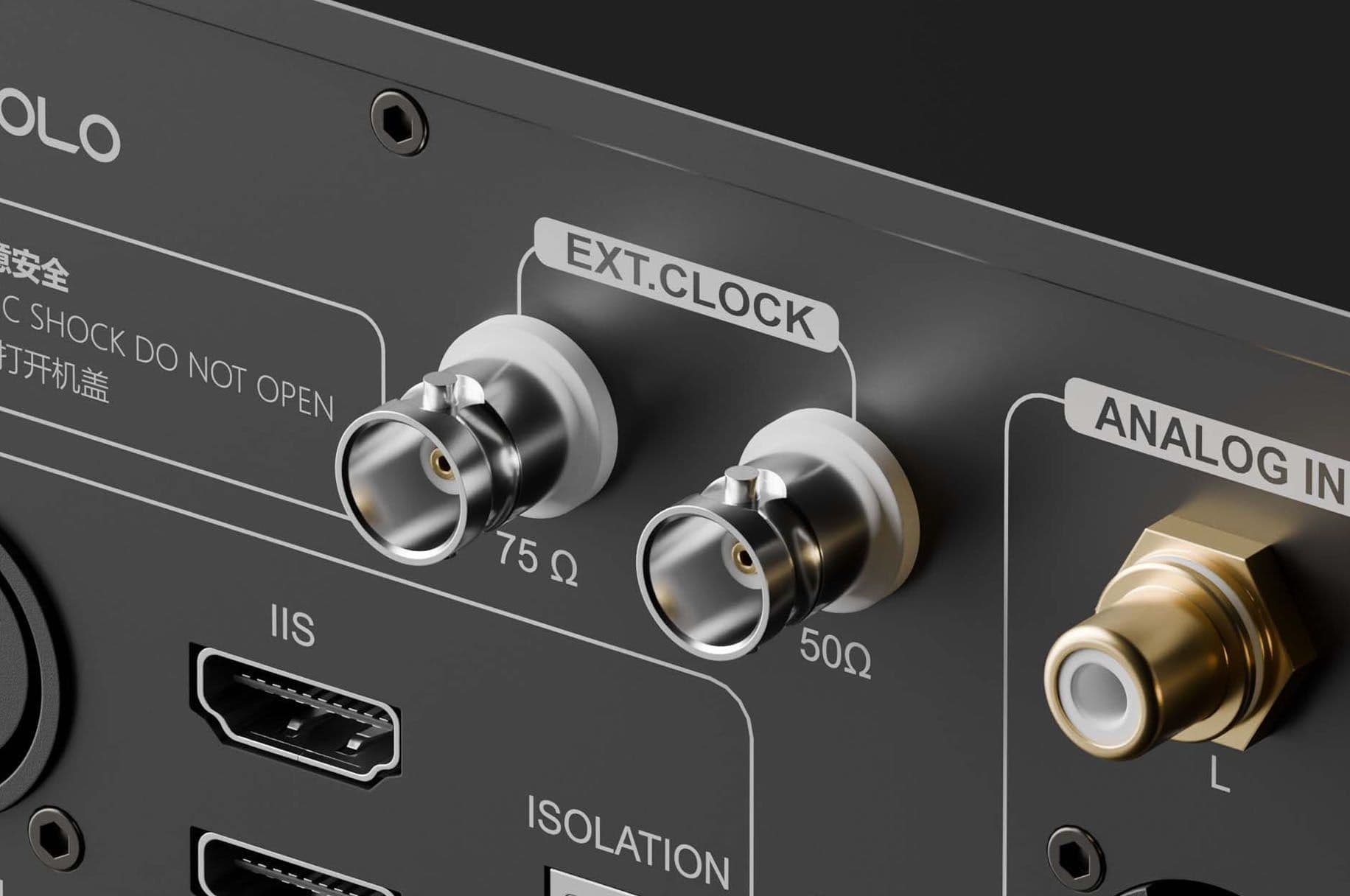

External Clock Input
Supports 10M/25M clock inputs with 50Ω or 75Ω impedance
Recommended Headphone Impedance
16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω)
Audio Characteristics
XLR Output Audio Characteristics
Output Level (Vrms): 5Vrms @ 0dBFS
THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz)
Noise @ No-wt: <1.2uVrms
SNR @ A-wt: 130dB
Frequency Response: 20Hz–20kHz (±0.1dB)
Crosstalk: -130dB
DNR @ A-wt: 130dB
RCA Output Audio Characteristics
Output Level (Vrms): 2.5Vrms @ 0dBFS
THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz)
Noise @ No-wt: <1.5uVrms
SNR @ A-wt: 128dB
Frequency Response: 20Hz–20kHz (±0.1dB)
Crosstalk: -123dB
DNR @ A-wt: 128dB
Headphone Audio Characteristics (Low Gain Mode)
Output Level (Vrms): 4Vrms @ 0dBFS
THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz)
Noise @ No-wt: <2.5uVrms
SNR @ A-wt: 124dB
Frequency Response: 20Hz–20kHz (±0.1dB)
DNR @ A-wt: 124dB
Headphone Audio Characteristics (Mid Gain Mode)
Output Level (Vrms): 5.6Vrms @ 0dBFS
THD+N @ No-wt: 0.00018% @ 1kHz (-115dB @ 1kHz)
Noise @ No-wt: <2.5uVrms
SNR @ A-wt: 126dB
Frequency Response: 20Hz–20kHz (±0.1dB)
DNR @ A-wt: 126dB
Headphone Audio Characteristics (High Gain Mode)
Output Level (Vrms): 7Vrms @ 0dBFS
THD+N @ No-wt: 0.00013% @ 1kHz (-118dB @ 1kHz)
Noise @ No-wt: <2.5uVrms
SNR @ A-wt: 127dB
Frequency Response: 20Hz–20kHz (±0.1dB)
DNR @ A-wt: 127dB
Other Information
Power Supply : AC 100~240V 50/60Hz
USB Port : USB2.0*1（only for firmware upgrade）
Control Methods : Touchscreen control, remote control, mobile App control
Rated Power Consumption : 32W
Dimensions : 365mm (L) × 310mm (W) × 78mm (H)

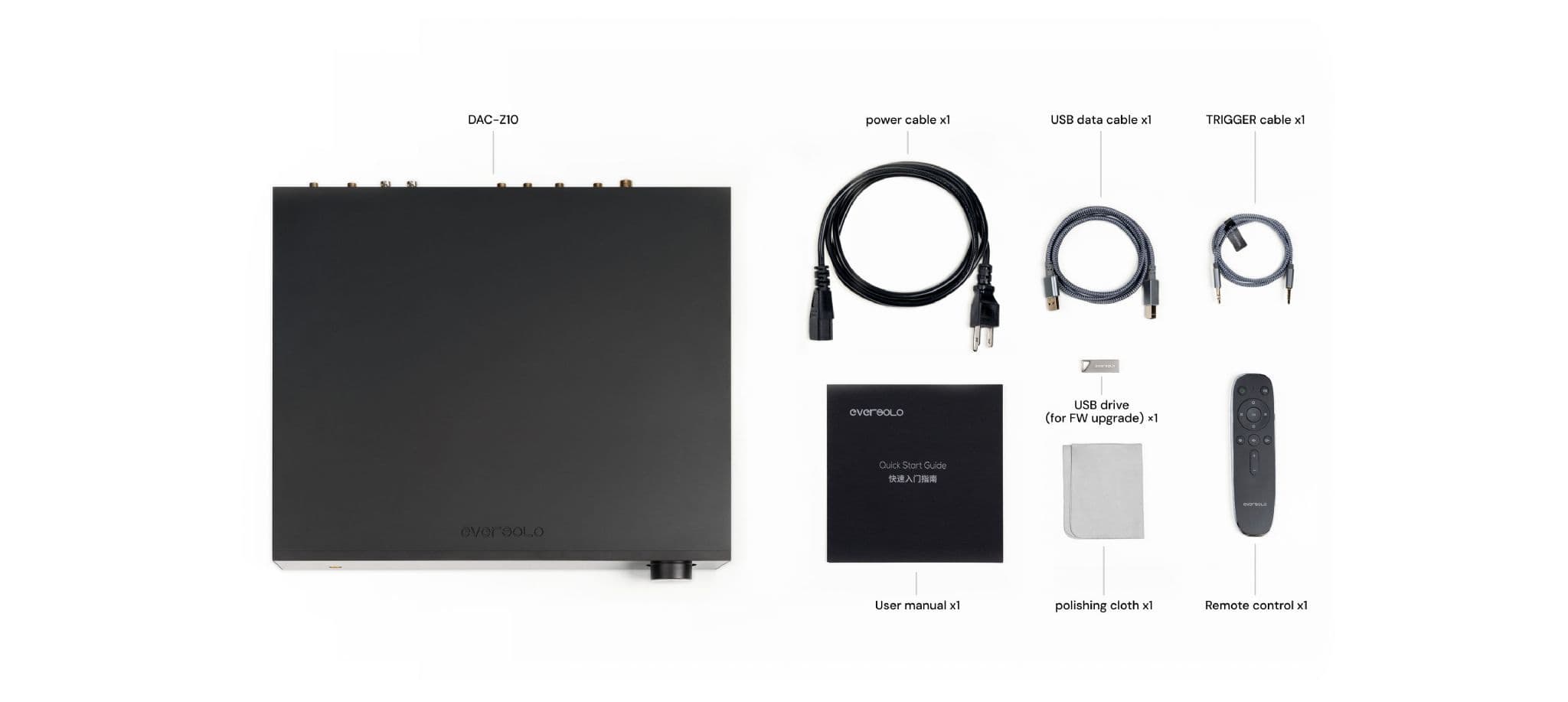

Packing List
Remote control ×1, power cable ×1, USB data cable ×1, USB drive (for FW upgrade) ×1, TRIGGER cable ×1, polishing cloth ×1, user manual ×1
