Embark On A Warm & Rich Musical Journey

The essence of tube amplification, experiencing the perfect harmony of technology and nature.

Description

• True Tube Amplification: The preamp circuit elevates the voltage to 54V, ensuring the tubes work to their full potential, delivering a warm and rich experience. The unique preamplification technology delivers pure audio signals, faithfully reproducing crisp high tones, full midrange richness, and deep, rhythmic bass. (Important Tips: Remove the copper rings for effortless installation of the tubes on the P3.)

• Bluetooth 5.1: Equipped with the Qualcomm QCC3031 chip, the P3 preamp guarantees impressive wireless sound quality and low latency, with compatibility for aptX HD and aptX LL codecs formats. Furthermore, the inclusion of a manual reset button prevents accidental connections by others, enhancing connection reliability.

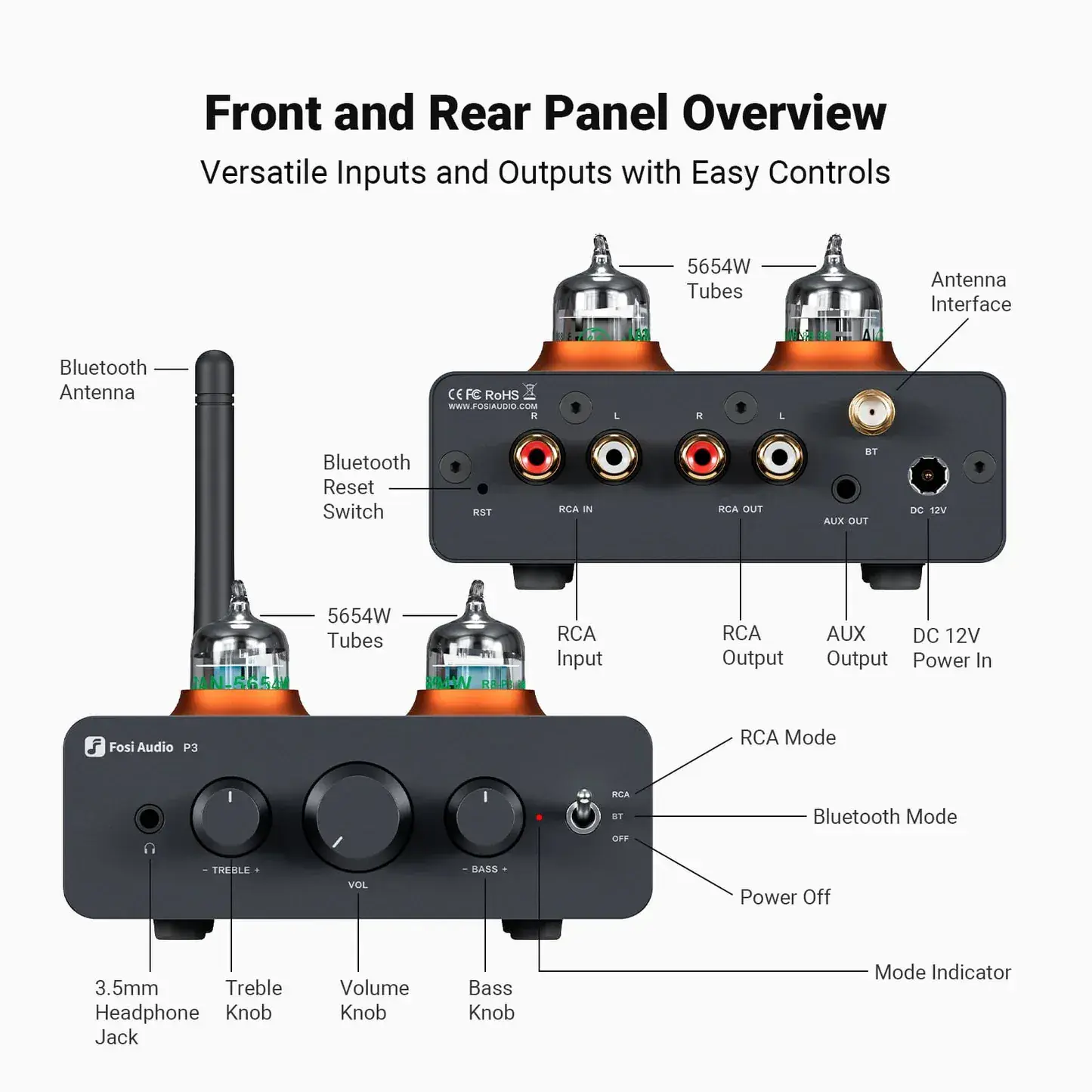

• Versatile Connectivities: The P3 provides Bluetooth/RCA inputs and RCA/AUX OUT/3.5mm headphone outputs. It can help create a 2.1-channel audio system by connecting active speakers/an amplifier and a subwoofer. As a headphone amplifier, it supports headphones with impedance ranging from 16 to 300.

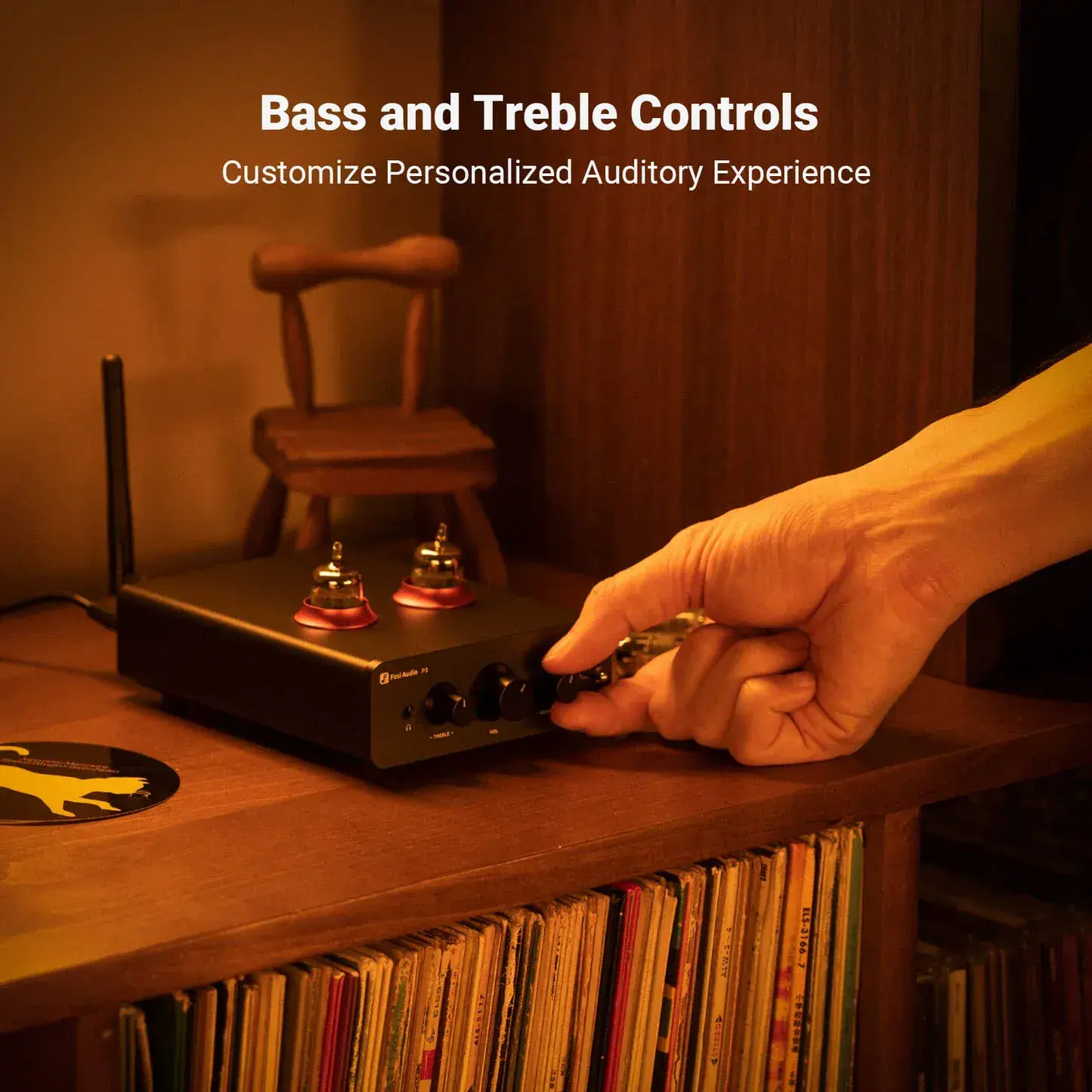

• Premium Components: It utilizes ELNA audiophile-grade capacitors and taper A pot. The bass and treble controls boast central detents for tone-defeating. With an SNR of up to 103dB and a crosstalk of 95dB, it helps form a HiFi audio system when paired with the V3 amplifier of the same series.

Specifications

RMS Power: 250mw @16150mw @3232mw @25020mW @300
Headphone Impedance: 16-300
Noise Floor: 64uV
Input Mode: Bluetooth, RCA
Output Mode: RCA, 3.5mm Headphone Jack, AUX Out
Frequency Range: 20Hz-20kHz(±1dB)
Dynamic Range: 104dB
THD: 0.02%
SNR: 103dB
Crosstalk: 95dB
Bluetooth Chip: QCC3031
Bluetooth Version: 5.1
Bluetooth Range: 10m
Bluetooth Codecs: SBC/AAC/aptX/aptX HD/aptX LL
Power Input DC: 12V/1.5A~3A;
