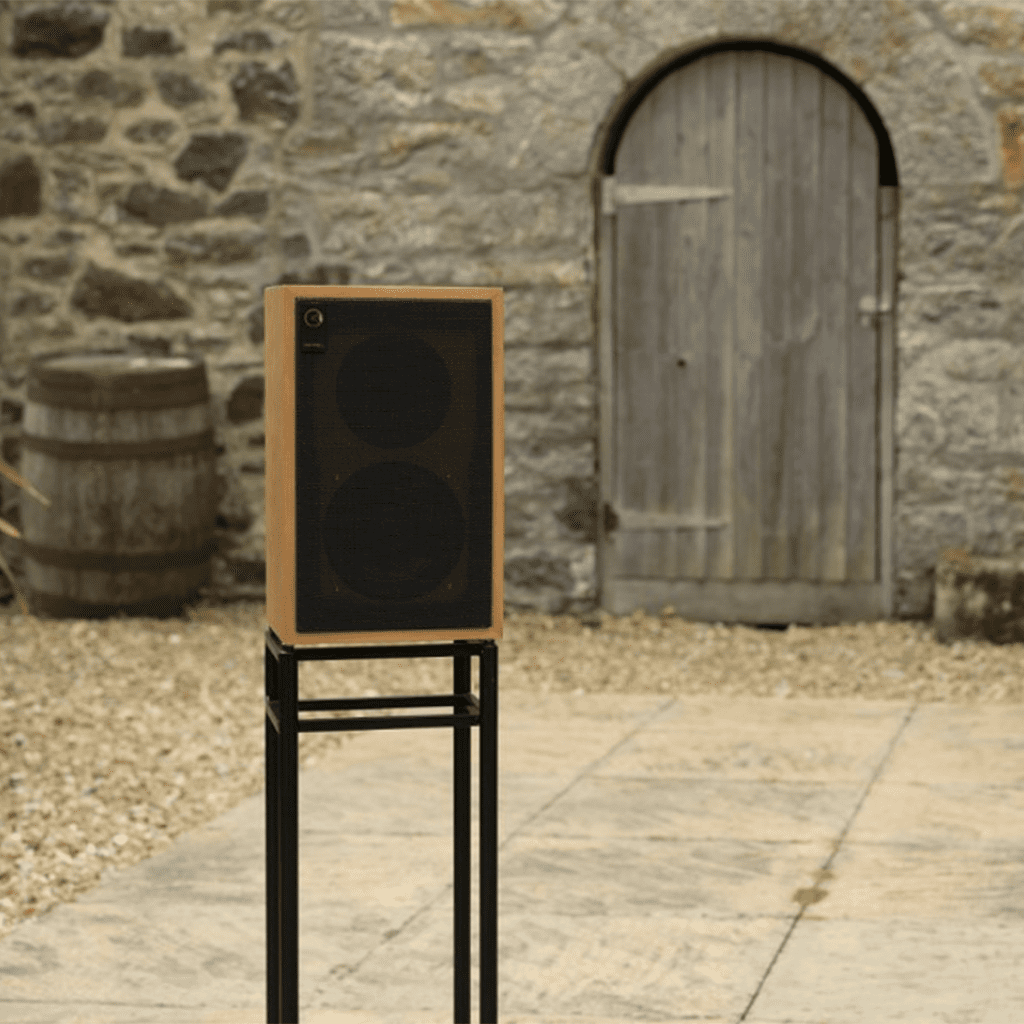

Graham Audio LS3/5 Loudspeakers | Audio Emotion
Graham Audio LS3/5 Loudspeakers | Audio Emotion

Product Description

The LS3/5A is perhaps the best-known of all the BBC's monitor designs. The BBC needed a small monitor that was suitable for critical assessment of programme quality in cramped OB vehicles and control rooms, and nothing suitable was available commercially. At the same time, a separate research project - an investigation into acoustic scaling of studios - had developed a miniature loudspeaker, and it was realised that it could be adapted for monitoring use. After much development, the original LS3/5 was born.

Initially, 20 units were built in-house for field trials, but upon deciding to build another batch, it became apparent that KEF had altered both of the drive units, and the new units were sufficiently different to the originals to affect the way the loudspeaker measured and sounded. As a result, significant re-engineering work had to be completed by the BBC's Designs Department, and this was such a significant deviation from the original model that the A suffix was added.

The new B110 needed to be decoupled from the baffle in order to prevent an interaction with the cabinet. Next, when fed from the existing crossover, the new HF unit exhibited significant colouration which required modifications to the crossover and the addition of the familiar protective grille and felt pads. The small number of loudspeakers from the original batch were now considered obsolete, and the true LS3/5 was never manufactured commercially.

While the revised LS3/5A sounded very similar to the original, many felt at the time that the original loudspeaker was better. Could this version be re-created today?

Graham Audio presents the ultimate version of the most famous of all the BBC loudspeakers, and is doing so under one of the most cherished names connected with the LS3/5A: Chartwell. The bespoke drive units and crossover networks are developed by Derek Hughes working in conjunction with Volt and Seas loudspeakers to produce a fully licensed loudspeaker using the very finest materials available.

Technical Specifications

System2 Way, reflex loading
EnclosureThin wall construction, 9mm birch plywood, removable rear panel
FinishReal wood veneer
Dimensions (w/h/d)19cm by 30cm by 17cm
Weight5.3kg
Frequency response70Hz to 20kHz, ±3dB
Nominal impedance9
Sensitivity83dB SPL (2.83V, 1m)
Maximum output95dB for a pair at 2m
Bass/midrange110mm Bextrene
Tweeter19mm Dome tweeter
Recommended amplifier power25 to 50 watts unclipped programme

Manufacturer Site

Specifications

Speaker Type
Bookshelf
Brand
Graham Audio
Condition
New
Product Code
GRHM-LS53
