Keces Audio P8 Ultra Low Noise Linear PSU

Home > Mains > Keces Audio
Stock code: KECES-P8


    For more information on any of our products please call us:


    01333 425999

    Power Variant

    Our Price: £699.00
    • Product Info
    • Stock Enquiry
    • Part Exchange
    • 0% Finance

    Features

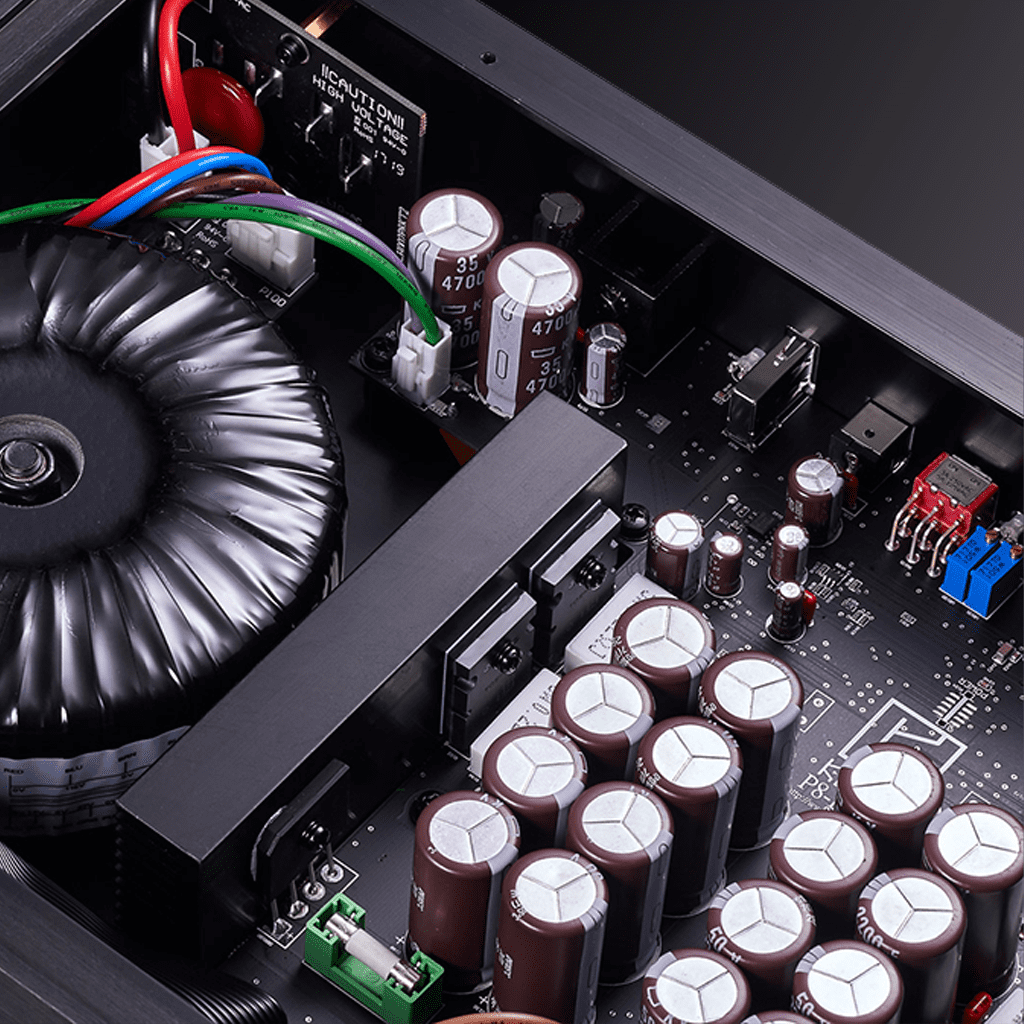

    • High Quality Toroidal Transformer provide pure power.
    • Separate ground for each output rail.
    • Ultra low ripple noise.
    • No humming or buzz noise for 50Hz and peak load.

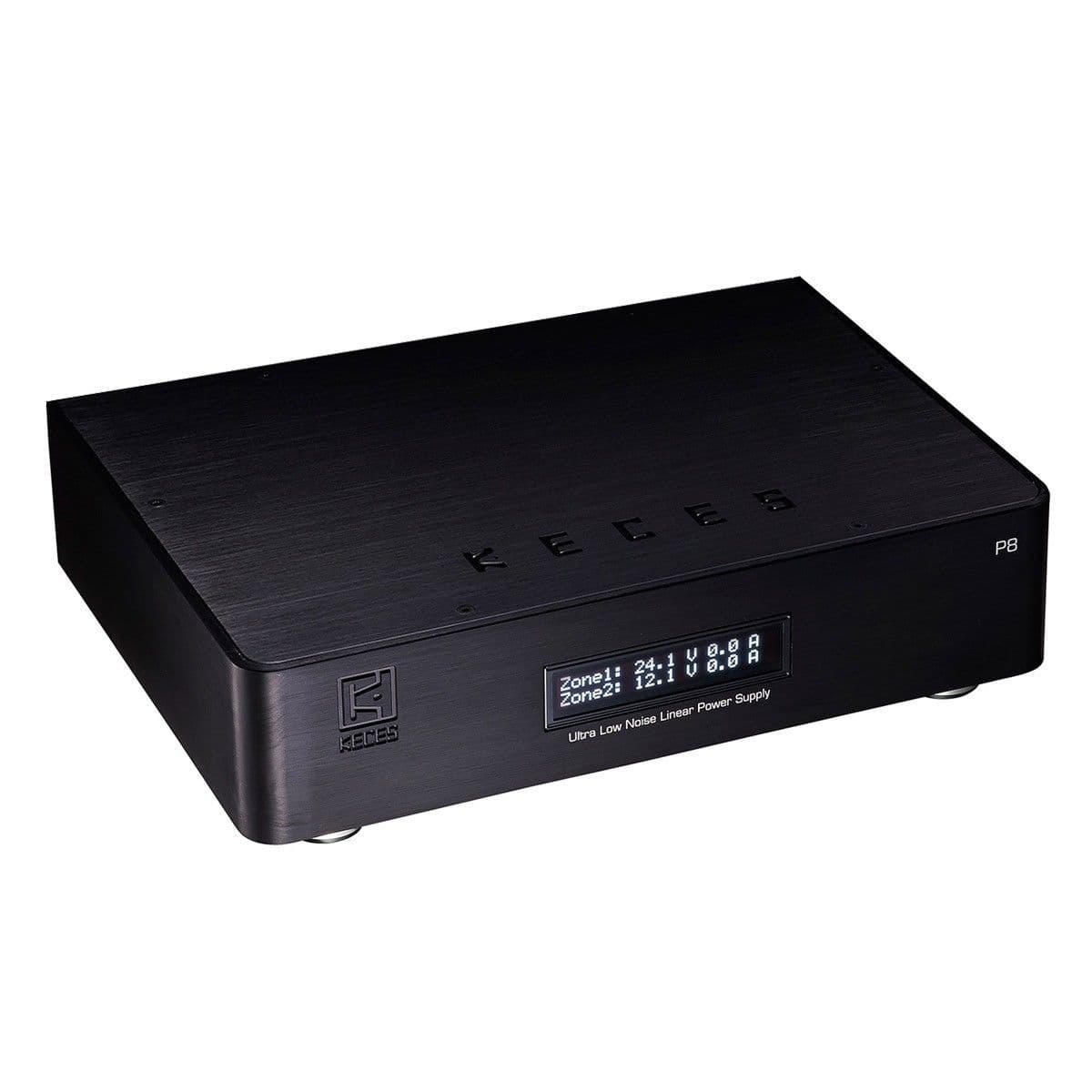

    • OLED display currently output voltage and currently output ampere.
    • USB Type A 5V output
    • Dual output with USB output provide 4A for each with 1A USB output.
    • Single output with USB output provide 8A with 1A USB output.
    • Over Voltage Protection (OVP).
    • Over Current Protection (OCP).
    • Under Voltage Protection (UVP).
    • Over Temperature Protection (OTP).
    • The 4mm thickness of the aluminum chassis to effective to blocks EMI/RFI interference.

    Compatibility & DC Output Version

    • Directly power DC 24V based Phonostage or Clearaudio Turntable  or for all audio device that run on DC 24V.
    • Directly power DC 20V based Laptop or for all audio device that run on DC 20V.
    • Directly power DC 19V based NUC, Thin ITX system and Laptop or for all audio device that run on DC 19V.
    • Directly power DC 18V based Pro-Ject products or for all audio device that run on DC 18V.
    • Directly power DC 15V based Alpha Design Labs products or for all audio device that run on DC 15V.
    • Directly power DC 12V based Mac Mini or for all audio device that run on DC 12V.
    • Directly power DC 9V based SOtM products or for all audio device that run on DC 9V.
    • Directly power DC 7V based SOtM products or for all audio device that run on DC 7V.
    • Directly power DC 5V based Squeezebox or for audio device that run on DC 5V.
    • USB Output provide DC 5V @1A. Directly power DC5V based USB DAC.

    Technical Specifications

    Dual Output 5V/7V + 9V/12V with USB Output.
    9V/12V + 12V/15V with USB Output.
    9V/12V + 18V/19V with USB Output.
    9V/12V + 20V/24V with USB Output.
    Single Output 9V/12V with USB Output.
    19V/20V with USB Output.
    DC Connector 2.5mm Barrel
    AC Input Voltage 110V-120V, 60Hz / 220V-240V, 50Hz
    (Switchable)
    Power Consumption 200Watts (Full Load Output)
    Casing 4mm Aluminum
    Dimension (WxDxH) 300x220x66mm
    Weight 6KG

    Dual Output Cut Off Output Condition

    Output
    Voltage
    Over
    Voltage
    Protection
    Under
    Voltage
    Protection
    Over
    Current
    Protection
    Over
    Temperature
    Protection
    5V 5.5V 4.5V 4.2A 80ºC
    7V 7.5V 4.5V 4.2A 80ºC
    9V 9.5V 8.5V 4.2A 80ºC
    12V 12.5V 11.5V 4.2A 80ºC
    15V 15.5V 14.5V 4.2A 80ºC
    18V 18.5V 17.5V 4.2A 80ºC
    19V 19.5V 18.5V 4.2A 80ºC
    20V 20.5V 19.5V 4.2A 80ºC
    24V 24.5V 23.5V 4.2A 80ºC

    Single Output Cut Off Output Condition

    Output
    Voltage
    Over
    Voltage
    Protection
    Under
    Voltage
    Protection
    Over
    Current
    Protection
    Over
    Temperature
    Protection
    9V 9.5V 8.5V 8.2A 80ºC
    12V 12.5V 11.5V 8.2A 80ºC
    19V 19.5V 18.5V 8.2A 80ºC
    20V 20.5V 18.5V 8.2A 80ºC
