HYBRID PREAMPLIFIER
The Phonolith combines an enormously ambitious phono preamplifier, a top-class preamplifier and a reference headphone amplifier in one device. Its form factor is unobtrusive, and the audio performance leaves nothing to be desired.
COMPATIBILITY BEYOND BELIEF
Produced to give convenient access to the hi-fi sectors most popular playback sources in the modern age, the Phonolith has two inputs. First, the line-level input is designed to work with your favourite digital source, most likely a streaming device. Second, it boasts a high-quality phono stage thats capable of accommodating the very best turntables and cartridges available today. Both inputs are selected using the switch on the main units front panel.
GET THE SETTINGS RIGHT FOR YOU
The phono preamplifier section in the Phonolith offers extensive setting options for cartridge impedance and four different gain settings, allowing for wide compatibility with most turntable systems. It also includes an adjustable filter with three selectable cut-off frequencies to ensure silence in the bass range, where necessary.
EXTENSIVE INTEGRATION
Lehmannaudio is well-known for its headphone amplifiers, which are used by internationally renowned mastering studios and sound engineers. The headphone output on the Phonolith is of the highest quality that the company has offered so far, with adjustable output gain to ensure optimal performance even with insensitive headphones. The Phonolith's preamplifier output can easily drive long cable runs and can be connected to any active speakers or power amplifiers, such as the Lehmannaudio Stamp, ensuring that it as flexible to accommodate as possible.
POWERED UP

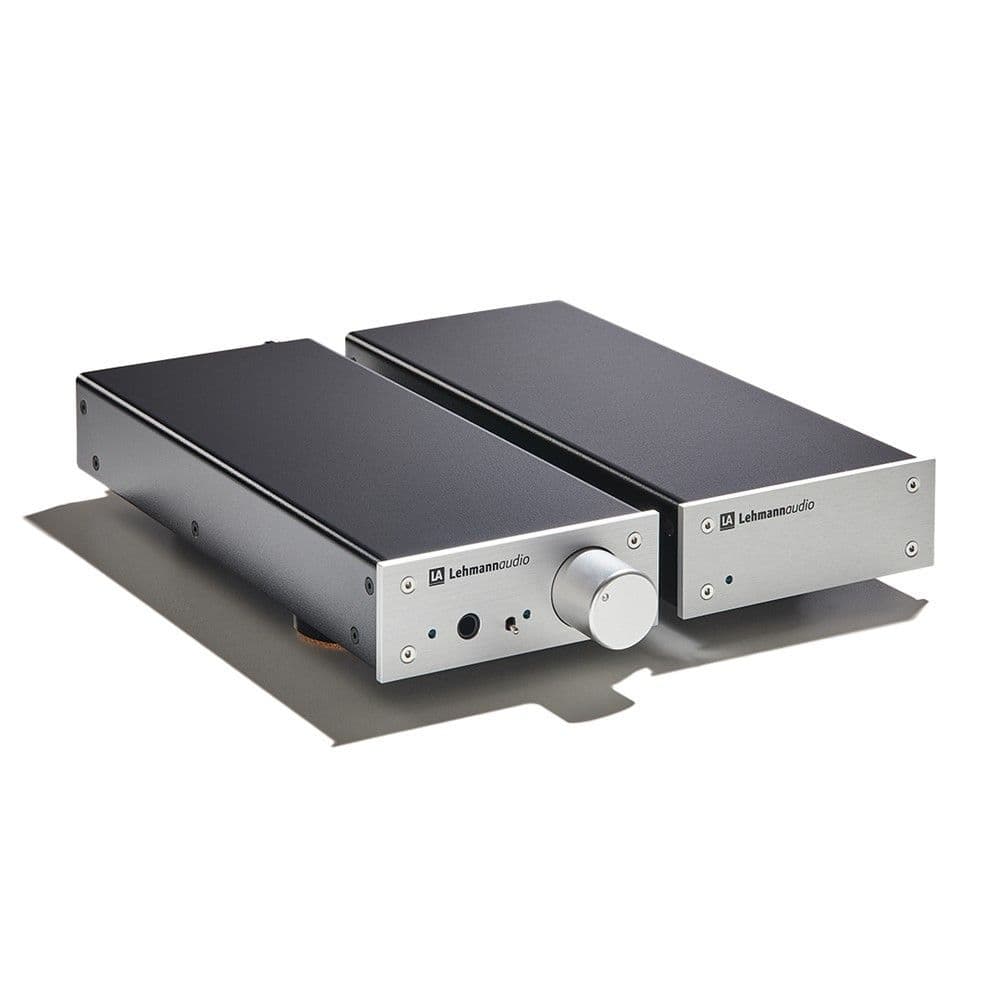

The Phonolith is supplied with a high-quality separate PWX II LZ power supply, housed in a matching chassis, for perfect power delivery and minimal interference with the audio electronics. Both the audio and power supply sections benefit from sturdy metal chassis with Lehmannaudio's specially engineered 3S feet underneath, which reliably absorb parasitic resonances.
SPECIFICATIONS
INPUT IMPEDANCE (MM): 47 k
INPUT IMPEDANCE (MC): 100, 390, 1000 and 7000 selectable
PHONO STAGE GAIN (MM): 36 or 46 dB
PHONO STAGE GAIN (MC): 56 or 66 dB
AMPLIFIER VOLTAGE OUTPUT: Max. 9V eff.
CHANNEL SEPARATION: > 70 dB
SUBSONIC FILTER: 7 Hz, 32 Hz, 50 Hz, 78 Hz selectable via DIP switches
OUTPUT IMPEDANCE: 50
RCA INPUT(S): 2 (1 x Phono)
HEADPHONE OUTPUT: 6.3mm Jack
HEADPHONE AMP OUTPUT POWER: 400 mW (60), 200 mW (300)
HEADPHONE OUTPUT IMPEDANCE: 5
VARIABLE ANALOGUE OUTPUT(S): 1 x RCA Pair
MAXIMUM POWER CONSUMPTION: 13 W
DIMENSIONS (W X H X D): 110 x 50 x 280 mm
ADDITIONAL DIMENSIONS (W X H X D): (Power Supply) 110 x 50 x 280 mm
WEIGHT: 2.8 kg
