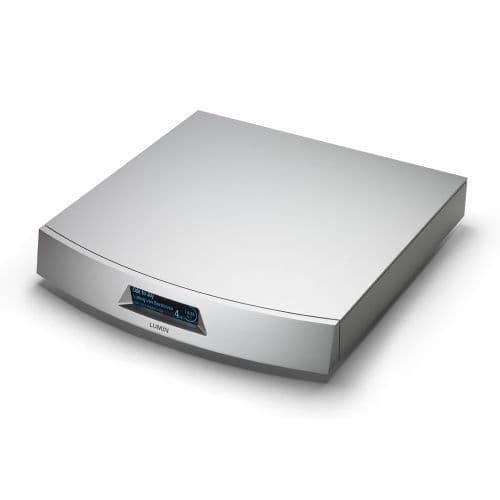

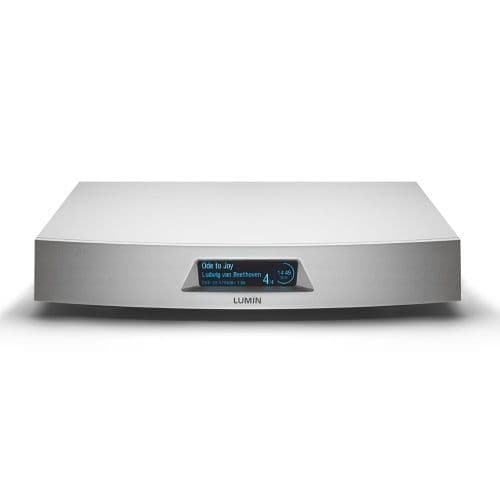

Lumin T3X Audiophile Network Music Player

Following the incredible reviews of LUMIN T3, We've now combined it with some of the best features from the rest of our range to make it one of the best value LUMIN Players ever! T3X features the toroidal linear power supply from the U2, the fibre networking of our flagship players and adds an extra USB port for even more flexibility.

The latest LUMIN processing system
The now-proven LUMIN hardware and software system provides all the power needed for the latest streaming technologies.
Superior processing power and storage capacity provide greater resampling flexibility and future-proofing.

Precision analogue output stage

• Analogue buffer includes LUMIN X1 technology
• Dual-mono circuitry throughout
• Ultra-low-noise and high dynamic range

CNC chassis construction

• The thick CNC panelled construction offers upgraded structural rigidity and shielding compared to the D3
• CNC milling techniques from LUMIN X1 provide the high-end LUMIN family aesthetic

All the usual LUMIN refinements

• From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
• Native support for TIDAL, Qobuz, Spotify and AirPlay-compatible, giving you access to tens of millions of songs
• The unique and intuitive LUMIN App described as "the most convenient interface in existence" by TINMAN
• LUMIN programme of continuous development that has seen Roon, MQA, and Spotify support added in 2017 alone
• Advanced streaming services & technologies

Every LUMIN player comes with support for a wide range of popular streaming services including Roon, TIDAL, TIDAL Connect, Qobuz, Spotify, KKBox, QQMusic, FLAC Radio Stations and more...

Lossless volume control for all LUMIN players
An innovative new digital volume adjustment algorithm that eliminates rounding errors is now included (at no additional cost) on all LUMIN players!

T3X SPECIFICATION:

• DSD SUPPORT: Up to DSD512 22.6MHz, 1-bit
• PCM SUPPORT: Up to 384kHz, 1632-bit, Stereo
• ANALOG OUTPUT STAGE: Dual ESS SABRE32 ES9028Pro DAC chips

FULLY BALANCED LAYOUT WITH HIGH-QUALITY COMPONENTS:

• Completely redesigned analogue buffer includes audiograde output capacitor and ultra-low-noise and high dynamic range
• Discreet clock system for precision timing
• Precision 32-bit internal digital volume

UPSAMPLING RATES & BIT DEPTHS:

• DSD256 upsampling option for all files
• PCM 384kHz upsampling option for all files

DIGITAL OUTPUT STAGE:

• USB: Native DSD512 support
• PCM 44.1384kHz, 1632-bit, Stereo
• BNC SPDIF: PCM 44.1kHz192kHz, 1624-bit
• DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

OPTICAL NETWORK:

• Industry-standard SFP
• 1000Base-T Gigabit Ethernet

Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

POWER SUPPLY:

• Internal toroidal linear
• Low-noise linear regulator
• Shielded power supply compartment for reduced interference with delicate electronics

PHYSICAL:

FINISH:

• Black anodised aluminium
• Raw anodised aluminium

DIMENSIONS:

• 350mm (W), 350mm (D), 60.5mm (H), 6kg

STREAMING PROTOCOL:

• UPnP AV protocol with audio streaming extension (OpenHome)
• Roon Ready
• TIDAL Connect
• Spotify Connect
• Plys with Audirvna
• AirPlay-compatible
• QPlay-compatible for QQMusic
• Gapless Playback
• On-Device Playlist

APP FEATURES:

• Native support for TIDAL, MQA, Qobuz, KKBox and TuneIn Radio.
• Tidal MAX and MQA icons to identify high-res music
• Qobuz high-res icons to identify high-res music
• Volume control
• High-resolution artwork
• Artwork caching

SEARCH:

• Multiple tag handling
• Composer tag support
• Album-grouping in playlist
• Automatic internet links to artists/album/songs
• Saving and restoring of playlists (including Tidal and Qobuz)

SUPPORTED AUDIO FILE FORMATS:

• DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
• PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
• Compressed (lossy) Audio: MP3
• MQA
