Lumin X2 Audiophile Network Music Player
Lumin X2 Audiophile Network Music Player
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!

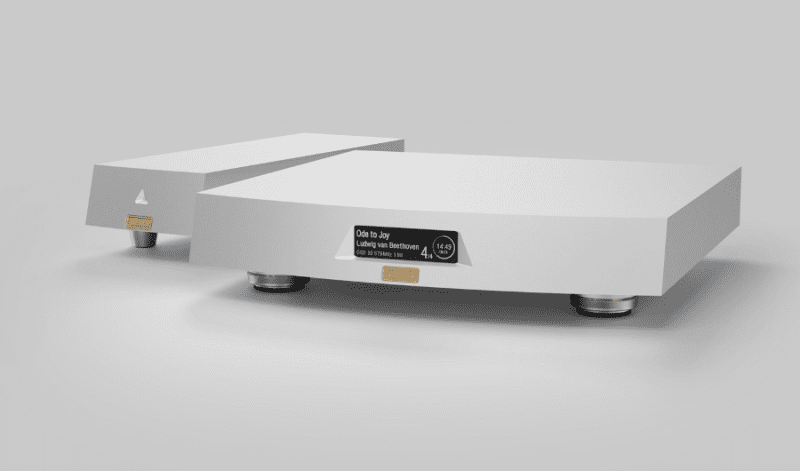

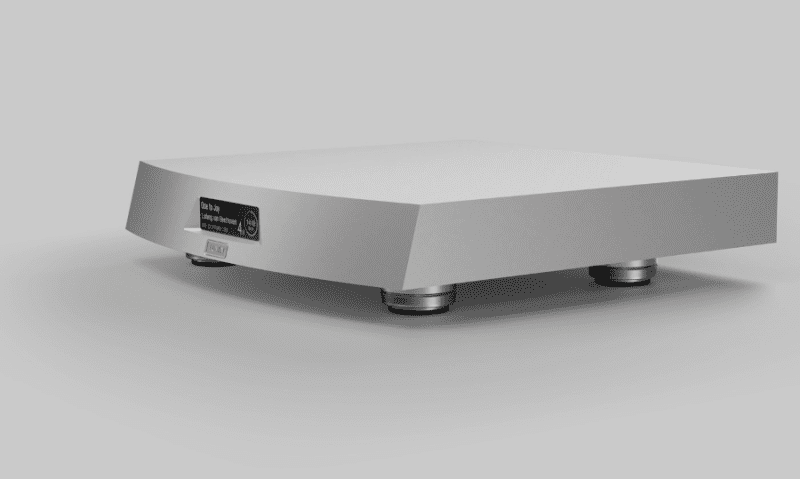

The Lumin X2 is a flagship audiophile network music player engineered to set a new benchmark in reference digital playback. Serving as the successor to the acclaimed Lumin X1, the X2 debuts Lumin's first-ever proprietary Custom Dual Discrete DAC architecture, completely replacing off-the-shelf converter chips with individually selected discrete components. Constructed with a solid billet CNC-machined aluminum chassis and IsoAcoustics isolating feet, the X2 pairs extreme mechanical rigidity with an external dual-toroidal linear power supply to deliver uncompromised signal purity, fluid micro-dynamics, and lifelike warmth.
Driven by Lumin's fastest processor platform, the X2 natively supports up to DSD512 and 32-bit/768kHz PCM across network streaming and digital USB outputs. The precise digital engine utilizes dual ultra-high-speed FPGAs and a dual Femto clock oscillator network to eliminate jitter. The fully balanced analog output stage features dual stage low-noise voltage regulators and custom Lundahl LL7401 output transformers for organic tonal density. Designed for pristine network isolation, the X2 integrates an optical SFP network port and a second RJ45 gigabit port, while incorporating Leedh Processing for bit-perfect digital volume attenuation.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Lumin Custom Dual Discrete DAC: In-house developed 32-bit discrete ladder converter topology controlled by dual high-speed FPGAs, optimizing clocking, current delivery, and channel separation.
- Dual Lundahl LL7401 Output Transformers: Transformer-coupled fully balanced analog output buffer providing a natural, smooth, and highly detailed sound signature.
- Dual Femto Crystal Clock System: Precision FPGA clock distribution network guided by dual Femto oscillators to minimize timing jitter across all sample rates.
- Optical SFP Network Isolation: Features an industry-standard optical SFP gigabit network socket alongside a standard RJ45 port, completely decoupling the player from network-borne electrical noise.
- External CNC Dual-Toroidal Power Supply: External solid billet aluminum PSU housing separate linear regulation stages for digital and dual-mono analog circuits.
- Leedh Processing Digital Volume Control: An innovative, mathematically lossless volume algorithm that adjusts signal amplitude without altering bit depth or introducing truncation artifacts.
- High-Resolution Resampling Engine: Advanced DSP engine allows real-time PCM and DSD upsampling options up to DSD256 or PCM 384kHz.
- IsoAcoustics Isolation Feet: Precision-engineered isolating feet integrated directly into the main chassis to dissipate unwanted micro-vibrations.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Flagship Audiophile Network Music Player / DAC |
| Digital-to-Analog Converter | Lumin In-House Custom Dual Mono Discrete DAC Architecture |
| Processing Platform | Latest Generation High-Capacity Lumin Multi-Core Processor Engine |
| Clocking System | Dual Femto Crystal Oscillators with Precision FPGA Distribution |
| Analog Output Topology | Fully Balanced Dual Mono with Dual Lundahl LL7401 Output Transformers |
| Native Audio Format Support | Native DSD up to DSD512 (22.6MHz, 1-bit) | PCM up to 768kHz, 16 to 32-bit |
| Upsampling Options | Selectable Real-Time Upsampling up to DSD256 or PCM 384kHz for all files |
| Supported File Formats | DSF, DIFF, DoP, FLAC, Apple Lossless (ALAC), WAV, AIFF, MP3, MQA |
| Streaming Protocols & Services | UPnP OpenHome, Roon Ready, Qobuz / Qobuz Connect, TIDAL / TIDAL Connect (TIDAL Max FLAC), Spotify Connect, Audirvana, AirPlay, TuneIn |
| Volume Control Engine | Leedh Processing Lossless Digital Volume Control |

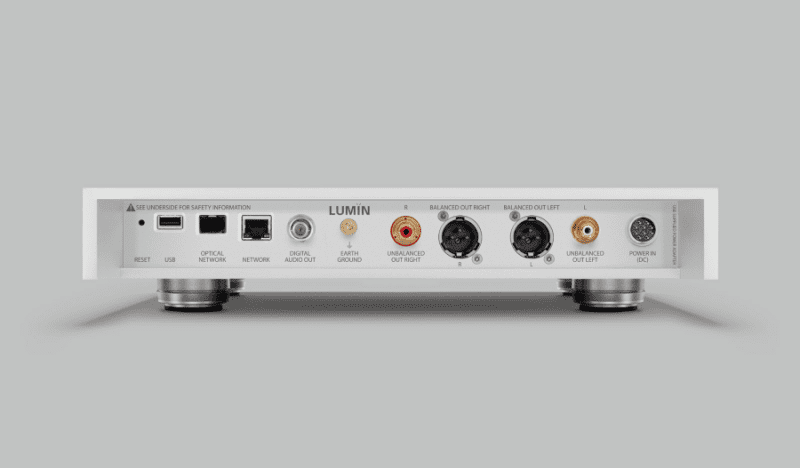

| Network Connectivity | 1 x Gigabit Optical SFP Port, 1 x Gigabit RJ45 Ethernet Port |
| Digital Audio Outputs | 1 x USB-A (Native DSD512, PCM 44.1–768kHz) | 1 x BNC S/PDIF (PCM 44.1–192kHz, DoP DSD64) |
| Analog Audio Outputs | 1 x Stereo Balanced XLR (6.0 Vrms, Pin 2 Hot) | 1 x Stereo Unbalanced RCA (3.0 Vrms) |
| Power Supply Type | External CNC Billet Dual-Toroidal Linear PSU with Low-Noise Dual-Stage Regulators |
| Main Chassis Dimensions (W x D x H) | 350 x 345 x 77 mm (13.8" x 13.6" x 3.0") |
| Main Chassis Weight | 8.0 kg (17.6 lbs) |
| PSU Chassis Dimensions (W x D x H) | 106 x 334 x 77 mm (4.2" x 13.1" x 3.0") |
| PSU Chassis Weight | 4.0 kg (8.8 lbs) |
| Finish Options | Black Anodized Aluminum or Raw Anodized Aluminum |
"Never content, we've constantly been evaluating our streamers to see if there was any possible way to beat them. It's taken years, but finally we're ready to reveal Streaming's New Cutting Edge." — Lumin
"... sophisticated sonic elegance... this is perfectionist hifi done right..." — 6Moons / Srajan Ebaen
