Matrix Audio M-Stage HPA-U Headphone Amplifier

Home > Amplification > Headphone Amplifiers > Matrix Audio
Stock code: MTRX-HPA3U


    For more information on any of our products please call us:


    01333 425999


    Our Price: £369.00
    • Product Info
    • Stock Enquiry
    • Part Exchange
    • 0% Finance

    Product Information

    Revolutionary Improvement
    HPA-3U⁺ is a biggest evolution since the M-Stage series headphone amplifier came out, the new appearance, the new circuit design and radical performance improvement to make it all difference.

    THD+N<0.0003%
    Full-band of THD + N less than 0.0003%, SNR up to -112dB, bandwidth not less than 150k at -3dB gain, 0.2Ω ultra low output impedance, three gain level options to fit for the different impedance and sensitivity headphone, all of these excellence performance improvements to be born the brand new HPA-3U⁺!

    High Resolution Format Compatibility
    The most stable XMOS U series USB controller on the new USB module, support 24 bit/192kHz sample rate PCM signal playback, DOP mode DSD playback capacity, the biggest bright spot is that can be played with your iOS and the most Android devices.

    Brand New

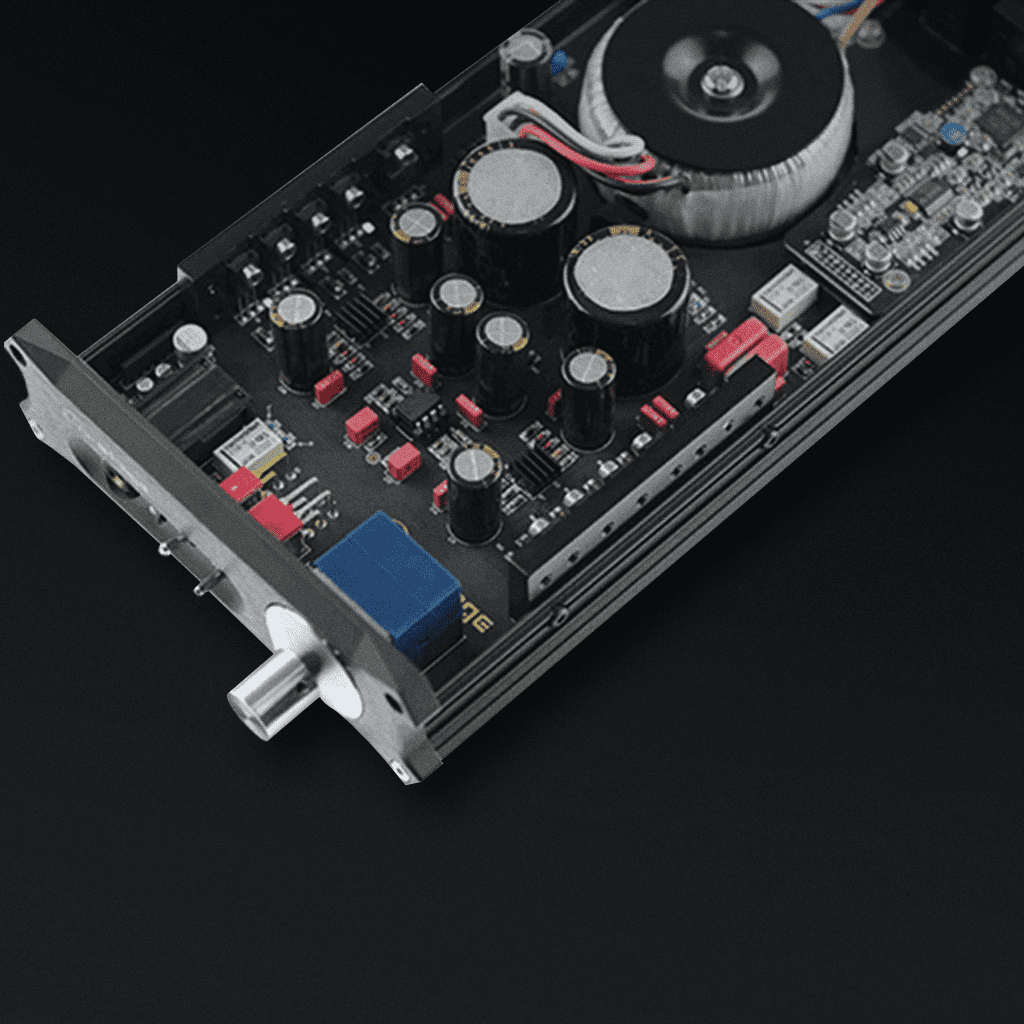

    Excellent structural design to quickly dissipate the heat of power transistors via the shell, to ensured the stability of the work; full symmetric circuit layout makes two channels audio have the isometric path; driver stage use the precision constant current source and establish stable working point; Parallel output of the output stage can effectively reduce the output impedance, and improved driving capability, extended dynamic range.

    Best Selection Best Match
    Alps 27 series volume potentiometer, Wima and Nichicon audio gradecapacitors, Noratel toroidal transformer, precision non-inductive resistance, each carefully selected components make HPA-3U⁺ not only presents the perfect sound, but also a more stable and reliable.

    Line Output Specifications

    SNR >-112dB at 20Hz-22kHz A-Weighting
    THD+N <0.0003% at 1kHz 1VRMS A-Weighting
    Frequency Response 20Hz-20kHz(+0.01dB/-0.04dB)
    Output Impedance 51ohms

    Headphone Output Specifications

    SNR >-112dB A-Weighting
    THD+N <0.0003% at 33ohms 90mW1kHz A-Weighting
    Frequency Response 20Hz-20kHz(+0.01dB/-0.04dB)
    Output Impedance 0.2ohms
    Output Power 2800mW at 33ohms
    420mW at 300ohms
    210mW at 600ohms at THD+N=0.01%

    Gain Control Specifications

    Gain 5=5dB 10=10dB 20=20dB

    USB Input Specifications

    USB Chip XMOS U-Series Asynchronous USB Chip
    D/A Chip CIRRUS LOGIC CS4398
    SNR >-110dB A-Weighting
    THD+N <0.0009% at 1kHz A-Weighting
    PCM Sample Rate 16-24Bit /44.1kHz 48kHz
    88.2kHz 96kHz 176.4kHz 192kHz
    DSD Sample Rate DSD2.8MHz/DSD5.6MHz(DoP and ASIO Native)
    System Support Windows XP/Vista/7/8/8.1 systems
    need to install the driver supplied.
    Mac OS X 10.6.4 and above version
    have native support and do not
    require a driver.
    Can be used with the most of Android
    devices via the OTG cable.
    Can be used with iOS devices via
    the Lightning to USB Camera Adapter.

    General Specifications

    Power Voltage 230V position is fit for
    AC220V-240V 50/60Hz
    115V position is fit for
    AC100V-120V 50/60Hz
    Power Consumption <25W
    Fuse AC250V/500mA 5×20mm
    Dimension 285×142×49mm L×W×H
    (Including the protruding part)
    Weight 1.7kg
    Accessories User Manual x1
    Driver Disk x1
    Power Cord x1
    USB Cable x1

    Manufacturer Site
