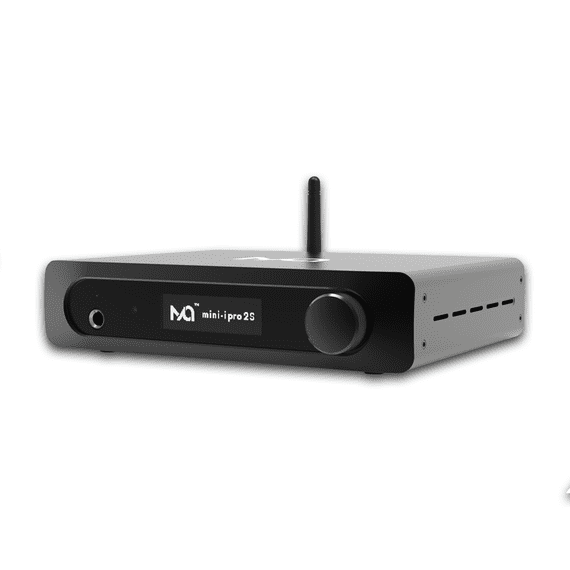

Matrix Audio Mini-i Pro 2S DAC | Audio Emotion

Product Description

Inherited Classic
Nearly a year of waiting, ESS SABRE PRO series chips mass product now, we have launched the S which is a new member of Mini-i series DAC at the first time, although it have the same look as Mini-i Pro 2, but it owns a more powerful heartES9026PRO. It's a further extension of the powerful features on Mini-i Pro 2 and excellent quality on Mini-i series DACs.

ESS SABRE PRO
The brand new 8-channel D/A chip ES9026PRO fully optimised the internal DSP unit, compare to the last generation ES9016S, not only have the powerful performance, but also has a better user experience.

Full Port DSD*
From now on DSD audio stream is not limited to playback through the USB port, Mini-i Pro 2S support DoP through optical, coaxial and AES/EBU input, convenient to connect digital music player which with the DoP output function.

Different Strokes For Different Folks
With up to seven kinds of PCM digital filter options, you can select a different filter curve to fine tuning the timbre, easy to meet the different customers in the pursuit of subtle differences on timbre.

Built-in Pre-AMP
The line output can be configured with a +18dB digital gain. It's not necessary to add an additional pre-amplifier for low-gain active speakers. Mini-i Pro 2S also can work with power amplifier more conveniently and flexibly.

Break the Bondage
AptX has been the best kept secret of the professional audio industry for many years. Now music lovers can enjoy the rich listening experience that only aptX can deliver: pure wireless sound that doesnt compromise on audio quality.

Graceful Design
Inherit the simple and elegant design style of Mini-i series DACs, CNC machining and anodizing surface process to make it have a superior touch impression, newly designed aluminum body has a higher strength and excellent radiating performance.

Remote
The delicate remote control, illustrating Matrix's notion of making everything better. Focusing on and carefully depicting every details, we provided more convenient operation on the device, meanwhile you can enjoy high-quality music contentedly.

Digital Input Specifications

AESPCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD DSD64 (DoP)
COAXIALPCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD DSD64 (DoP)
OPTICALPCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD DSD64 (DoP)
USBPCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz DSD DSD64/DSD128 (DoP) DSD64/DSD128/DSD256 (ASIO Native)
BluetoothPCM 16Bit/48kHz aptX/AAC/SBC
Bluetooth VersionBluetooth V4.0
Frequency Band2.402GHz - 2.480GHz
Power LevelClass II
Operating Distance10-15m
Latency130ms
System SupportWindows7/8/8.1/10 systems need to install the supplied drivers.
Mac OS X10.6.4 and above version without installing drivers.
Most Android devices can be used via OTG cable.
The iOS devices can be used via the Apple Camera Connection Kit.

XLR Output Specifications

SNR-123dB 20Hz-20kHz A-Weighting
THD+N0.0003% at 1kHz A-Weighting
Frequency Response20Hz-20kHz (+0.01dB/-0.02dB)
Crosstalk-130dB @1kHz
XLR Output4Vrms Fixed at 0 dBFS DAC MODE
0-4Vrms Adjustable at 0 dBFS PRE MODE

RCA Output Specifications

SNR-120dB 20Hz-20kHz A-Weighting
THD+N0.0005% at 1kHz A-Weighting
Frequency Response20Hz-20kHz (+0.01dB/-0.02dB)
Crosstalk>-126dB @1kHz
RCA Output2Vrms Fixed at 0 dBFS DAC MODE
0-2Vrms Adjustable at 0 dBFS PRE MODE

Headphone Output Specifications

SNR>-116dB 20Hz-20kHz A-Weighting
THD+N<0.0007% at 1kHz A-Weighting at 300ohms 25mW
Frequency Response20Hz-20kHz (+0dB/-0.1dB)
Crosstalk>-126dB @1kHz
Headphone Output Impedance10ohms
Headphone Output Power820mW at 33ohms at THD+N=0.1%
210mW at 300ohms at THD+N=0.1%
110mW at 600ohms at THD+N=0.1%

Power Specifications

Power Voltage230V position is fit for AC220V-240V 50/60Hz
115V position is fit for AC100V-120V 50/60Hz
Power Consumption<10W

General Specifications

Dimension168×205×47mmL×W×H, including the protruding part)
Weight1.3KG

Manufacturer Site
Read More

Specifications

Product Type
DAC
Brand
Matrix Audio
Condition
New
Product Code
MTRX-MINIIPRO2S
