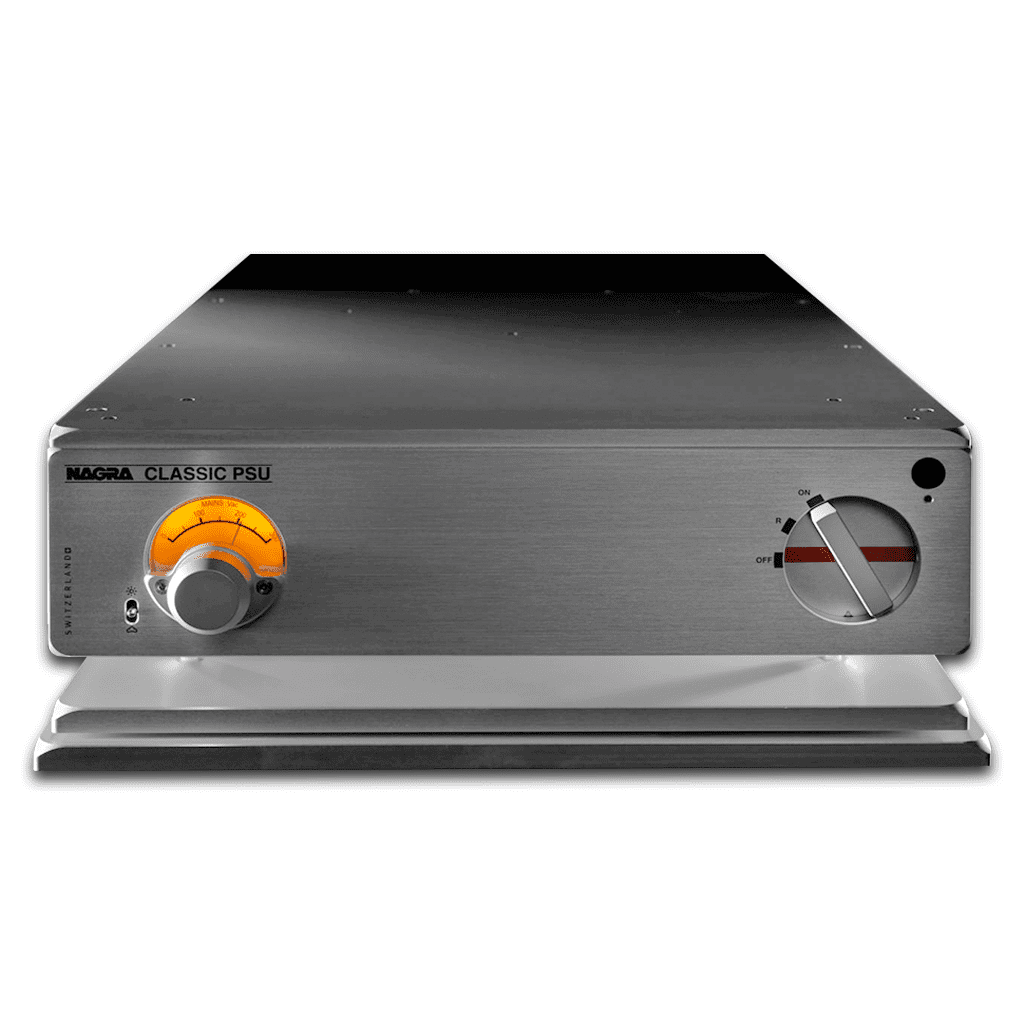

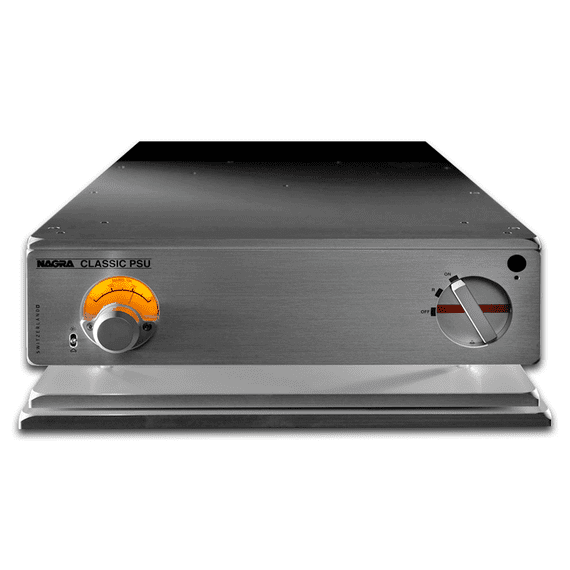

    Classic PSU
    The Power supply is a critical part of any audio design. Somehow it sets the upper limit of the quality that the product will be able to provide. Our company has always been extremely knowledgeable about power supply as designing high-quality portable power supply is a real challenge.
    The Classic PSU is inspired by the PL-P battery power supply, where the battery is replaced by a bank of supercapacitors. Supercapacitors are becoming more and more popular as they offer the advantages of a battery without having to worry about charging or battery’s life.

    Features

    PERFORMANCE
    The Classic PSU is a very technically advanced product that can be seen as a compact HD PREAMP power supply. It features carbide silicon diodes, extremely fast diodes without recovery time. They allow a totally smooth rectification. It also includes cascades of silent regulators to offer a perfectly stable DC current for the Classic Line to operate with.

    The Classic PSU can be used with the CD range of products, VPS phono stage, JAZZ, Melody and the latest Classic DAC, Classic PREAMP, HD DAC and TUBE DAC. It will revitalize any Nagra devices and allow them to express their full potential.

    Technical Specifications

    Compatibility Nagra CDC, CDP, CDT, HD DAC,
    Classic DAC, TUBE DAC, BPS, VPS,
    MELODY, JAZZ and Classic PREAMP
    Outputs 1 to 3, 12 V DC, 1.5 A Lemo pin 2-3,
    GND contact – command Lemo pin 1
    Linear noise 30 μV maximum No load – 10 Hz – 500 kHz
    20 μV maximum Full load – 10 Hz – 500 kHz
    Home automation input and outputs input : 1x 3.5 mm jack connectors
    Input command
    output : 3x 3.5 mm jack connectors
    Output switching by relay
    Mains supply 100, 115, 120, 127, 230 or 240 VAC, ±10%
    Power consumption Maximum 100 W – In standby < 1W
    DC cables Custom made shielded cable with high quality
    Lemo connectors, available in 0.75 or 1.25m
    lengths. Other lengths available on request.
    DC cable for the BPS, 1m.
    Dimensions 280 x 350 x 76 mm
    12 x 13.7 x 3"
    Excluding connectors
    Weight 7.5 Kg
    15.4 lbs.
    With third output option
