Product Description

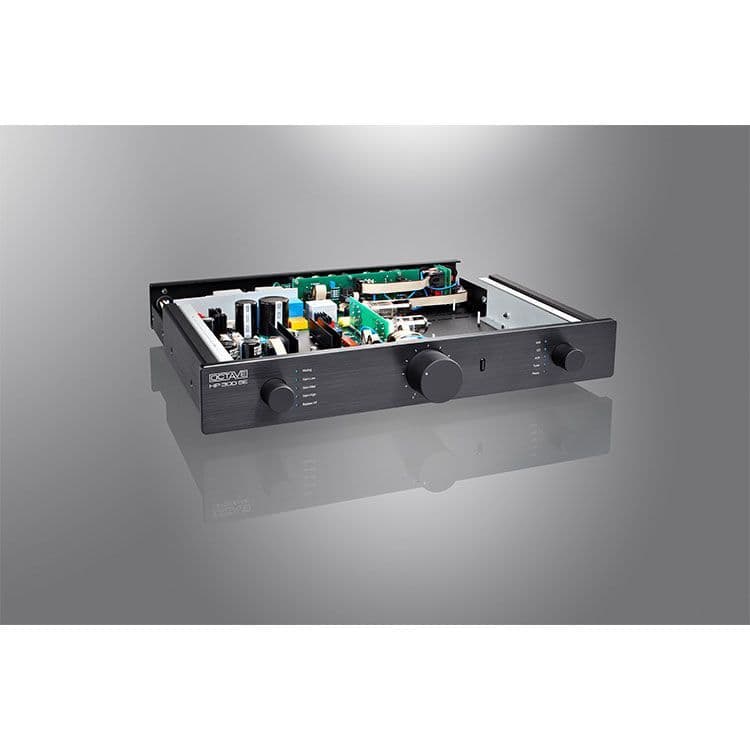

The HP 300 SE is a enhanced version of the HP 300 MKII. The HP 300 SE does not replace the HP 300 MKII, this model extends our range of Preamps. The HP 300 SE offers more flexibility in the connections and sonic benefits due to some improvements in the Power Supply and the Output stage of the Line Amplifier. The HP 300 SE has two independent XLR Inputs, three RCA Inputs, one Monitor Output, two RCA Outputs and one XLR Output. The Gain is switchable in three steps, this allow to set the optimum Gain and regulation Ratio depending on the efficiency of the Loudspeaker. The new designed Line Amp has a extremely high Signal to Noise Ratio. Noise is not only a characteristic of the tubes, a significant contribution is coming from the mains, respectively the Power supply design of a Preamp. The Power supply of the HP 300 SE consists of the external transformer with optimized isolation characteristic, and the precise ultra low noise Voltage regulators of the main unit. Both systems are match to each and help reducing the Noise of the Lime Amplifier effectively. The Balanced Output is realized with a highly symmetrical Output Transformer. The Transformer offers the possibility to connect or disconnect the Ground connection to the Power Amplifier. The feature helps to reduce disturbing mains induced currents that usually flow in the Ground of the Signal connection. Both Outputs offer very low Output Resistances. Connecting cables up to 5 - 10 meter is without negative influence. A helpful feature in modern Hifi combinations is the Home Theatre Bypass Function. The HP 300 SE offers this feature, with the additional possibility to select the Bypass Input from a RCA Input to a XLR Input. The Monitor Output is buffered and can be used to drive an external headphone Amp, the Analog Input of a Computer or similar. Phono MC is available optional.

Technical Data

Gain high25 dB = 18,5
Gain med19 dB = 8,8
Gain low12 dB = 4
Frequency Response Gain high10 Hz - 200 kHz - 1,5 dB
Total Harmonic Distortion Gain high0.03%
S / N Ratio : Gain high- 92 dB
S / N Ratio Gain low-108 dB
Left/Right Crosstalk90 dB 1 kHz
Input to Input Crosstalk100 dB 1 kHz
Input Impedance100 kOhm
Output Impedance50 Ohm cinch; 150 Ohm XLR
Channel Balance0.5 dB - 70 dB
ConnectionsInputs : 3 x Cinch, 2 x XLR, 1 x Phono Option Outputs : 2 x Cinch, 1 x XLR, 1 x Monitor
FeaturesHT Bypass, Sym. Inputs and Outputs, Monitor Out

Phono-MC
RIAA-Equalization Accuracy0,3 dB 15 Hz - 20 kHz
Corner Frequency Subsonic Filter20 Hz / - 3 dB
Input Impedance40 - 1000 Ohm
Input Sensitivity0.1 mV / 0.5 mV
Gain low58 dB
Gain high67 dB
Signal-to-Noise Ratio (weighted)- 75 dB
Power Consumption35 W
Weight with Power Supply12 kg
Standard AccessoriesPower cord, IR-Remote Control
DimensionsW x H x D = 438 x 77 x 410 mm
Dimensions Power SupplyW x H x D = 110 x 80 x 250 mm

Manufacturer site

Read More

Specifications

Product Type
Preamplifier
Brand
Octave
Condition
New
