Currently on back order from Pioneer - estimate Q1 or Q2 of 2024.

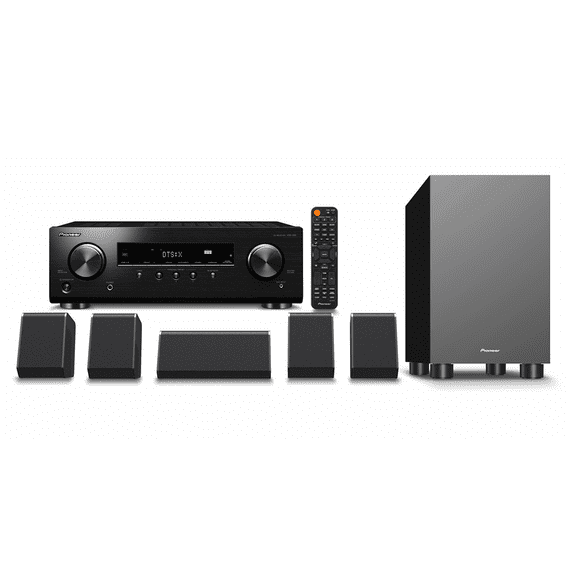

Get more excitement out of your music, movies, or games with this convenient package for creating a 5.1-channel home cinema. Consisting of an AV receiver, subwoofer, and compact front, centre, and surround speakers, the HTP-076 can be easily hooked up with your Blu-ray Disc player or other devices. Dolby Atmos® and DTS:X® audio formats offer enveloping sound, and even without height speakers, you can still enjoy virtual 3D surround effect with Dolby Atmos Height Virtualizer* and DTS Virtual:X. The AV receiver is compatible with Ultra HD, HDR10, HLG, and Dolby Vision with support for HDCP 2.2. Other features include Bluetooth® Wireless Technology, Personal Preset, and Dialog Enhancement.

Audio Features

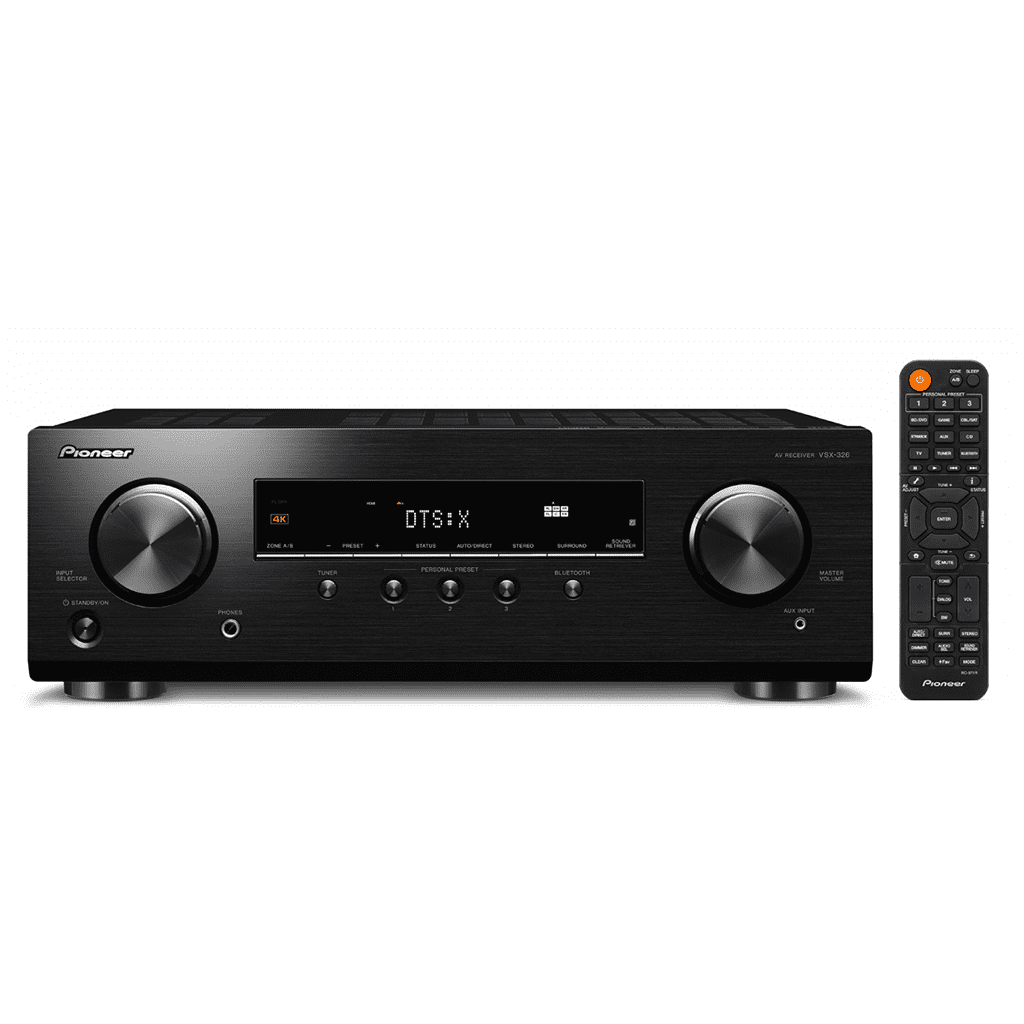

• AV Receiver
  • Channels: 6ch (5 + SW)
  Amplification Type: Direct Energy
  • 150 W/ch (6 ohms, 1 kHz, 10 % THD, 1ch Driven) x 5ch,
  • 120 W (6 ohms, 100 Hz, 10 % THD) Subwoofer (Passive)
  • 135 W/ch (6 ohms, 1 kHz, 1 % THD, 1ch Driven IEC) x 5ch, 100 W (6 ohms, 100 Hz, 1 % THD IEC) Subwoofer (Passive)
  • Dolby Atmos®, Dolby Surround Upmixer
  • DTS:X®, DTS Neural:X® Upmixer
  • Reflex Optimizer
  • Dolby Atmos Height Virtualizer*
  • DTS Virtual:X
  • Dolby® TrueHD, Dolby Digital Plus
  • DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS-HD Express
  • DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch)
  • Digital Quad-Core 32-bit DSP (Cirrus Logic)
  • 384 kHz/32-bit D/A Conversion with AK4438 (AKM)
  • Audio Return Channel (ARC) on HDMI
  • MCACC Auto Room Tuning
  • • Phase Control
    • Subwoofer EQ
  • Advanced Sound Retriever (2ch)
  • Advanced Surround Modes: Classical, Unplugged, Entertainment Show, Drama, Extended Stereo, Extended Mono, Front Stage Surround Advance

• 5.1-ch Speaker System S-13A
  • Front: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W)
  • Center: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W)
  • Surround: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W)
  • Subwoofer: 16 cm Cone, Bass-Reflex Type (120 W)

Video Features

• Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
• HDR10, HLG and BT.2020 Wide Colour Gamut Signal Pass-through
• Dolby Vision Compatible
• Ultra HD Upscaling (1080p to 4K)
• 3D Ready (Blu-ray Disc, Broadcast, and Games)
• Deep Colour (36-bit), x.v. Colour

Operating Features

• Personal Preset
• Dialog Enhancement
• Bluetooth® Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
• User-Friendly GUI with System Setup Menu
• On-Screen Information for Audio/Video Status
• Auto Power Off in HDMI Standby Through
• AM/FM Tuner 40 Presets
• DAB/FM Tuner 40 Presets
• Sleep Timer
• User-Friendly Simple Remote Control

Connections

• Front Terminals
  • AUX In
  • Phones 1 Out

• Rear Terminals
  • HDMI 4 In (4 Assignable)
  • HDMI 1 Out
  • USB 1 in for Streaming Dongle
  • Audio 3 In (Assignable)
  • Digital Coaxial 1 In (Assignable)
  • Digital Optical 1 In (Assignable)
  • Subwoofer 2 Pre Out
  • ZONE B Line Out for Wireless Headphones
  • Speaker 6 ch (5 + SW) Out
  • AM Loop Antenna 1 In
  • FM Unbalanced Antenna 1 In

Dimensions & Weight

• AV Receiver: 435 x 148 x 321 mm / 8.0 kg
• Front Speaker: 90 x 131.5 x 108.5 mm / 0.5 kg
• Centre Speaker: 220 x 97 x 100 mm / 0.6 kg
• Surround Speaker: 90 x 131.5 x 108.5 mm / 0.5 kg
• Subwoofer: 230 x 393 x 331 mm / 4.6 kg

Manufacturer Site

• Pioneer
