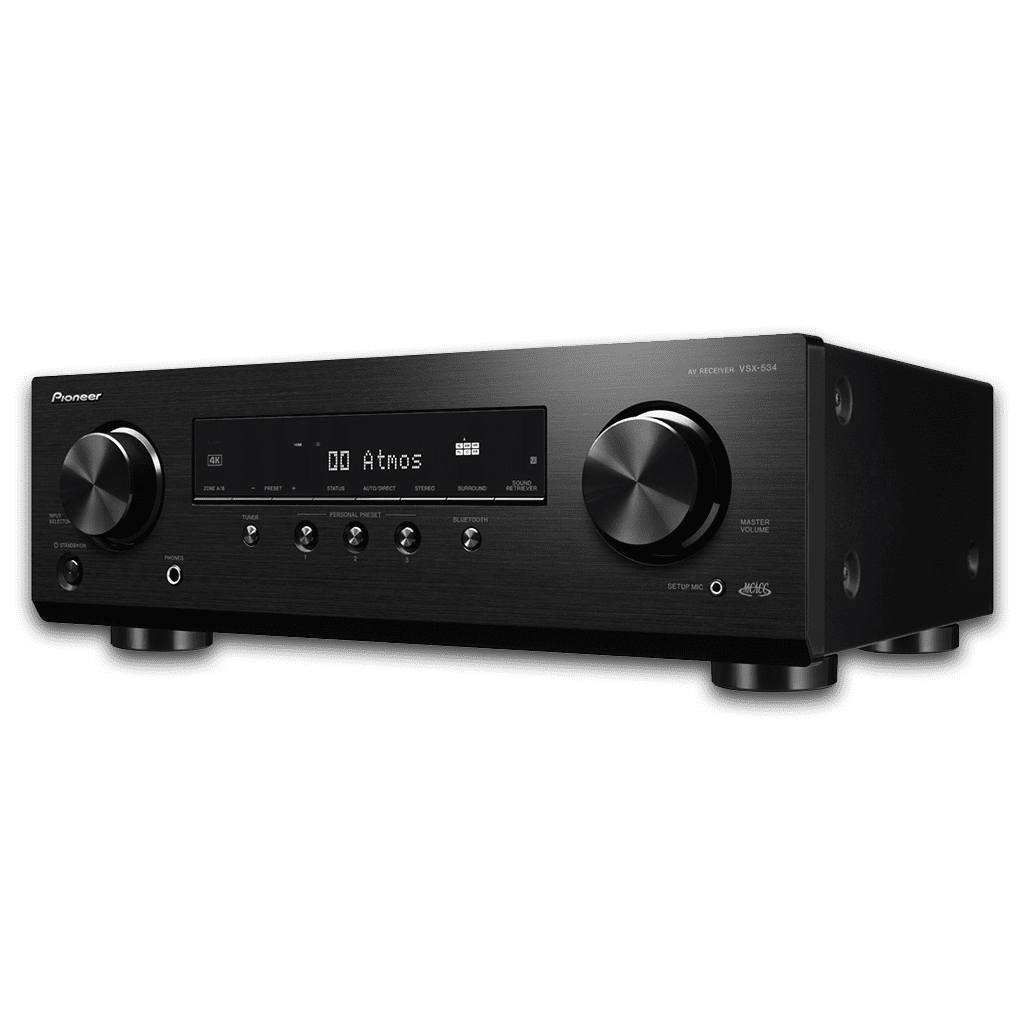

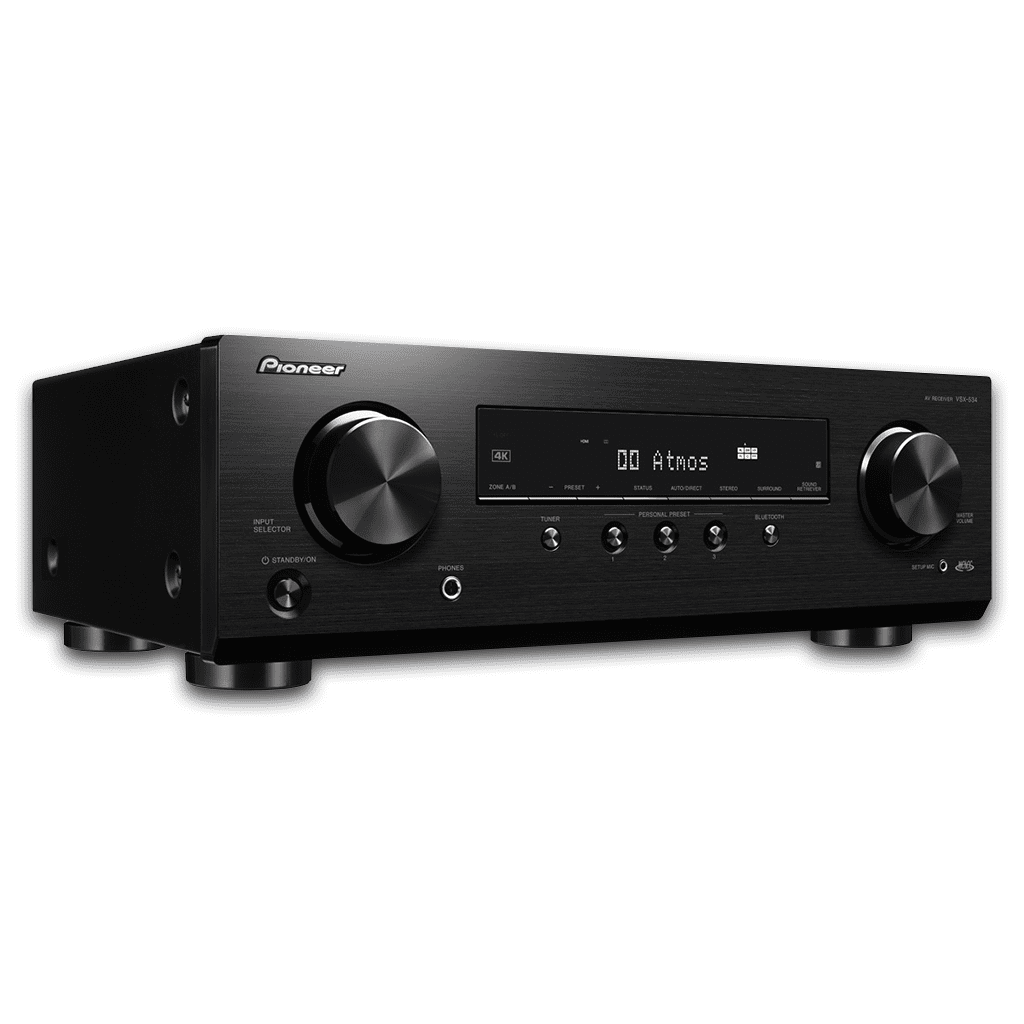

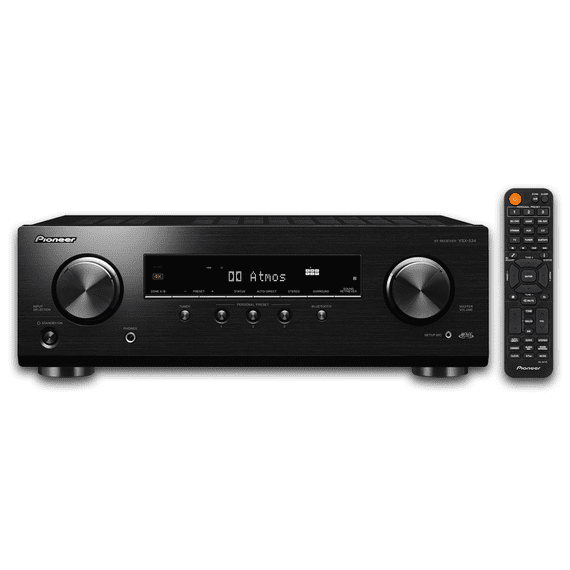

Pioneer VSX-534 Multi-Channel Amplifier | Audio Emotion
Pioneer VSX-534 Multi-Channel Amplifier | Audio Emotion
Pioneer VSX-534 Multi-Channel Amplifier | Audio Emotion
Pioneer VSX-534 Multi-Channel Amplifier | Audio Emotion

Product Description

The VSX-534 comes in a user-friendly new design, with 12 % slimmer size than the previous model for easy installation, 4K indicator, and Personal Preset and Bluetooth® Input buttons on the front panel. Immerse in enveloping sound with Dolby Atmos® and DTS:X® audio formats. Or even without height or surround speakers, you can still enjoy virtual 3D surround effect with Dolby Atmos Height Virtualizer* and DTS Virtual:X. The AV receiver is compatible with Ultra HD, HDR10, HLG, and Dolby Vision with support for HDCP 2.2, so you can fully appreciate premium content such as 4K videos.

Audio Features

  • Channels: 5
  • Amplification Type: Direct Energy
  • 150 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
  • 135 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)
  • Dolby Atmos®, Dolby Surround Upmixer
  • DTS:X®, DTS Neural:X® Upmixer
  • Reflex Optimizer
  • Dolby Atmos Height Virtualizer*
  • DTS Virtual:X
  • Dolby® TrueHD, Dolby Digital Plus
  • DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS-HD Express
  • DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch)
  • Digital Quad-Core 32-bit DSP (Cirrus Logic)
  • 384 kHz/32-bit D/A Conversion with AK4438 (AKM)
  • Audio Return Channel (ARC) on HDMI
  • MCACC Auto Room Tuning
    • Phase Control
    • Subwoofer EQ
  • Advanced Sound Retriever (2ch)
  • Advanced Surround Modes
    • Classical, Unplugged, Entertainment Show, Drama, Extended Stereo, Extended Mono, Front Stage Surround Advance

Video Features

  • Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
  • HDR10, HLG and BT.2020 Wide Colour Gamut Signal Passthrough
  • Dolby Vision Compatible
  • Ultra HD Upscaling (1080p to 4K)
  • 3D Ready (Blu-ray Disc, Broadcast, and Games)
  • Deep Colour (36-bit), x.v. Colour

Operating Features

  • Personal Preset
  • Dialog Enhancement
  • Bluetooth® Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
  • User-Friendly GUI with System Setup Menu
  • On-Screen Information for Audio/Video Status
  • Auto Power Off in HDMI Standby Through
  • AM/FM Tuner 40 Presets
  • Sleep Timer
  • User-Friendly Simple Remote Control

Connections

  • Front Terminals
    • MCACC Setup MIC In
    • Phones 1 Out

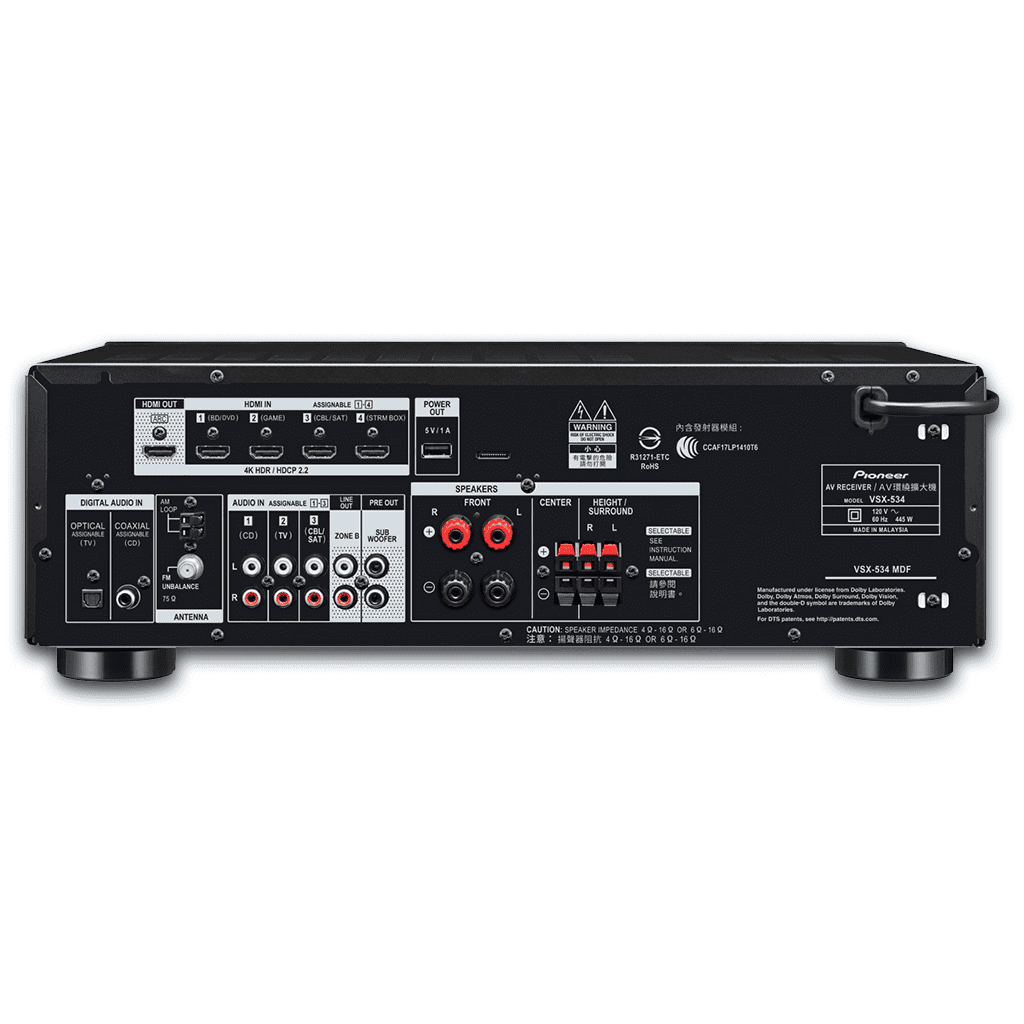

  • Rear Terminals
    • HDMI 4 In (4 Assignable)
    • HDMI 1 Out
    • USB 1 In for Streaming Dongles
    • Audio 3 In (Assignable)
    • Digital Coaxial 1 In (Assignable)
    • Digital Optical 1 In (Assignable)
    • Subwoofer 2 Pre Out
    • ZONE B Line Out for Wireless Headphones
    • Speaker 5 ch Out (FRONT, CENTER, SURROUND/HEIGHT)
    • FM/AM Antenna

Dimensions & Weight

  • Dimensions (W x H x D): 435 x 148 x 321 mm
  • Weight: 8 kg

Manufacturer Site
Read More

Specifications

Product Type
Multi-Channel Amplifier
Brand
Pioneer
Condition
New
Product Code
PNEER-VSX534
