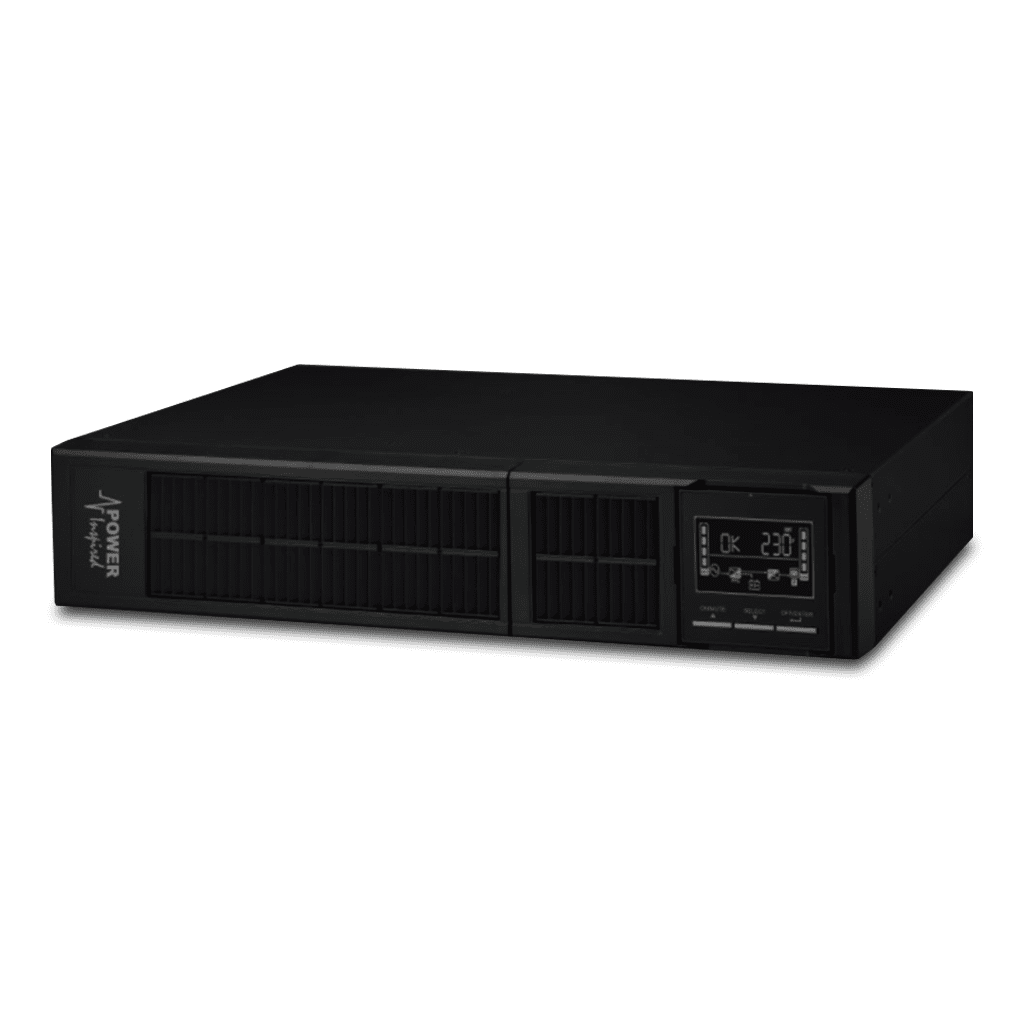

Perfect Sound Needs Perfect Regenerated Power!

The VFI1000QS provides a high quality stable output voltage waveform. Utilising Voltage and Frequency Independent (VFI) topology the output is fixed and unwavering regardless of the input mains voltage status. In addition protection is provided against the 9 recognised power quality problems.

The key with the VFI1000QS is that not only does it provide the power protection of an Audiophile grade Regenerator, it does so with the absolute minimum of noise. The Power Inspired ASC fan speed architecture only ramps up fan speed when conditions warrant it. At low loads and temperatures the fans are practically inaudible making the VFI1000Qs suitable for any application where noise is an issue.

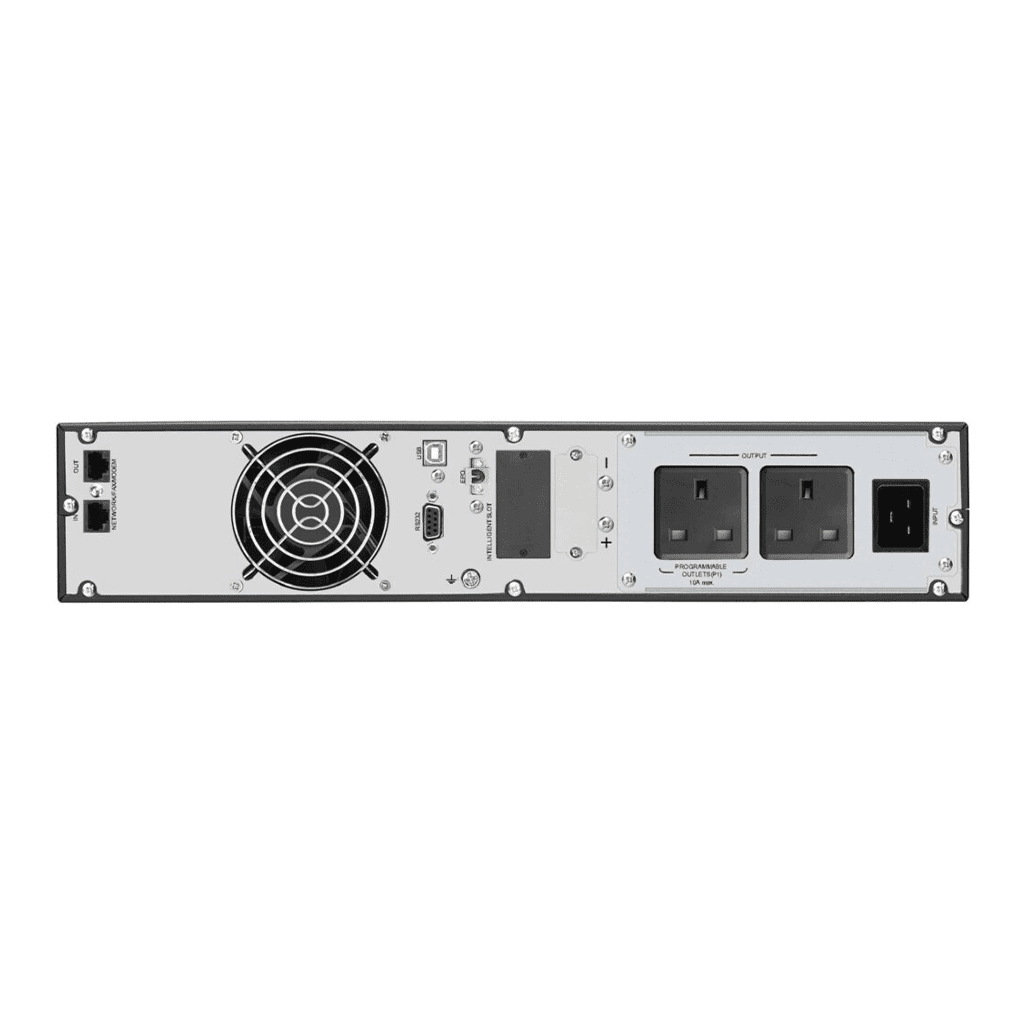

The rear panel consists of an IEC C20 input and two national (UK or Schuko) outlets. One outlet is programmable to shut off a set time after the unit enters battery mode. The other outlet will always have power as long as the unit is online. The VFI1000QS has an autonomy limitation setting which will switch off the unit after a set time on battery. This allows connected loads to be powered down in sequence (but not powered up in sequence).

An intelligent port is provided for the connection of an SNMP or relay cards. SNMP allows the unit to be monitored over a network and a relay allows connection to a remote alarm such as in Building Management Systems.

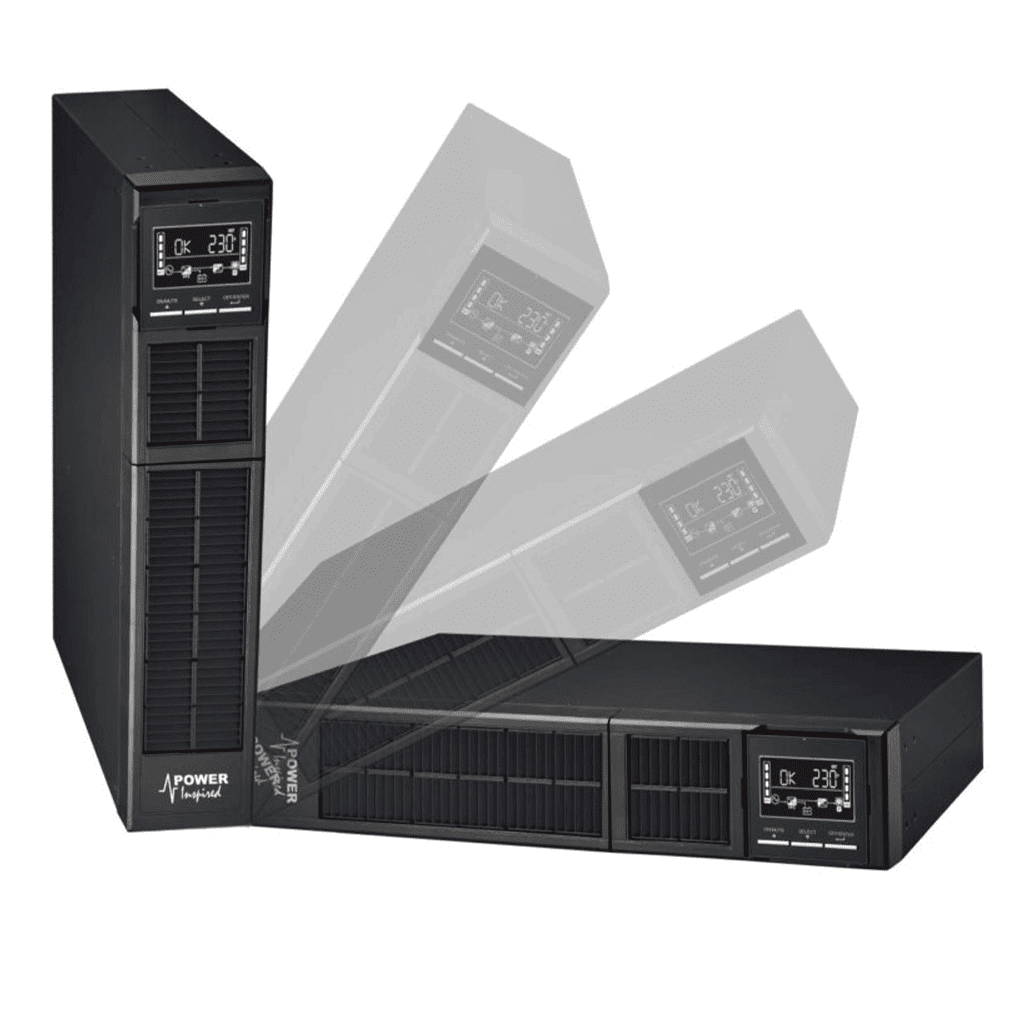

The VFI1000QS can be mounted either horizontally or vertically. Rack ears are provided in order to locate within a 19inch rack if required, plus vertical support brackets. The LCD can also be physically rotated for optimum viewing.

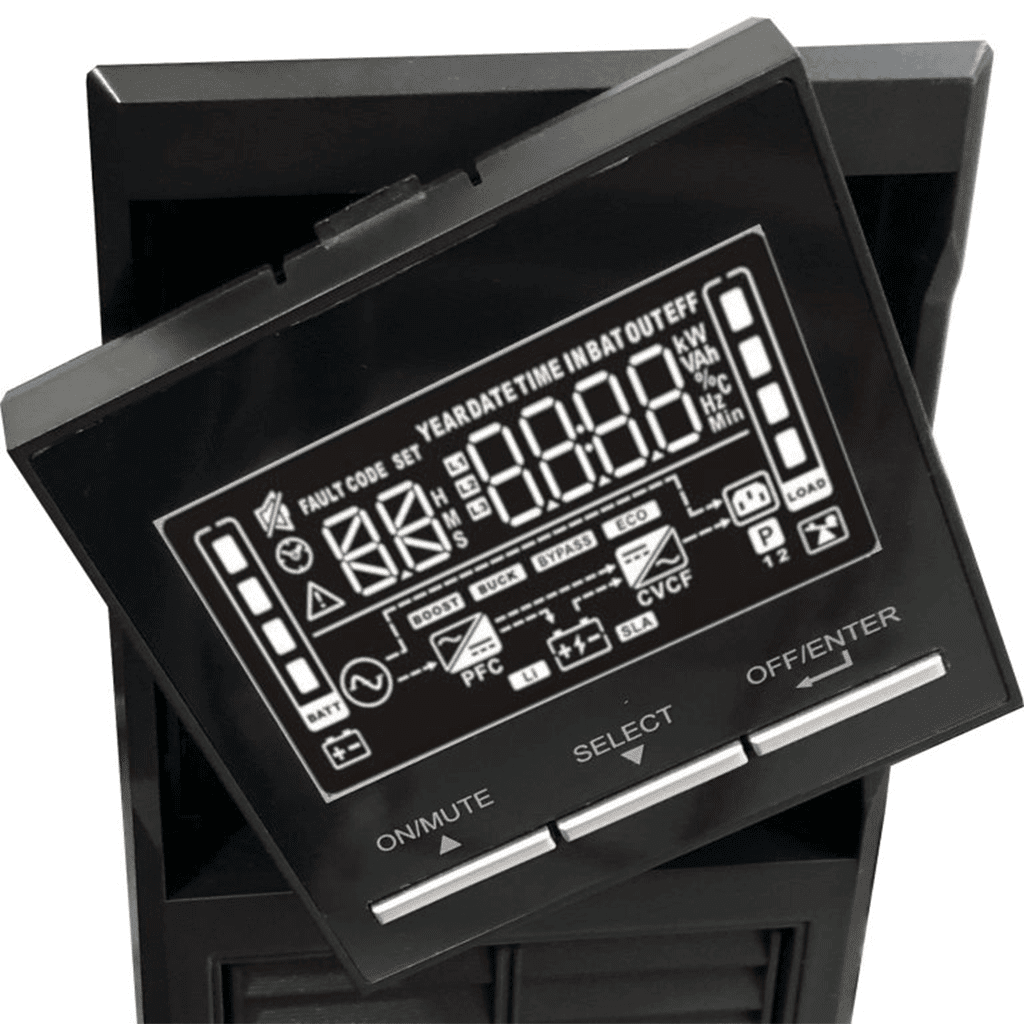

The LCD provided at a glance status of load and battery level, a graphical representation of power flow and UPS parameters. The LCD also allows the unit to be configured, including output voltage and frequency selection.

Full Brochure : here

Full Manual : here

Specifications :

• LCD automatic power off prevents light pollution.
• Power Inspireds ASC fan speed control. Fans speed up only as and when required.
• Adjustable output voltage to set equipment to preferred nominal voltage (from 200 to 240V).
• Frequency Conversion capability can set to a fixed 50 or 60Hz output regardless of input frequency.
• Intelligent Slot allows the fitting of SNMP cards for monitoring over a network or relay cards for connection to remote alarm panels or Building Management Systems.
• UK socket outlets for ease of connection.
• Load shed socket to allow for prioritising on critical equipment during outage.
• HiD compliant USB port allows the UPS to interface directly with operating system power management.
• In-situ swappable battery tray allows for ease of servicing.
• Extended run capability allows for adjustable charge current for connection to external battery packs for long runtime applications.
• Can be rackmounted, sat horizontally, or vertical with the supplied support brackets.
• 1000W continuous rating for the most demanding applications.
