Product Description

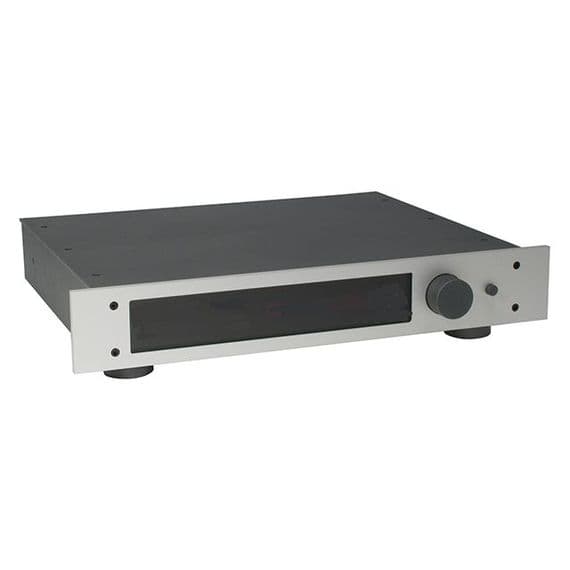

The RESTEK ESAT + satellite tuner is a high-quality digital radio for satellite reception.

In developing this unique satellite receiver for audio signals, RESTEK has been able to draw on its many years of experience developing world-renowned tuner legends. Tuners like the legendary FM.3003 once made RESTEK known worldwide.

  • Infrared system remote control
  • Dimmable multi function display
  • Menu-driven one-button operation
  • Symmetrical design
  • Analog XLR and RCA outputs
  • Digital RCA and Toslink output
  • Adjustable output voltage
  • Sandwich housing made of steel, bituminous, aluminium
  • Standby consumption < 0.5 W

Technical Specifications

Frequency range950 MHz to 2150 MHz
Input level-75 dBm to 10 dBm
Symbol rate1 MSym up 45 MSym
DecodingMPEG1 and MPEG2 layer 1 and 2
LMB modes14V / 18V max 400 mA, tone burst, 22 kHz tone and DiSEqC 1.x
D/A Converter24 bit BurrBrown and Delta-Sigma multi-bit converter
Resolution16 bit, 18 bit, 20 bit, 24-bit
Upsampling44.1, 48, 88.2, 96, 176.4 and 192 kHz
Frequency response3 Hz to 24 kHz +/-0,5 dB
Total harmonic distortion< 0.004%
Commercial signal dynamic range> 103 dB
Output level2V rms Max asymmetrically, 4 V rms Max symmetrically
Output impedance50 ohm unbalanced, 110 balanced
Dimensions483 x 90 x 365 mm
Weightapprox. 12 kg
Display colorRed, green or blue
Versions of the frontAcrylic mirror polished, black, champagne, or silvery matte brushed aluminium, chrome plated brass, as well as special designs on request
