Product Description

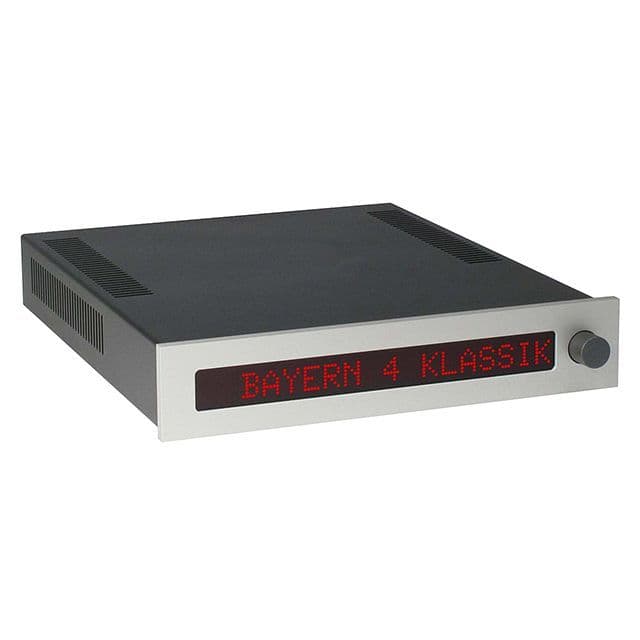

The RESTEK MSAT+ satellite tuner is a hi-fi radio that only serves the high-quality audio reception of DVB-S radio stations. Audio is not a waste product of a video receiver here. You do not need a screen to operate the MSAT+. With the MSAT+, RESTEK finally opens up the satellite transmission technology of radio programs to audiophiles as well.

Features of the satellite tuner MSAT+ from the M-Series
  • Infrared system remote control
  • Dimmable multi function display
  • Menu-driven one-button operation
  • Adjustable output level
  • Digital Toslink output
  • Digital RCA output
  • Analog RCA output
  • On and off volume control
  • German production

Technical Specifications

Frequency range950 MHz... 2150 MHz
Input level-75 dBm... 10 dBm
Symbol rate1MSym... 45 MSym
DecodingMPEG1 and MPEG2, layer 1 and 2
LNB mode14V / 18V Max 400 mA, tone burst, 22 kHz tone and DiSEqC 1.x, single-cable systems
Loop through-3dB max.
D/A Converter24 bit Burr Brown Delta-Sigma-multi bit converter
Resolution16, 18, 20 and 24 bits
Upsampling44.1, 48, 88.2, 96, 176.4 and 192 kHz
Frequency response3 Hz... 24 kHz ± 0. 5dB
Total harmonic distortion< 0.005%
Commercial signal dynamic range> 100 dB
Output level2V of rms max
Output current70 mA rms max
Output impedance50 ohm
Noise ratio> 100 dBA
Crosstalk attenuation> 100 dB
Dimensions (WxHxD)285 x 64 x 330 mm
Weightapprox. 3.9 kg
Display colorRed, green or blue
Versions of the frontAcrylic mirror polished, black, champagne, or silvery matte brushed aluminium, chrome plated brass, as well as special designs on request
