Product Description

  • Excellent condition
  • Original box, packing and accessories

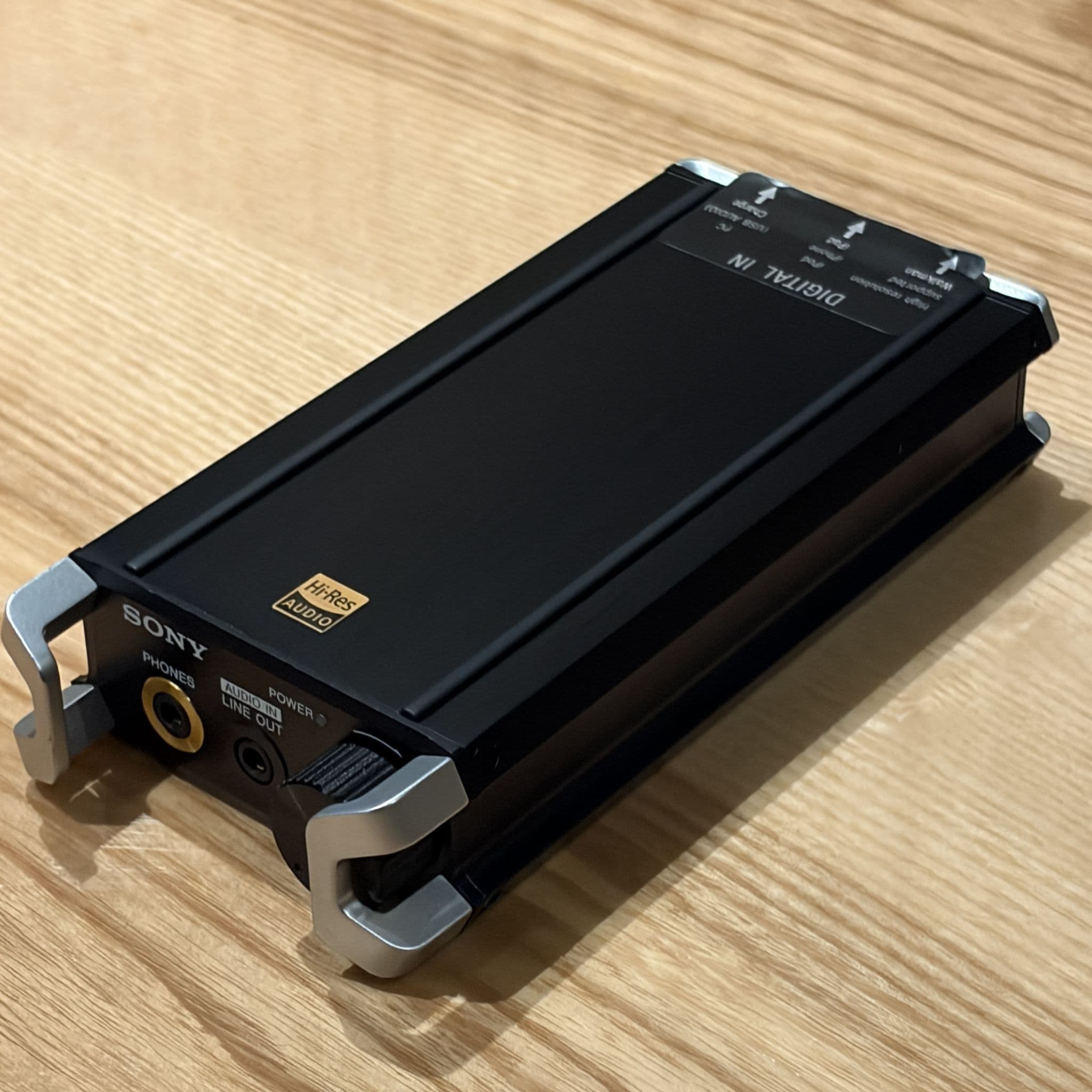

The PHA-2 Portable High-Resolution DAC and Headphone Amplifier from Sony allows you to play back high-resolution audio files, including PCM files up to 192kHz/24-bit and 2.8/5.6MHz DSD files from your computer or mobile device. It features a variety of digital inputs, including mini and micro-USB-B types for use with Sony's Walkman line, and a standard USB-A input for compatibility with iOS devices.

An aluminum housing helps protect the PHA-2, allowing it to be used on the go. The included silicone straps allow you to attach it directly to your portable device. Its built-in rechargeable battery provides up to 6.5 hours of life when used as a DAC and up to 17 hours when used solely as a headphone amplifier via its analog input. micro and mini USB-B cables are included, as well as a standard USB-A cable for charging.

Unlock Hi-Resolution Audio on the Go

The PHA-2 portable headphone amplifier allows you to playback high-resolution audio through your headphones. The PHA-2 can decode PCM audio sources at 192kHz/24-bit and DSD audio sources at 2.8 MHz / 5.6MHz formats

Flexible Connectivity

The PHA-2 is compatible with a wide array of digital devices. It has 3 USB inputs: standard A for iPod/iPhone/iPad devices, mini-B for hi-res Walkman and micro-B for PC or Mac. The PHA-2 also offers an analog input for connecting to most MP3 players, smartphones and other audio devices as well as a line out for external amp or active speakers

Jitter-Free Audio

The DAC features an asynchronous USB 2.0 clock that supports accurate DA conversions. The precision clock signal generator reduces timing inaccuracies when converting digital signals into analog waveforms. This maintains sound stage integrity and audio response, resulting in high-resolution audio performance with minimal noise and distortion

Amplification Circuits

The PCM1795 DAC samples PCM audio at 192kHz/24-bit & DSD audio at 2.8/5.6MHz. The LME49860 operational amp delivers signal & performance with low distortion, low noise & high slew rate. The high bandwidth TPA6120 headphone amp minimizes noise, delivering than 120 dB of dynamic range to ensure music is heard

Designed for Durability

The compact aluminum enclosure protects the delicate circuitry inside from outside interference and impacts while alloy bumpers protect the volume knob and headphone connectors from external impact. Recessed control switches reduce the chance of accidental access during playback

Flexible Headphone Support

A two position, side mounted gain switch allows you to optimize the PHA-2's output level to match varying headphone impedances from 8 to 600 Ohm

Rechargeable Lithium-ion Battery

The internal rechargeable battery provides approximately 6.5 hours of hi-resolution playback when connected digitally via USB input or up to 17 hours of playback when connected using the analog, 1/8" stereo input

Specifications

Amplifier

Impedance

8 to 600 Ω

Digital I/O

1x Micro USB-B for charging & PC
1x Mini USB-B for Sony Walkman
1x USB Standard Type A for iOS devices

Audio

Volume Control

Yes

Distortion

0.01% or less (1 kHz)

I/O

Inputs

Digital Inputs:
1x micro USB-B for charging & PC
1x mini USB-B for Sony Walkman
1x USB Standard Type A for iOS devices

Outputs

2x 1/8" (3.5 mm) 3-pole stereo mini-jack headphone outputs
1x 1/8" (3.5 mm) 3-pole stereo mini-jack audio in/line output

Power

Output Power

Maximum Output (when using built-in lithium-ion battery):
165 mW+165 mW (8 Ω, 10% distortion), approximate
90 mW+90 mW (32 Ω, 1% distortion), approximate
25 mW+25 mW (300 Ω, 10% distortion), approximate

Battery Type

Built-in Lithium ion rechargeable battery

Power Source

DC 3.7 V Built-in lithium-ion rechargeable battery

Battery Life

Analog connection: 17 hours, approximate
Digital connection: 6.5 hours, approximate

Indicators

Battery Indicator: Yes; Lights up green when power is turned on, flashes to indicate battery level

Battery Charging Time

Via USB: 7 hours from empty to full, approximate; red battery charge LED on during charge which turns off when fully charged. Unit will not charge during playback

Input Voltage

1 Vrms (audio in), maximum

Speaker

Frequency Range

10 Hz to 100 kHz (Audio In input)

General

Case

Aluminum chassis

Uses

Home and portable

Power On/Off

Rotary power/volume knob

Output Impedance

8 to 600 Ω

Dimensions & Weight

Dimensions

2.67 x 1.14 x 5.50" (68.00 x 29.00 x 140.00 mm)

Weight

4.2 oz (270.0 g)

Packaging Info

Package Weight

1.25 lb

Box Dimensions (LxWxH)

7 x 4.1 x 3.3"

Specifications

Product Type
Headphone Amplifier
Brand
Sony
Condition
Used
Product Code
SONY-PHA2-P
