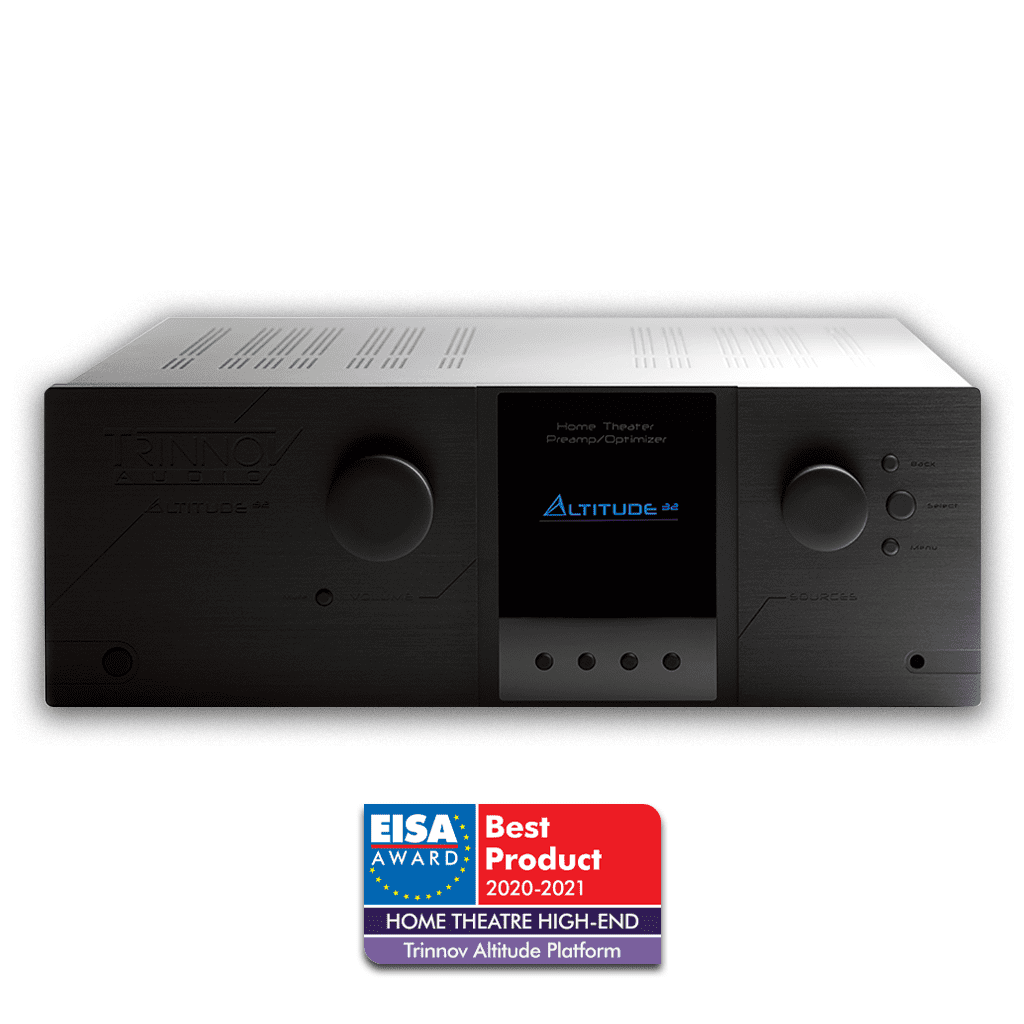

Trinnov shaped the Altitude32 to ensure undisputed leadership in 3D sound, leaving nothing to chance: high channel count, huge processing capabilities to meet the highest technical requirements, and exclusive, patented technologies to unleash the full potential of immersive sound, regardless of formats and speaker layouts.

UNLEASHED HDMI
The constant evolution of the HDMI standard creates many challenges for manufacturers and integrators. Trinnovs proprietary software platform not only lets you monitor and analyze all HDMI streams directly from your processor but also offers unique solutions to get beyond HDMI incompatibility issues.

STEP BY STEP WIZARD
The Altitude32 comes with Trinnov's own set-up software that facilitates the installation procedures for integrators. It guides them through a step-by-step process that defines how to best use available inputs and output channels as well as the desired speaker layouts. This new wizard greatly simplifies the initial set up procedure and calibration process.

ALL-INCLUSIVE DECODING PACKAGE
The standard version of the Altitude32 natively decodes Dolby Digital Plus®, Dolby TrueHD®, DTS Digital Surround® and DTS-HD Master Audio® With the 3D Audio optional package, you can experience a new world of immersive sound with the latest technologies by Dolby Laboratories®, DTS Inc®, and Auro Technologies®.

REMAPPING
Thanks to the 3D measurement capabilities of Trinnov's microphone, each speakers actual placement can precisely be localized in the room regarding distance, azimuth, and elevation. Knowing the intended placement of various sounds within the soundtrack (since we decoded it), Trinnov can then remap the sound objects from the theory of the soundtrack to the reality of your particular room, using the closest two or three speakers to create a phantom image of the sound where it should be. While 2D remapping deals mainly with the horizontal plane, 3D remapping will manage both azimuths and elevations.

UNIQUE BASS MANAGEMENT
Trinnov provides the most sophisticated solution on the market when it comes to managing low frequencies. With our intermediate bass management system you can, of course, specify how one or more subwoofers will reproduce the lower part of the spectrum for each channel. But it goes further: it even allows you to bass manage the low frequencies of a small speaker to the closest, more-capable speaker. It gives you complete control over crossover frequencies, filter type, slope, and even where the redirected bass will be reproduced

UNIQUE EXPERTISE IN HOME CINEMA INSTALLATION
Trinnov has been collaborating for years with some of the most respected brands and integrators in the field, allowing us to work on some of the most ambitious home cinema projects of the past ten years. With the publication of our own recommended speaker positions guide, we are offering our expertise to all integrators, in addition, to our recurrent CEDIA Lectures.

THE CEDIA DESIGNER
TCD is an online design tool that allows its users to create technically impeccable cinema designs, support documents, and aesthetic renders, within minutes.TCD software supports the complete line of our High-End products, letting you integrate the Altitude in the most complex speaker layouts in a matter of minutes.

REVOLUTIONARY HARDWARE PLATFORM
At the heart of this new generation of processor is a new approach to Digital Signal Processing, based on a revolutionary hardware architecture, highly scalable and easy to upgrade. Rather than using multiple DSP implemented in a complex and rigid architecture, Trinnov Audio has developed a multi-purpose processing platform, based on a single multi-core Intel processor to provide unrivaled processing capacities.

FUTURE PROOF
The Altitude32 is a scalable easy-to-upgrade solution. The entry model supports the latest HD Audio and Video formats while the highest model with 3D audio decoding option decodes and delivers up to 32 discrete channels of immersive audio content at an unprecedented level of quality, for whole new listening experience, leaving competition far behind.

3D AUDIO CODECS UPMIXERS & DECODERS

ALL VERSIONS
DOLBY ATMOS® NATIVE DECODING & UPMIX: optional
AURO-3D NATIVE DECODING AND UPMIX (AUROMATIC): optional
DTS:X® NATIVE DECODING AND UPMIX (DTS® NEURAL-X PROCESSING): optional

8-16 / 16-24 / 16-32 VERSIONS
FUTURE 3D DECODERS SOFTWARE UPGRADE): yes
DOLBY ATMOS® / AURO-3D® / DTS:X® MANUAL MAPPING: yes

OUTPUT CHANNEL MANAGEMENT

MAX PROCESSING CHANNELS
Altitude 32 8-8: 8
Altitude 32 8-16: 16
Altitude 32 16-24: 24
Altitude 32 16-32: 32

MAX OPTIMIZER CHANNELS
Altitude 32 8-8:
Altitude 32 8-16: 16
Altitude 32 16-24: 24
Altitude 32 16-32: 32

MAX NUMBER OF SUBWOOFERS
Altitude 32 8-8: 8
Altitude 32 8-16: 16
Altitude 32 16-24: 24
Altitude 32 16-32: 32

2-3-4 WAYS ACTIVE CROSSOVERS
Altitude 32 8-8: 4/2/2
Altitude 32 8-16: 8/5/4
Altitude 32 16-24: 12/8/6
Altitude 32 16-32: 16/10/8

FULL INPUT/OUTPUT MATRIX
Yes for all versions

CONFIGURATION PRESETS
29 for all versions

AUDIO PROCESSING

ADC Resolution / Sampling Rate: 24 bits/96 kHz
DAC Resolution / Sampling Rate: 24 bits/192 kHz
A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)
D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)
Analog Input Impedance: 20 kOhms / 10 kOhms
Reference Level: +18dBu @ 0dBFS (Balanced)
Clock / Jitter:Jitter attenuation > 50 dB above 100Hz)
Power Supply: Independent for audio and processing
Saftey Components: AntiPop relays on each output
Design & Assembly: Designed & Manufactured in France

SD/HD AUDIO

DOLBY DIGITAL®, DIGITAL PLUS®, TRUEHD®
DTS DIGITAL SURROUND®, HIGH-RES AUDIO®, HD MASTER AUDIO®
PCM up to 24 bits / 192 KHZ

ROON READY

The Altitude is fully compatible with Roon

HDMI BOARD

2 Outputs (Mirroring only)
1: HDMI 1.4/ HDCP 1.4
2: HDMI 2.0/ HDCP 2.0
7 Inputs (can be configured for HDMI 2.0/HDCP2.2)
1-3 HDMI 1.4 / HDCP 2.2
4-7 HDMI 2.0 / HDCP 2.2
Maximum Resolution 4K UHD on all inputs/outputs
Maximum Bandwith 18Gbps on all inputs
Frame rate 24/25/30/50/60

DIGITAL INPUTS

DCI COMPLIANT AES3: DB25
Altitude 32 8-8: 8-Ch (Upgradable to 16)
Altitude 32 8-16: 8-Ch (Upgradable to 16)
Altitude 32 16-24: 16-Ch
Altitude 32 16-32: 16-Ch

AES3 STEREO INPUTS: XLR
2 for all versions

S/PDIF INPUTS: RCA
4 for all versions

S/PDIF INPUTS: TOSLINK
4 for all versions

UPNP/DLNA COMPLIANT AUDIO RENDERER
Yes for all versions

DIGITAL OUTPUTS

OUTPUT CHANNEL: DB25
Altitude 32 8-8: 8
Altitude 32 8-16: 16
Altitude 32 16-24: 24
Altitude 32 16-32: 32

PCM 7.1 SPDIF IN (RCA & TOSLINK)
Yes for all versions

ANALOG OUTPUTS

OUTPUT CHANNEL: XLR
Altitude 32 8-8: 8
Altitude 32 8-16: 16
Altitude 32 16-24: 16
Altitude 32 16-32: 16

OUTPUT CHANNEL: DB25
Altitude 32 8-8: 8
Altitude 32 8-16: 16
Altitude 32 16-24: 24
Altitude 32 16-32: 32

STEREO OUTUT: RCA
1 for all versions

HEADPHONE OUTPUT: JACK 6.35
1 for all versions

ANALOG INPUTS

• Stereo: 2 x XLR
• Stereo: 3 x RCA
• 7.4: 1 x RCA
• 1 x 3D microphone Input

REMOTE CONTROL & AUTOMATION

• Crestron
• Control 4
• Savant
• RTI
• AMX

CHARACTERISTICS

• Chassis: 19 RACKMOUNT 3.5 U
• Power supply: 240V AC / 50-60 Hz. Option: 130V AC
• Consumption: 90 W max.
• Weight: 14.5kg
• Processor: Intel i7
• Data precision: 64 bits, floating point
• Cooling system: Custom heat sinks & silent fans
