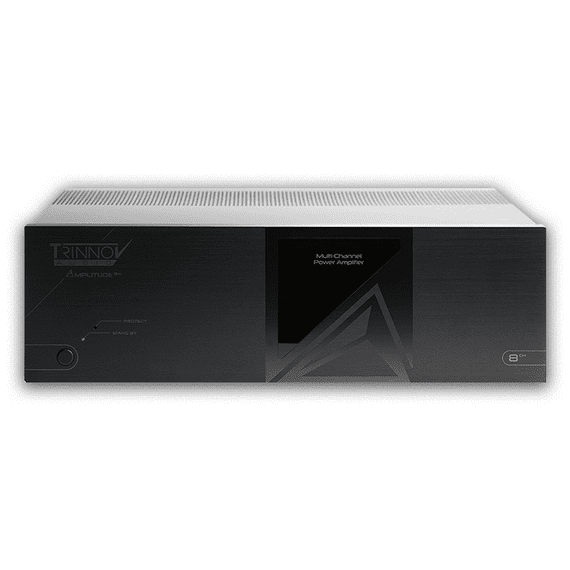

A perfect companion to our brand new Altitude16 and made with the most demanding users in mind, our new 8 channel amplifier brings intelligent power and pristine audio quality at a sensitive price point without any compromise in terms of design and build quality.
"The Sound is simply Extraordinary: for me, there is no question that this Trinnov Processor is absolutely fantastic!"
Golden Ear Technology (USA)
THE INDUSTRYS LOWEST-DISTORTION AND NOISE SPECIFICATIONS
The importance of this trait cannot be over-estimated in a theater that may have twenty or thirty speakers in a single room. If each of those speakers were producing even a small amount of noise, it would rapidly become noticeable and unacceptable. This scenario never arises with the Amplitude8m.
INTELLIGENT POWER
Our amplifiers use microprocessor control for turn-on delay and feature an automatic AC power recognition and configuration system. The amplifiers not only recognize whether they are hooked up to 117V or 230V nominal power, they automatically self-configure.
SLEEP CIRCUIT
The Amplitude8m incorporate a new sleep circuit. When the amplifier stays idle for a period of more than 10 minutes, power is removed from the output modules and a front-panel LED begins to flash. As soon as an input signal is detected again on any channel, normal playback operation resumes instantaneously.
Technical Specifications
AUDIO SPECIFICATIONS
Crosstalk: lower than -90dB.
Gain: 19dB Test window is 18.6 to 19.6dB, center is 19.1dB.
Frequency response: +0 , -0.5dB 20-20kHz
Power Output: 200 Watts RMS x 8 20-20kHz 0.05% THD+N 8. 300W X4 into 4.
INTELLIGENT POWER
Microprocessor: control for turn-on delay
Automatic: AC Voltage recognition and configuration
200 RMS/Channel: @ 8 on 8 Ch and 300 RMS/Channel @ 4 on any 4 Ch
Hypex N-Core: NC-500 Class D amplifier modules
PRISTINE DYNAMIC RENDERING
Intermodulation Distortion: Less than 0.05%
Signal to noise ratio: -120 dB referenced to rated output.
Frequency Response: +0, -.5 dB, 5 Hz to 20kHz, load independent
POWER SPECIFICATIONS
Power Requirement: min/max VAC / fuse: 117V AC (100V-132V) or 230V (200V-260V); 50/60 Hz Automatically selects proper voltage 20 Amp fuse for 120V, 12.5 Amp fuse for 230V.
Power Consumption: standby / idle /fully loaded: Less than 0.5W Standby. 80W Idle. 40W Sleep (no audio for 10 minutes). Full power (1kHz into 8ohms @ 200W) 2500VA, 2000W.
WEIGHT & DIMENSIONS
Weight: lbs / kg : 65 ½ 29.8kg
Dimensions: 17 x 5 7/8 x 15 1/2 (432 mm x 150 mm x 394 mm)
