Next UK Stock Due Q1 2023.
Typical rooms introduce up to 10dB of distortion in the frequency response. Furthermore, loudspeakers with a perfect impulse response dont exist. The Trinnovs ST2-HiFi solves this acoustic equation. It takes your high-end system to a whole new level of accuracy, from high-fidelity to acoustic-fidelity.
"We never had the opportunity to hear such musicality with any other digital acoustic correction. The richness and the clarity of reproduction made us rediscover the content selected. Everything finally seemed more true, as if our audio chain had been released from a burden. It may seem daring to say that the rendering of the Optimizer is a miracle, but were pretty damn close!"
Raphael Vogt, Stereoplay (Germany)
EASY SET-UP
Insert the system btw your pre-amplifier and the amplifiers, then connect the microphone
Run the step-by-step calibration wizard
Select one of the 5 automatically generated compensations
Change the target curves and other optimization parameters
Store up to 6 customizable profiles and 29 user-defined presets
POWERFUL ALGORITHMS
Multi-point measurements of all loudspeakers
Time-frequency analysis: the loudspeaker and the room are separately equalized
Automatic optimization of amplitude and phase response according to Target Curves
Intelligent active crossovers: automatic alignment of delays and gains for every driver
FLEXIBLE FINE TUNING
Comprehensive acoustical graphs
Optimization parameters: maximum boost, maximum attenuation
Manual FIR, parametric and graphic EQs
REMOTE CONTROL
From any PC, Mac, iPad, iPhone or Android phone (from a VNC client app, through the network)
Using an external monitor, mouse, and keyboard
Real-time control of the processor
Technical Specifications

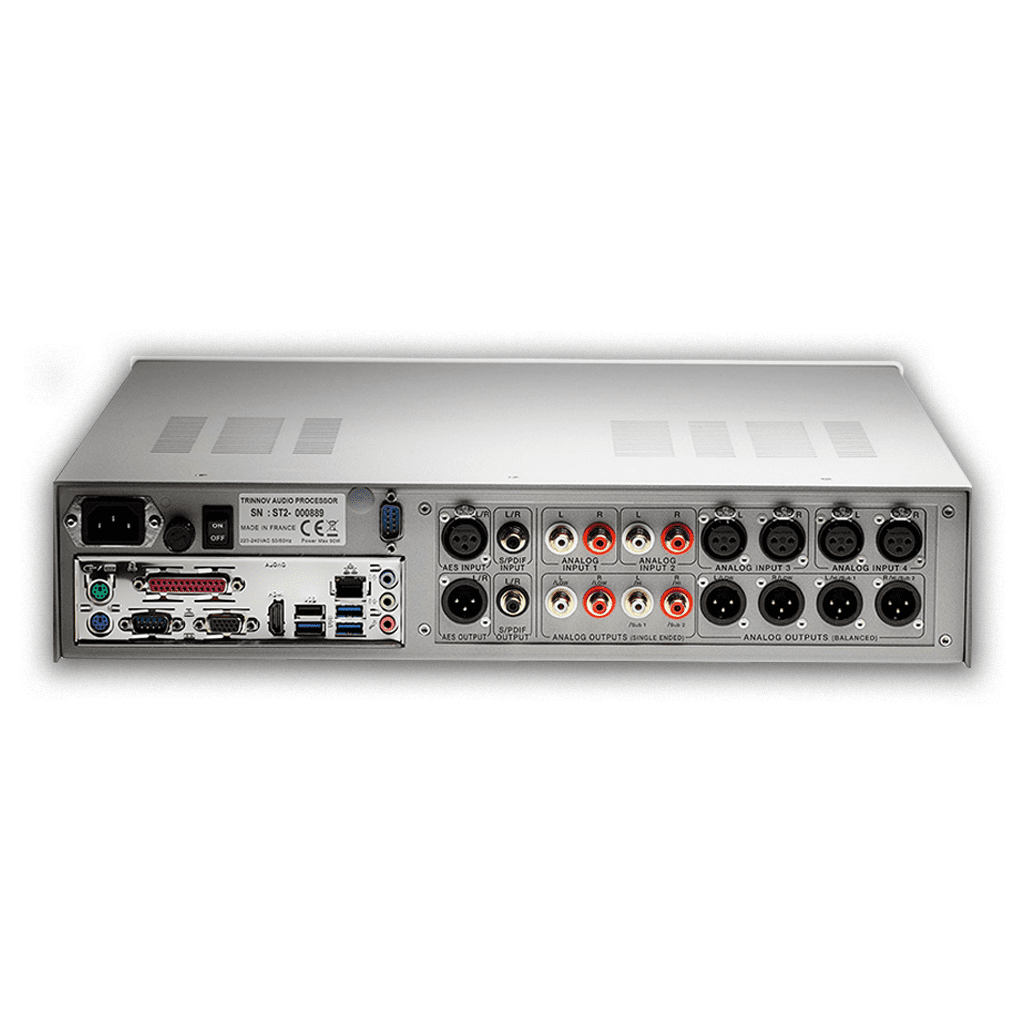

ANALOG I/O
4 single-ended channels inputs via 4 x cinch (10k Ohms)
4 single-ended channels line/phono inputs via 4 x cinch (100k Ohms)
4 balanced channels inputs via 4 x XLR (20k Ohms)
4 balanced channels outputs via 4 x XLR (100 Ohms)
DIGITAL I/O
AES I/O
2 channels inputs via 1 x XLR (110 Ohms)
2 channels outputs via 1 x XLR (110 Ohms)
SPDIF
2 channels inputs via 1 x cinch (75 Ohms)
2 channels outputs via 1 x cinch (75 Ohms)
AUDIOPHILE GRADE PERFORMANCE
Adc Resolution / Sampling Rate: 24 Bits/96 kHz
Dac Resolution / Sampling Rate: 24 Bits/192 kHz
A/D Signal-To-Noise Ratio: 119 Db (A-Weighted)
Thd+D Adc: -103 Db
D/A Signal-To-Noise Ratio: 118 Db (A-Weighted)
Thd+N Dac: -98 Db
Clock / Jitter: Variations Under 25Ps Are Recovered, Jitter Attenuation Superior To 50 Db Is Achieved
REMOTE ACCESS
The ST2 HiFi has a built-in Ethernet network port which allows it to connect to your local ethernet network. VNC is the easiest solution to control the ST2 HiFi through the network from any tablet, computer or smartphone. The optional Wi-Fi USB dongle adds wireless capabilities. It allows the ST2 HiFi to connect to your existing Wi-Fi network, or to act as a Wi-Fi access point (AP).
PROCESSING SECTION
AProcessor: Intel Dual-Core 1,8 GHz
Data Width: 64 Bits, Floating Point
RAM: 1 Go Ddr3
Storage: Flash Drive 1 Gb
Cooling System: Custom Heat Sinks + Additional Slow Fans
Maximum Number Of Processing Channels: 4 Channels At 96 kHz
PHYSICAL CHARACTERISTICS
Chassis:2U
Power supply:240V AC / 50-60 Hz. Option: 130V AC
Consumption:90 W max.
Weight:9.4kg
ENVIROMENTAL CONDITIONS
Operating: 0°C 40°C (32°F 104°F)
Humidity: 20% 80% relative humidity (without condensation)
