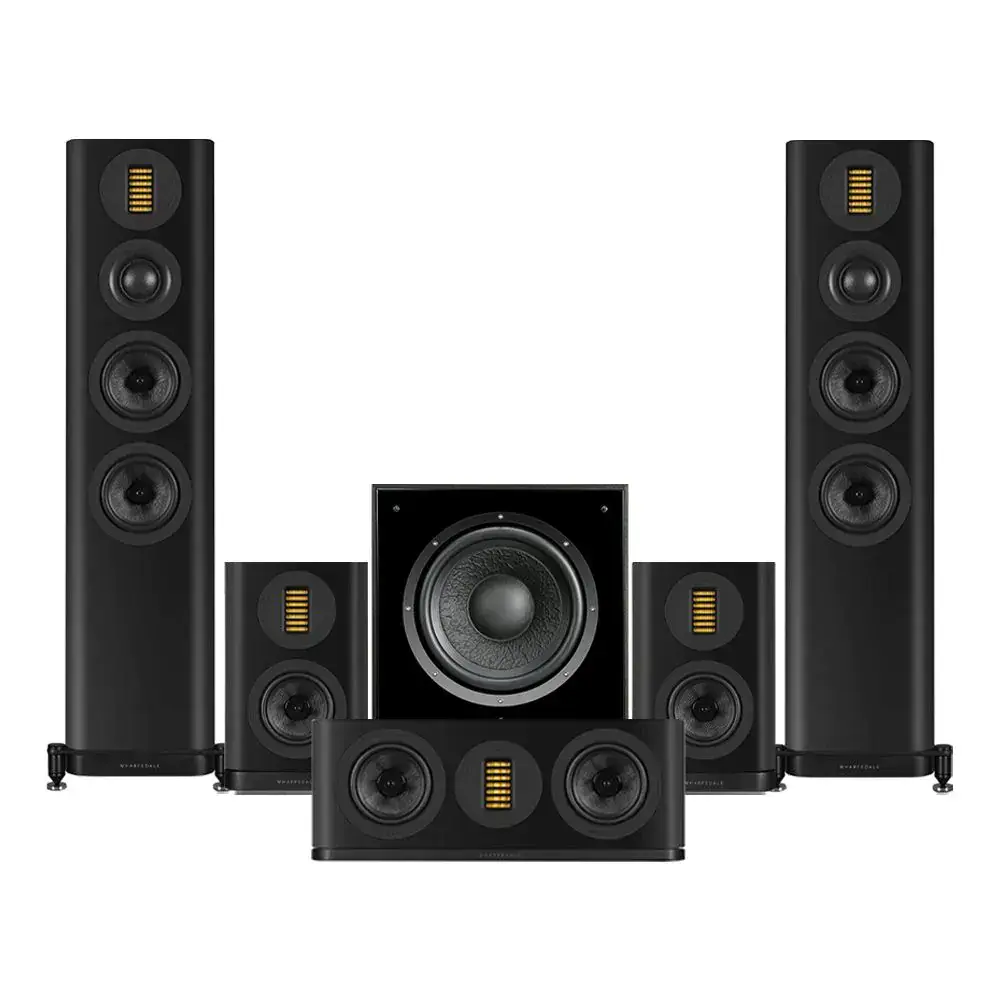

Wharfedale Evo 5.3 AV Speaker Pack | Audio Emotion

Product Description

Evo 5.3 AV 5.1 Pack

Evo 5.3 / 5.1 / 5.C

The EVO series concept originated from the same thorough research and development processes that characterised Wharfedale’s flagship Elysian project. It was specifically designed to bridge the gap between affordability and high-end performance. A notable feature of this series is the EVO AMT (Air Motion Transformer) high-frequency unit.

AMT Tweeter for Precision and Detail: In developing the new EVO 5 series, Wharfedale has further evolved the cutting-edge Air Motion Transformer (AMT). The AMT is a type of high-frequency driver used in speakers, known for its exceptional accuracy, speed, and low distortion compared to traditional dome treble units.

A new sound-absorbing material, Silentweave™, has been added to the cavity behind the diaphragm to reduce sound wave reflection and sound colouration inside the speaker. This material, a combination of cotton and felt fibre, was specially developed for the EVO 5 series.

Wharfedale’s proprietary Slot Loaded Profiled Port (SLPP) system efficiently channels the rear output of the bass drivers into the room. The specially designed slot at the speaker's base equalises pressure to the room, reducing turbulence while enhancing low-frequency performance.

SW-10

The SW series of subwoofers offer a level of performance previously unheard of in their class. Revolutionary drive units, amplifier modules and filter stages feature on every model. They strike the perfect balance between power and sound quality, offering remarkable sound pressure levels, yet retaining enough control to be considered audiophile in quality.

They now come with non-pressed paper cones for increase self-damping, improved transient impact and intern increased the structural rigidity of the cone itself. The centre vents are copper lined to reduce the magnetic distortion and improve the heat dissipation.

Still utilising the solid, well-engineered power amplifiers the SW subwoofers are optimised for high impact at low frequencies and are ideal for movies or music.

Specifications

Evo 5.3
Size and Weight
Dimensions (HxWxD(with grill+terminal)) 933mm x 266mm x 285mm(325mm)
Weight (each) 21.5kg


Model
General description 3-way floorstanding speaker


Design philosophy and core technology
Enclosure type Bass reflex
Transducer complement 3-way


ABR
Bass driver 5"(130mm) Black Woven Kevlar Cone x2
Midrange driver 2"(50mm) Soft Dome
Treble driver 35 x 70mm AMT


Full-range driver
AV shield No
Sensitivity (2.83V @ 1m) 88dB
Recommended amplifier power 25 - 150W


Peak power handling
Peak SPL 106dB
Nominal impedance 4Ω (8Ω compatible)
Minimum impedance 3.5Ω
Frequency response (+/-3dB) 46Hz – 24kHz
Bass extension (-6dB) 40Hz
Crossover frequency 825 Hz,4kHz
Cabinet Volume 35.4L
Evo 5.1
Size and Weight
Dimensions (HxWxD(with grill+terminal)) 340mm x 220mm x 285mm(325mm)
Weight (each) 8kg


Model
General description 2-way bookshelf speaker


Design philosophy and core technology
Enclosure type Bass reflex
Transducer complement 2-way


ABR
Bass driver 5"(130mm) Black Woven Kevlar Cone


Midrange driver
Bass driver 35 x 70mm AMT


Full-range driver
AV shield No
Sensitivity (2.83V @ 1m) 87dB
Recommended amplifier power 25 - 100W


Peak power handling
Peak SPL 98dB
Nominal impedance 4Ω (8Ω compatible)
Minimum impedance 3.4Ω
Frequency response (+/-3dB) 56Hz – 24kHz
Bass extension (-6dB) 46Hz
Crossover frequency 2.7kHz
Cabinet Volume 11.5L
Evo 5.C
Size and Weight
Dimensions (HxWxD(with grill)) 188mm x 520mm x 265mm(305mm)
Weight 12.5kg


Model
General description 2-way centre speaker


Design philosophy and core technology
Enclosure type Bass reflex
Transducer complement 2-way


ABR
Bass driver 5"(130mm) Black Woven Kevlar Cone x2


Midrange driver
Treble driver 35 x 70mm AMT


Full-range driver
AV shield No
Sensitivity (2.83V @ 1m) 89dB
Recommended amplifier power 25 – 120W


Peak power handling
Peak SPL 103dB
Nominal impedance 4Ω (8Ω compatible)
Minimum impedance 4.1Ω
Frequency response (+/-3dB) 56Hz – 24kHz
Bass extension (-6dB) 49Hz
Crossover frequency 2.3kHz
Cabinet Volume 14L
SW-10
Drive Units 1 x (10") 250mm cone long-throw
Frequency Response 40 - 120Hz ±3dB
Amplifier Power Output 200W
Peak Power Output 350W
Line Input Sensitivity 200mv for maximum output
Crossover Range 30 - 150Hz
Inputs Stereo Line In (2 x RCA Phono)
Mono (LFE) Line In (RCA Phono)
Input Impedance Line Input 10kΩ
LFE 5kΩ
Signal-to-noise ratio (S/N) ≥85dB
Avg. Max Output @1m 110dB
Features Phase inversion, Auto on-off
Dimensions Height: (358+58)mm(with feet)
Width: 336mm
Depth: (366+15)mm
Net weight 15kg
Accessories IEC power cord
Read More

Specifications

Product Type
Loudspeakers
Speaker Type
Bookshelf
Brand
Wharfedale
Condition
New
Product Code
WDALE-EVO5.3AV-B
