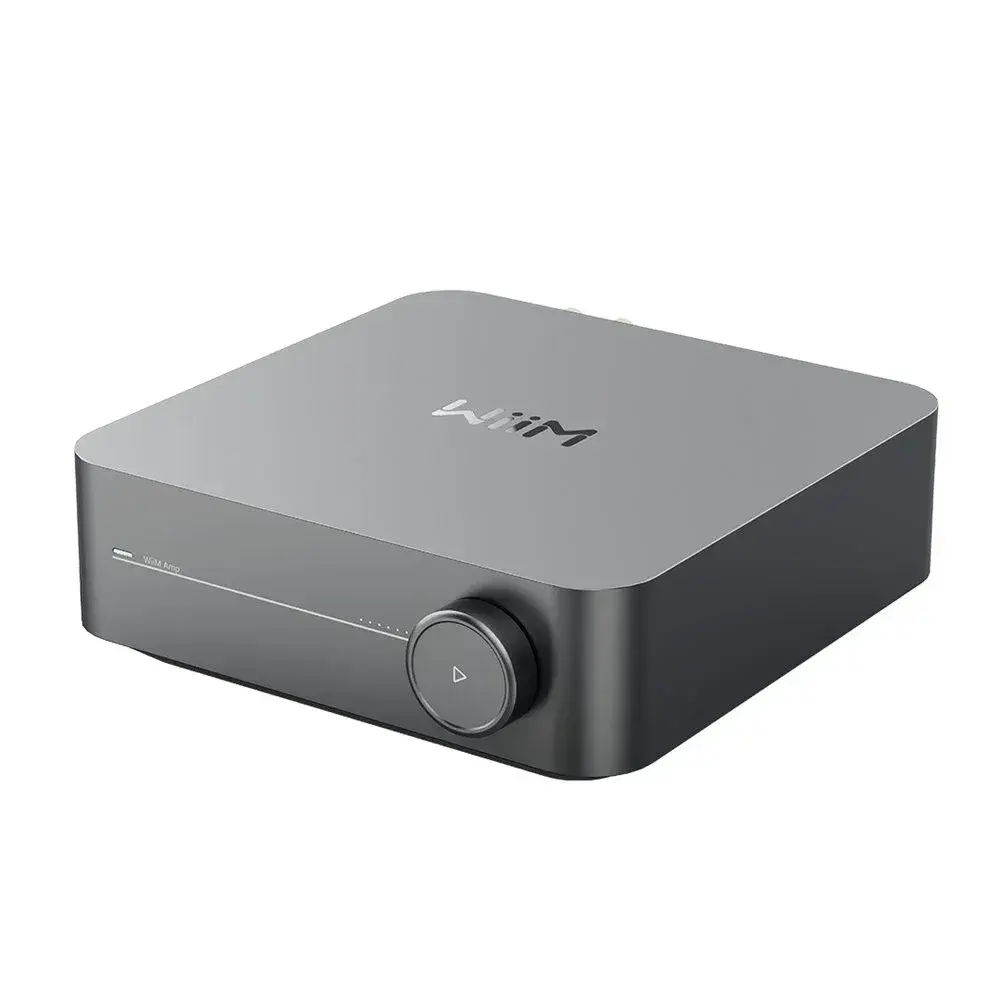

An impressive wireless streamer incorporated with a high-powered integrated amplifier, providing the ultimate solution to your streaming requirements.
- Spotify Connect device for easy playback from the Spotify app
- Apple AirPlay 2 support
- HDMI-ARC connectivity for seamless connection with a TV
- Remote control included
- Supplied with remote control
- Roon Ready support planned (with future update)
- WiiM Home application available
GO HI-RES, JUST ADD SPEAKERS
WiiM Amp offers hi-res audio playback up to 24-bit, 192kHz without resampling and with gapless playback support. Thanks to its built-in integrated amplifier, the WiiM Amp is designed to connect directly to a pair of traditional loudspeakers for high-quality sound without any complicated set-up.
SMALL YET MIGHTY
Housed in a sleek aluminium shell, the compact WiiM Amp offers versatile placement options. Inside, premium components and innovative circuitry ensure robust, crystal-clear amplification. A custom-designed heatsink ensures optimal thermal performance. Don't let its compact design fool you it packs 60 Watts per channel (at 8) for easy pairing with a wide variety of speakers.
EASY TO SETUP
The WiiM Amp will automatically pop up in your WiiM Home app. The in-app guide will thereafter aid you in the rest of the setup, and you will be able to start streaming music in less than 2 minutes. Connection to your speakers is via high-quality output terminals, and you can expand your system further with the additional subwoofer output.
HOME THEATRE MAGIC, SIMPLIFIED
Elevate your entertainment experience effortlessly with the WiiM Amp's HDMI-ARC port. Plug in your TV and immerse yourself in rich stereo sound for shows, movies, and video games. The subwoofer output with automatic bass management further elevates sound quality for that real home cinema experience.
USB HOST
Plug a USB stick into the WiiM Amp and transform your home into a personal concert hall. Stream your digital music collection in studio-quality to multiple WiiM devices throughout your space. The WiiM Amp not only indexes your music library but also serves as an always-on media server, making your personal tunes accessible anytime, anywhere in your home.
PART OF YOUR ECOSYSTEM
WiiM Amp supports Spotify Connect, AirPlay 2, Chromecast Audio, Works with Alexa, Tidal Connect, DLNA playback and Roon Ready - so you can cast to it using your existing services, as well as using the WiiM Home app to open up a wider world of music.
PLAY MUSIC EVERYWHERE
Building a wireless multiroom system has never been easier. Group WiiM Amp with other AirPlay 2 speakers, Alexa-enabled devices, Google Home devices or any other WiiM streamers to have a multi-room/synchronized audio experience.
WIIM HOME
All features of the WiiM Amp are controllable through the WiiM Home app. So whether you want to tweak the EQ, set up a new preset or find your favourite radio station anywhere in the world - everything is made effortlessly simple with WiiM.
Technical Specifications
| SUPPORTED STREAMING SERVICES | Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer and SoundCloud Supported |
| APPLE AIRPLAY SUPPORT | AirPlay 2 |
| MQA COMPATIBILITY | Partial MQA Support |
| ROON SUPPORT | Roon Ready |
| NETWORK CONNECTIVITY | Wi-Fi & Ethernet |
| AMPLIFIER CLASS | D |
| POWER OUTPUT (4) | 120 W |
| POWER OUTPUT (8) | 60 W |
| TONE CONTROL | Adaptive EQ and Graphic Equaliser built-in |
| SIGNAL TO NOISE RATIO | 98 dB |
| RCA LINE INPUT(S) | Y |
| BLUETOOTH INPUT | Y |
| BLUETOOTH VERSION | 5.1 |
| HDMI INPUT(S) | ARC Input |
| DAC CHIP | AKM 4493SEQ |
| FILE LIMIT SUPPORT (PCM) | 32-bit, 768kHz |
| FILE LIMIT SUPPORT (DSD) | DSD512 |
| SUBWOOFER OUTPUT(S) | Y |
| APP CONTROL | WiiM Home |
| DIMENSIONS (W X H X D) | 190X190X63 mm |
| WEIGHT | 1.84 kg |

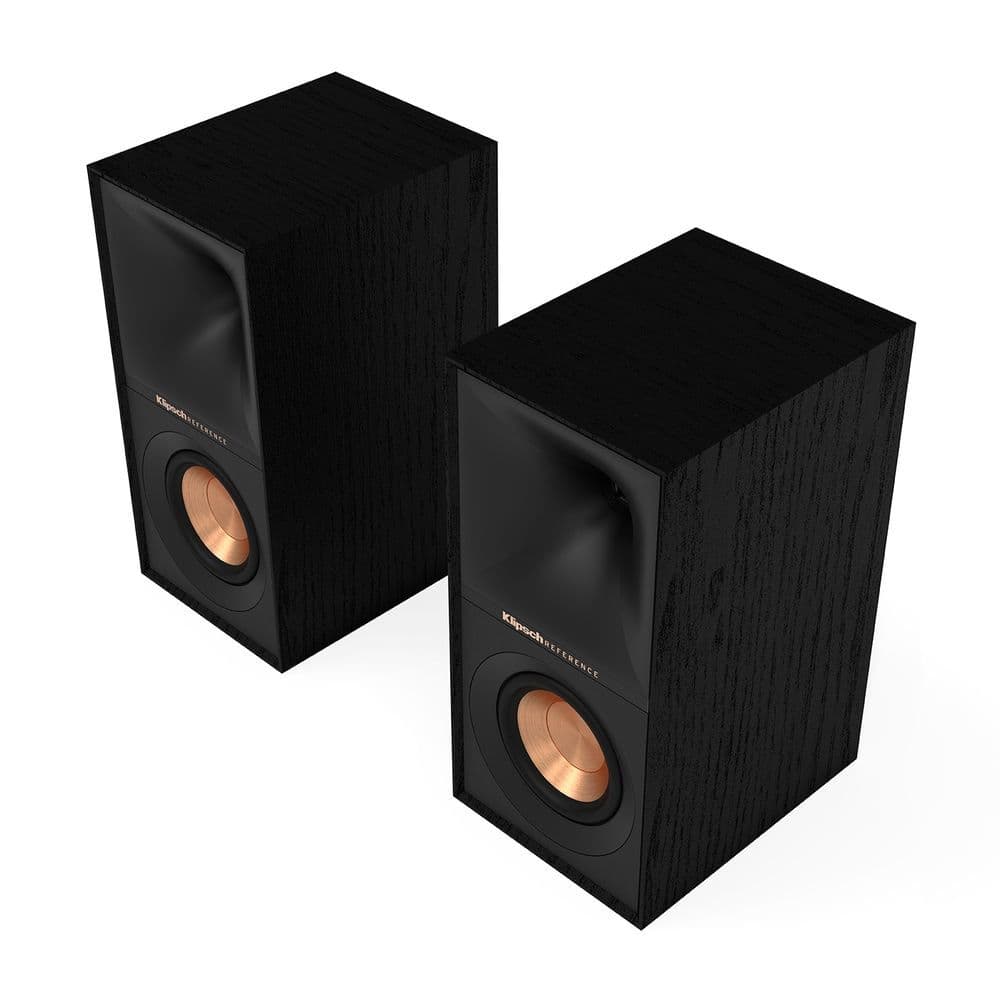

Kilpsch R-40M Bookshelf Speakers
Linear Travel Suspension (Lts) Aluminum Tweeter With Kapton Suspension
The exclusive Linear Travel Suspension (LTS) minimizes distortion for enhanced, detailed performances. Aluminum is an extremely light and rigid material used in the tweeter assembly to provide high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making it a core component of some of the best speakers in the world.
Spun-copper Thermoformed Crystalline Polymer (Tcp) Woofers
Utilizing trickle-down technology from Klipschs highly acclaimed Reference Premiere series, the TCP woofers have steeper angling of the cones for a smoother response and improved accuracy and transparency. The additional ribbing increases the overall rigidity for less cone breakup at higher frequencies.
Sleek, Modern Appearance
Hidden fasteners, edge-to-edge horn, and low-profile magnetic grilles give the speakers a polished, modern appearance.
Mdf Cabinet With Scratch-resistant, Textured Wood Grain Vinyl
Stylish aesthetic with absolute durability that results in a seamless integration into any décor.
High Quality Cabinet Design
Reinforced 3/4 MDF construction with an all-new bracing design reduces cabinet vibration for less audible coloration and improved sonic accuracy.
Technical Specifications
| Frequency response | 71Hz - 21kHz +/- 3dB |
| Sensitivity | 91 dB (In-Room) |
| Power handling (CONT/PEAK) | 50W/200W |
| Nominal impedance | 8 ohms Compatible |
| Crossover frequency | 1,770 Hz |
| High-frequency driver | 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn |
| Enclosure material | MDF |
| Enclosure type | Bass-Reflex via rear-firing Tractrix®ports |
| Inputs | Single Gold Plated Binding Posts |
| Height | 11.7" (298 mm) |
| Width | 5.8" (146 mm) |
| Depth | 8.5" (216 mm) |
| Product weight LBS (KG) | 7 lbs (3.2 kg) |
| Finish | Black Textured Wood Grain Vinyl |
